Quick Details
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360mm
-
Max. Turned Length (mm):
-
2850 mm
-
Spindle Motor Power(kW):
-
4
-
Year:
-
new
-
Place of Origin:
-
China
-
Brand Name:
-
BRTC
-
Model Number:
-
c6260C
-
Voltage:
-
220V 380V 415V
-
Dimension(L*W*H):
-
225*115*175cm
-
Weight (KG):
-
2050 KG
-
Name:
-
Lathe Machine
-
Machine Type:
-
Conventional Lathe
-
Product Name:
-
Manual Metal Lathe Machine
-
Keyword:
-
METAL PROCESSING HORIZONTAL LATHE MACHINE
-
Product type:
-
Flat Bed Lathe
-
Precision:
-
High Precision Machine
-
CNC or Not:
-
Nomal
-
Automatic Grade:
-
Normal
-
Function:
-
Machining Metal
-
Key words:
-
Metal Universal Lathe Machine
Quick Details
-
Max. Length of Workpiece (mm):
-
3000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360mm
-
Max. Turned Length (mm):
-
2850 mm
-
Spindle Motor Power(kW):
-
4
-
Year:
-
new
-
Place of Origin:
-
China
-
Brand Name:
-
BRTC
-
Model Number:
-
c6260C
-
Voltage:
-
220V 380V 415V
-
Dimension(L*W*H):
-
225*115*175cm
-
Weight (KG):
-
2050 KG
-
Name:
-
Lathe Machine
-
Machine Type:
-
Conventional Lathe
-
Product Name:
-
Manual Metal Lathe Machine
-
Keyword:
-
METAL PROCESSING HORIZONTAL LATHE MACHINE
-
Product type:
-
Flat Bed Lathe
-
Precision:
-
High Precision Machine
-
CNC or Not:
-
Nomal
-
Automatic Grade:
-
Normal
-
Function:
-
Machining Metal
-
Key words:
-
Metal Universal Lathe Machine
Hot Products Recommendation
Product Description

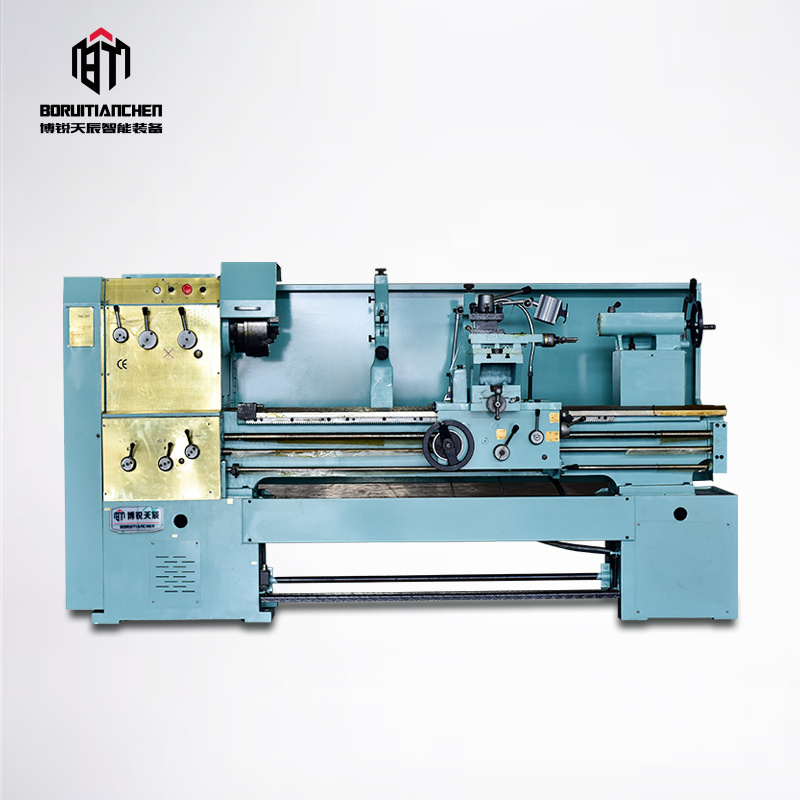

CC series high speed precision manual horizontal lathe
Feature:
♦ Guideways ultrasonic frequency quenched to ensure a long service life
♦ Guideways ground to ensure high accuracy
♦ Spindle bore 52mm and the spindle nose conforms to ISO-C6
♦ Gears in headstock precisely ground to reduce noise
♦ Feeding box well sealed to eliminate leakage
♦ Kinds of threads
♦ Tailstock locked by thread or camlock
♦ Electric system is reliable and safe
♦ Electromagnetic brake at users option
♦ Guideways ground to ensure high accuracy
♦ Spindle bore 52mm and the spindle nose conforms to ISO-C6
♦ Gears in headstock precisely ground to reduce noise
♦ Feeding box well sealed to eliminate leakage
♦ Kinds of threads
♦ Tailstock locked by thread or camlock
♦ Electric system is reliable and safe
♦ Electromagnetic brake at users option
Specification
|
Model
|
|
C6236C
|
C6240C
|
C6250C
|
C6260C
|
|||
|
CAPACITY
|
Max.swing over bed
|
360mm
|
400mm
|
500mm
|
600mm
|
|||
|
|
Max.swing over cross slide
|
190mm
|
230mm
|
330mm
|
330mm
|
|||
|
|
Max.swing over gap
|
520mm
|
560mm
|
660mm
|
760mm
|
|||
|
|
Effective length of gap
|
200mm
|
|
|
|
|||
|
|
Center Distance
|
750\1000\1500\2000mm
|
|
|
|
|||
|
|
Bed Width
|
360mm
|
|
|
|
|||
|
HEADSTOCK
|
Spindle hole
|
52mm
|
|
|
|
|||
|
|
Spindle nose
|
ISO-C6
|
|
|
|
|||
|
|
Spindle taper
|
MT6
|
|
|
|
|||
|
|
Spindle speed(Number)
|
(9steps)40-1400rpm
|
|
|
|
|||
|
FEEDS
|
Longitudinal feeds range
|
0.0832-4.66mm/r
|
|
|
|
|||
|
|
Cross feeds range
|
0.048-2.69mm/r
|
|
|
|
|||
|
|
Metric threads range
|
19kinds 0.25-14mm
|
|
|
|
|||
|
|
Inch threads range
|
49kinds 2-40inch
|
|
|
|
|||
|
|
Moudle threads range
|
11kinds 0.5-3.5mπ
|
|
|
|
|||
|
CARRIAGE
|
Max.travel of top slide
|
95mm
|
|
|
|
|||
|
|
Max.travel of cross slide
|
180mm
|
200mm
|
250mm
|
250mm
|
|||
|
|
Max.size of toolshank
|
20*20mm
|
|
|
|
|||
|
TAILSTOCK
|
Dia.of tailstock sleeve
|
65mm
|
|
|
|
|||
|
|
Taper of tailstock sleeve
|
MT4
|
|
|
|
|||
|
|
Max.travel of tailstock
|
140mm
|
|
|
|
|||
|
MOTOR
|
Main drive motor
|
4KW
|
|
5.5KW
|
7.5KW
|
|||
|
|
Coolant pump motor
|
125W
|
|
|
|
|||
|
PACKING
L*W*H |
Center Distance(750mm)
|
225*115*175cm
|
|
|
|
|||
|
|
Center Distance(1000mm)
|
245*115*175cm
|
|
|
|
|||
|
|
Center Distance(1500mm)
|
295*115*175cm
|
|
|
|
|||
|
|
Center Distance(2000mm)
|
345*115*175cm
|
|
|
|
|||
|
N.W/G.W
|
Center Distance(750mm)
|
1350/1750kg
|
1400/1800kg
|
1500/1900kg
|
1600/2000kg
|
|||
|
|
Center Distance(1000mm)
|
1450/1850kg
|
1500/1900kg
|
1600/2000kg
|
1700/2100kg
|
|||
|
|
Center Distance(1500mm)
|
1600/2000kg
|
1650/2050kg
|
1750/2150kg
|
1900/2300kg
|
|||
|
|
Center Distance(2000mm)
|
1750/2150kg
|
1800/2200kg
|
1900/2300kg
|
2050/2450kg
|
|||
STANDARD ACCESSORIES
Work lampCoolant system
Thread-cutting dial
3-jaw chuck(Φ200mm)
Longitudinal touch stop
Full-length splash guard
Foot brake and brake ribbon .
Thread-cutting dial
3-jaw chuck(Φ200mm)
Longitudinal touch stop
Full-length splash guard
Foot brake and brake ribbon .
Change gears
Oil gunPaddingsOne whole set spanners
Dead centre and centre sleeve
Operation manual and test certificate
Oil gunPaddingsOne whole set spanners
Dead centre and centre sleeve
Operation manual and test certificate
SPECIAL USE ACCESSORIES(OPTIONAL PIRCE)
Drill chuck set
Live centre(MT4)
Face plate and Drive plate
Quick change tool post
Taper cutting function
Steady rest & follow rest
Live centre(MT4)
Face plate and Drive plate
Quick change tool post
Taper cutting function
Steady rest & follow rest
4-jaw chuck(250mm)
2axis or 3axis Digital readouts(SINO) Cutting tool holders set(7pcs or 9pcs)
Rapid travel(standard for 2000mm length)
CE-conformity(Chuck guard,Toolpost guard and leadscrew guard)
2axis or 3axis Digital readouts(SINO) Cutting tool holders set(7pcs or 9pcs)
Rapid travel(standard for 2000mm length)
CE-conformity(Chuck guard,Toolpost guard and leadscrew guard)
