Normally Open AC Current Sensing Switch Current On-off Control Switch Transformer Substation1-200A Relay

Normally Open AC Current Sensing Switch Current On-off Control Switch Transformer Substation1-200A Relay

FOB Reference Price: Get Latest Price

≥1 Pieces

US $13.5

≥200 Pieces

US $13

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

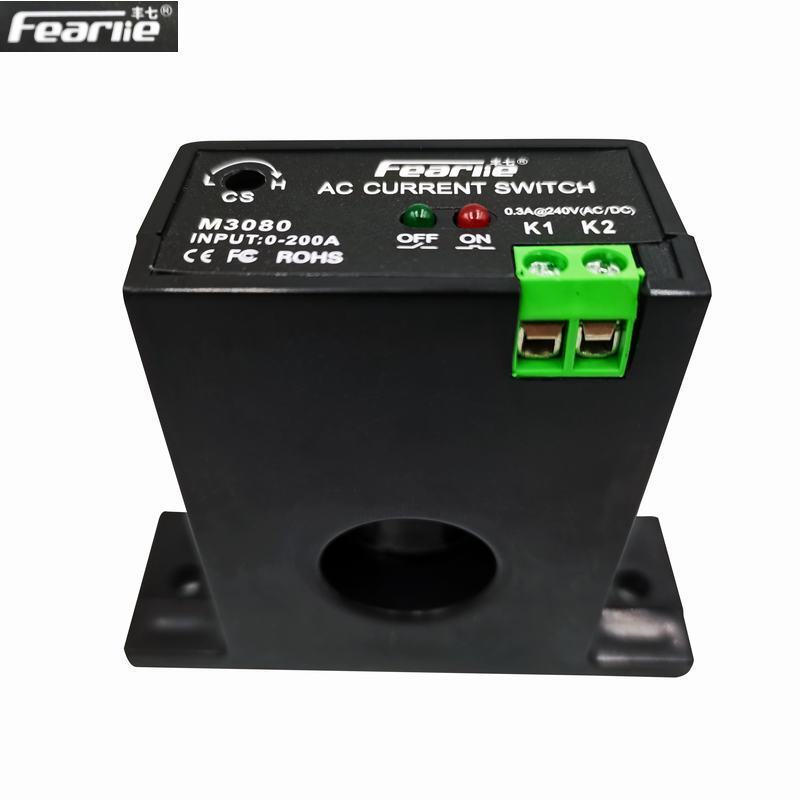

Model Number:: M3080

Warranty:: 3 years

Type:: current switches

Sensing Range:: 1-200A

Product name:: Occupancy Sensor Switch

Application:: Mirror Light

Material:: ABS

Color:: Black

Size:: 65*47*25(MM)

Certification:: FCC CE rohs

Quick Details

Voltage:: 240V

Place of Origin:: Guangdong, China

Brand Name:: fearlie

Model Number:: M3080

Warranty:: 3 years

Type:: current switches

Sensing Range:: 1-200A

Product name:: Occupancy Sensor Switch

Application:: Mirror Light

Material:: ABS

Color:: Black

Size:: 65*47*25(MM)

Certification:: FCC CE rohs

Feature:

1. Self-powered, no external power supply required. 2. Input current 0.2-200A AC, adjustable with a potentiometer. 3. LED indicator can conveniently and intuitively indicate the working status of the switch. 4. High-power MOS tube contactless electronic switch. 5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level. 6. Straight-through structure design, isolation withstand voltage up to 2000V. 7. Hysteresis is less than 1% and can be used under strong magnetic conditions. 8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.

Advantage:

> Mutual inductance current monitoring, safe isolation of input and output, self-powered

> The monitored current range is within 200A , and the monitoring setpoint can be set at any point

within this range. According to the needs of the application, it can also be set to a fixed start setpoint.

> Hysteresis <1%, can be used in a strong magnetic environment.

> Non-contact electronic switch, fast response speed, no limit on the number of on-offs.

> The shell is made of fireproof material ABS.

PRODUCT SPECIFICATIONS

Item	Data
Model	M3080
Power supply	self-powered(no exteral power supply needed)
Type	Normally open
Core type	Solid-core
Setpoint range	0-200A
Output rating	0.3A@240V AC/DC
Off-state leakage	0.1MA
Overload	200%
Aperture	20MM
Hysteresis	＜1%
Response time	＜200Ms
Repeatability	100%
Environmental	-20~55℃ 0~95% non-condensing
Dimensions	654725MM

PRODUCT CONFIGURATION

PRODUCT SIZE

Dimensions:

Application examples：

1. Linkage switch between two devices

2. Whether the monitoring equipment is working properly

3. Send a witch signal to PLC

4. Give the switch signal when the current is overloaded

WIRING DIAGRAM

Wiring parameter description:

The load can be connected to AC and DC :（8-240V）

Output rating：0.3A@240V AC/DC

Indicator light: the switch is connected when the red light is on, and the switch is disconnected when the green light is on

Perforated wire: monitoring AC current only

Normally open:

When the current through the perforated line is greater than the set value, the output terminal is connected When the current through the perforated line is less than the set value, the output terminal is disconnected

Normally closed:

When the current through the perforated line is greater than the set value, the output terminal is disconnected When the current through the perforated line is less than the set value, the output terminal is connected
