Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hysik
-
Model Number:
-
M12 4Pin
-
Contacts:
-
4poles
-
Coupling:
-
Threaded coupling
-
Shell materials:
-
Metal ,nickel plated
-
Pollution Degree:
-
3
-
Contact Plating:
-
Au (gold)
-
Temperature:
-
-25°C-85°C
-
Rated Current:
-
4A
-
Rated voltage:
-
250V
-
Material of housing:
-
Brass nickel plated
Quick Details
-
Type:
-
Power cable
-
Application:
-
industrial automation
-
Gender:
-
male/female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hysik
-
Model Number:
-
M12 4Pin
-
Contacts:
-
4poles
-
Coupling:
-
Threaded coupling
-
Shell materials:
-
Metal ,nickel plated
-
Pollution Degree:
-
3
-
Contact Plating:
-
Au (gold)
-
Temperature:
-
-25°C-85°C
-
Rated Current:
-
4A
-
Rated voltage:
-
250V
-
Material of housing:
-
Brass nickel plated

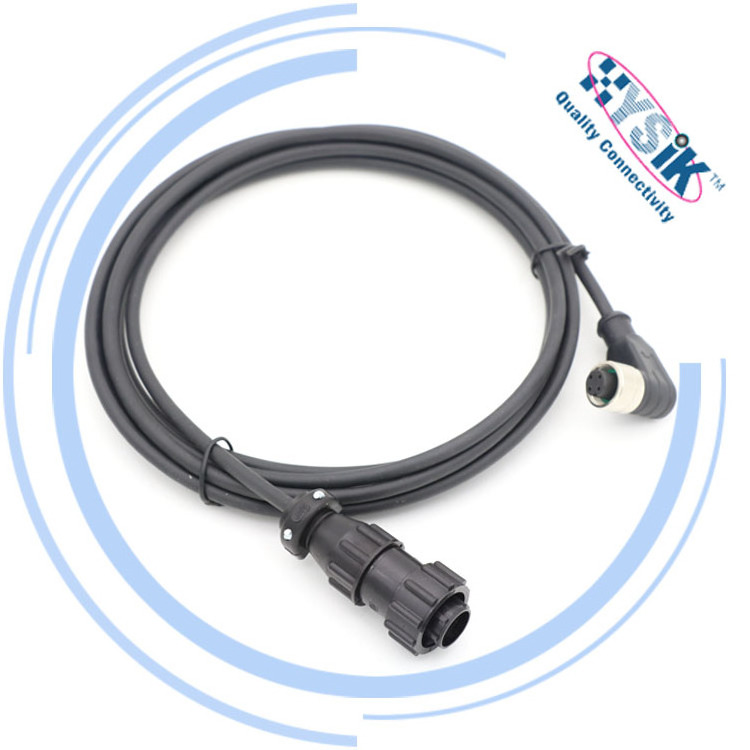

M12 Pre-molded (PUR/PVC)cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission,equivalent Phoenix Contact,Lumberg,Binder,
Electrical & Mechanical data
Standard: IEC 61076-2-101
Coupling nut/screw:Brass with nickel plated screw
Ambient temperature:-40°C ~ + 80°C
Insulation resistance:≥100 MΩ
Contacts resistance:≤5mΩ
Orientation:Right angle
Sealing:O-ring
wire Termination:Soldering
Plug Part Number: 206429
Base:1-206062-6
Connection type:Double cable with shield
Connector contacts:Brass with gold plated
Wire insulation:PVC/PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Rated current: 4A
Rated voltage:250 V
IP rating:IP67
Packing:1pcs packing in a seal bag,50pcs packing in a bag
Delivery:3-4days after received the payment
