Quick Details
-
Brand Name:
-
Shantui
-
Model Number:
-
SD22
-
Dimension(Long * Breadth * High):
-
5495*3725*3402
-
Operating weight (Kg):
-
23450
-
Ground pressure (kPa):
-
66
-
Engine model:
-
WP12/QSNT-C235
-
Rated power/rated speed (kW/rpm):
-
175/1800
-
Center distance of track (mm):
-
1880
-
Width of track shoes (mm):
-
460
-
Ground length(mm):
-
2730
-
Fuel tank (L):
-
450
-
Blade type:
-
Straight tilting blade
-
Digging depth (mm):
-
540
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Video technical support, Online support
Quick Details
-
Machine Weight:
-
23450kg
-
Dozing Capacity:
-
7.5m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Model Number:
-
SD22
-
Dimension(Long * Breadth * High):
-
5495*3725*3402
-
Operating weight (Kg):
-
23450
-
Ground pressure (kPa):
-
66
-
Engine model:
-
WP12/QSNT-C235
-
Rated power/rated speed (kW/rpm):
-
175/1800
-
Center distance of track (mm):
-
1880
-
Width of track shoes (mm):
-
460
-
Ground length(mm):
-
2730
-
Fuel tank (L):
-
450
-
Blade type:
-
Straight tilting blade
-
Digging depth (mm):
-
540
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Video technical support, Online support

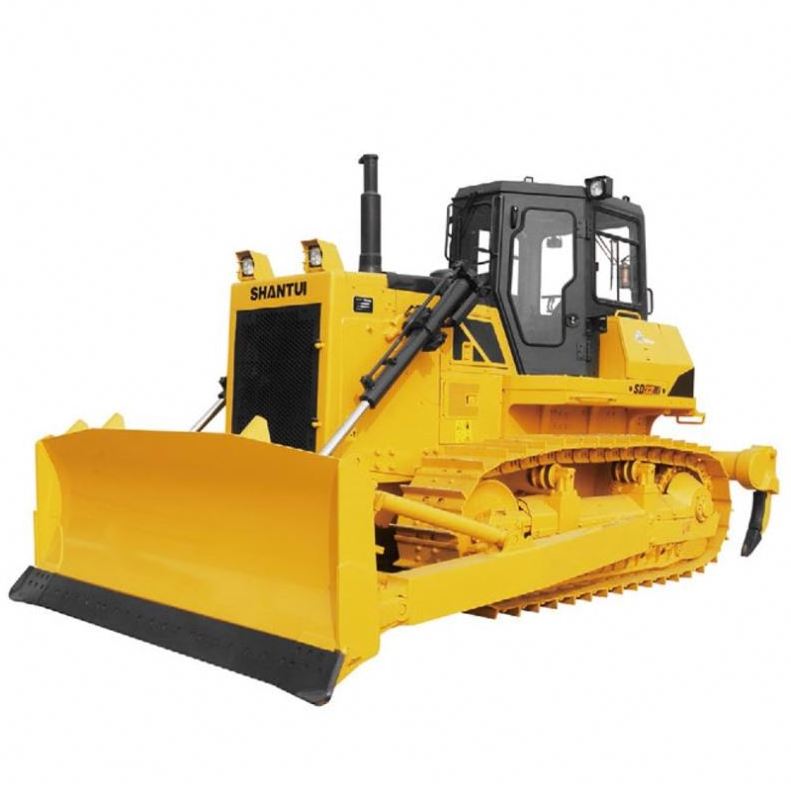

Reasonable Layout Labor-Savin Shantui SD22 220 HP Crawler Bulldozer
Product Description
Power System
- The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
- The rated power reaches 175kW, featuring a high torque reserve coefficient.
- The radially sealed intake system is applied to effectively prolong engine life.
Drive system
- The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
- Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
Blade type
Straight tilting blade/ Angle Blade/U-shaped Blade/Semi-U blade
Other Bulldozer
- Coal version SD22C
- Rock version SD22W
- Forestry version SD22F
- Desert version SD22D
- Extended version SD22E
- Environmental sanitation version SD22R
- Wetland version SD22S
Find Me
Contact Me: Sissi ——→ Chat Now
Mobile / Whatsapp / Wechat: +86 18856244920
Email: Sissi at oriemac.com
Facebook: https://www.facebook.com/qian.ding.948
Web: http://www.oriemac.com
Parameter
| Parameter name | SD22 (Standard version) | SD22C (Coal version) | SD22W (Rock version) | SD22F (Forestry version) |
| Performance parameters | ||||
| Operating weight (Kg) | 23450 | 24000 | 23600 | 24700 |
| Ground pressure (kPa) | 66 | 57.5 | 66 | 64 |
| Engine | ||||
| Engine model | WP12/QSNT-C235 | WP12/QSNT-C235 | QSNT-C235 | QSNT-C235 |
| Rated power/rated speed (kW/rpm) | 175/1800 | 175/1800 | 175/1800 | 175/1800 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 5495*3725*3402 | 5820*4200*3402 | 5495*3725*3402 | 5495*3725*3402 |
| Driving performance | ||||
| Forward speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 |
| Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 |
| Chassis System | ||||
| Center distance of track (mm) | 2000 | 2000 | 2000 | 2000 |
| Width of track shoes (mm) | 560/610/660 | 660 | 560/610/660 | 610/660 |
| Ground length(mm) | 2730 | 2730 | 2730 | 2730 |
| Tank capacity | ||||
| Fuel tank (L) | 450 | 450 | 450 | 450 |
| Working device | ||||
| Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | Coal blade | Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
| Digging depth (mm) | 540 | 538 | 540 | 540 |
| Ripper type | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank |
| Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) |
| Parameter name | SD22E (Extended version) | SD22R (Environmental sanitation version) | SD22S (Wetland version) |
| Performance parameters | |||
| Operating weight (Kg) | 24600 | 26000 | 25700 |
| Ground pressure (kPa) | 66 | 36 | 35.2 |
| Engine | |||
| Engine model | QSNT-C235 | WP12/QSNT-C235 | WP12/QSNT-C235 |
| Rated power/rated speed (kW/rpm) | 175/1800 | 175/1800 | 175/1800 |
| Overall dimensions | |||
| Overall dimensions of machine (mm) | 5495*3725*3402 | 6290*4365*3745 | 6290*4365*3402 |
| Driving performance | |||
| Forward speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 |
| Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 |
| Chassis System | |||
| Center distance of track (mm) | 2000 | 2250 | 2250 |
| Width of track shoes (mm) | 560/610/660 | 910 | 910 |
| Ground length(mm) | 3050 | 3480 | 3480 |
| Tank capacity | |||
| Fuel tank (L) | 450 | 450 | 450 |
| Working device | |||
| Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | Sanitation blade | Straight tilting blade |
| Digging depth (mm) | 540 | 550 | 550 |
| Ripper type | Single-shank three-shank | —— | —— |
| Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) | —— | —— |
