Quick Details
-
Supplier Type:
-
original
-
Application:
-
LED Lighting
-
Protection:
-
OCP OVP OTP SCP
-
Efficiency:
-
72%
-
Color:
-
Silver
-
Warranty:
-
1year
-
Working Temp:
-
-25-60C
-
Storage temp:
-
-40-80C
-
Certification:
-
CE ROHS
Quick Details
-
Model Number:
-
HLK-PM01L
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-Link
-
Supplier Type:
-
original
-
Application:
-
LED Lighting
-
Protection:
-
OCP OVP OTP SCP
-
Efficiency:
-
72%
-
Color:
-
Silver
-
Warranty:
-
1year
-
Working Temp:
-
-25-60C
-
Storage temp:
-
-40-80C
-
Certification:
-
CE ROHS
Details
Notes.
* The input design adopts UL listed 1A / 250Vac slow-blow fuse or 10Ω wire-wound resistor
*The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade
* Safety standard meets UL1012,EN60950,UL60950
* Insulation voltage I/P-O/P:2500Vac
* Insulation resistance I/P-O/P>100M Ohms/500Vdc 25℃ 70% RH
* Conduction and radiation meet EN55011, EN55022 (CISPR22)
* Electrostatic discharge IEC/EN 61000-4-2 level 4 8kV/15kV
* Radio frequency radiation immunity IEC/EN 61000-4-3
|

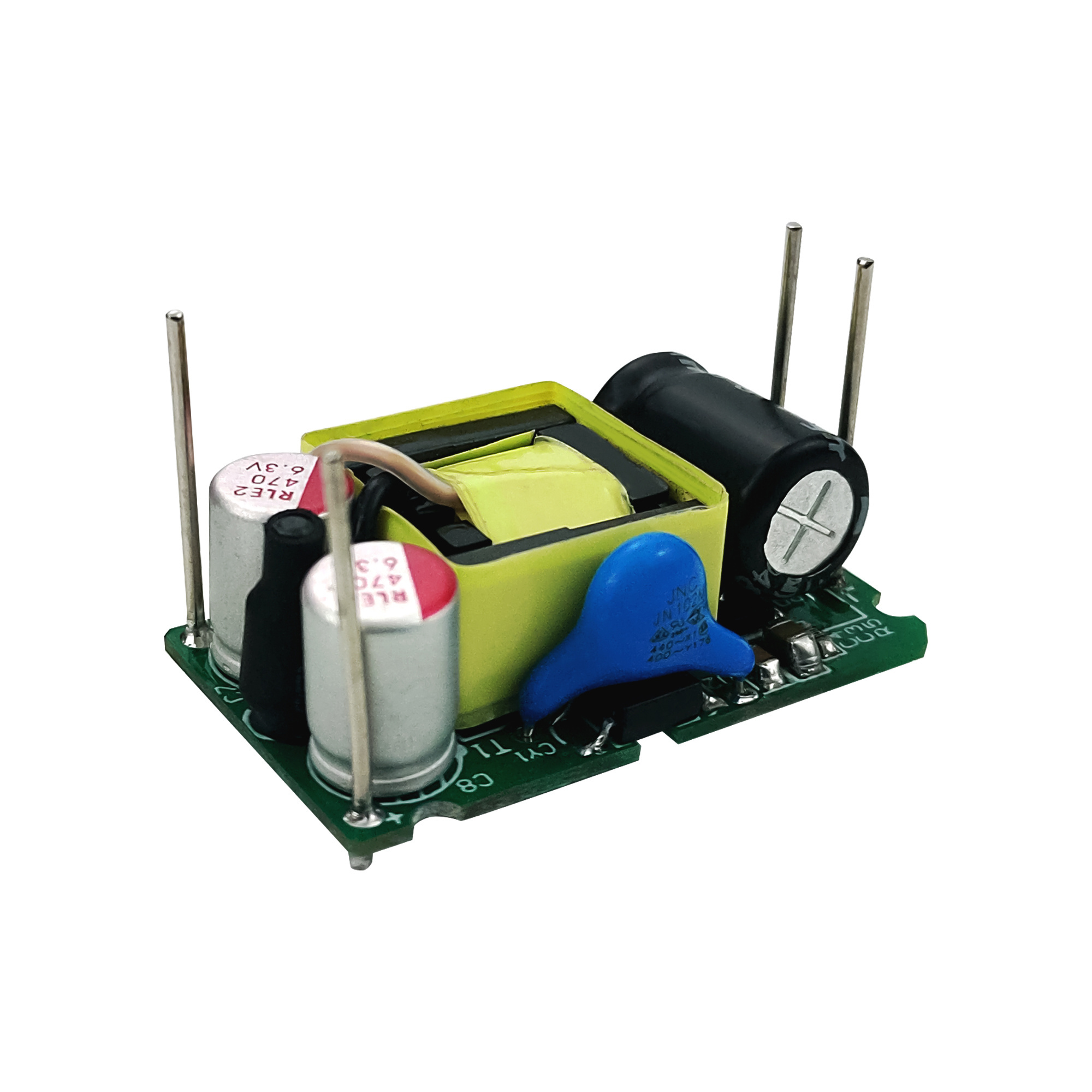

Product Name
|
ac dc power supply module
|
|
Material
|
Plastic and PCB
|
|
Power
|
3W output
|
|
Voltage
|
5Vdc output
|
|
Isolation
|
3000Vac
|
|
Model
|
HLK-PM01
|
|
Style
|
Single output
|
|
Max input voltage
|
265Vac
|
|
Max input current
|
0.2A
|
