Quick Details
-
Brand Name:
-
SAEF
-
Screen Size::
-
1.3 inch PMOLED 4 pins SPI & I2C
-
resolution::
-
128x64 dots
-
Structure:
-
COG + PCB
-
Operating Temp.:
-
-40℃ to +80℃
-
Interface:
-
SPI, I2C optional
-
Viewing Direction:
-
All Viewing Angles
-
Pin number:
-
4 pins ( 7 pins optional )
-
Connection:
-
Header Pins
-
LED lifetime:
-
40,000 hours
-
Compliance:
-
Reach and RoHS compliant
Quick Details
-
Type:
-
OLED
-
Display Size:
-
1.3nch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAEF
-
Screen Size::
-
1.3 inch PMOLED 4 pins SPI & I2C
-
resolution::
-
128x64 dots
-
Structure:
-
COG + PCB
-
Operating Temp.:
-
-40℃ to +80℃
-
Interface:
-
SPI, I2C optional
-
Viewing Direction:
-
All Viewing Angles
-
Pin number:
-
4 pins ( 7 pins optional )
-
Connection:
-
Header Pins
-
LED lifetime:
-
40,000 hours
-
Compliance:
-
Reach and RoHS compliant
Product Description
|
Product Name
|
1.3 inch PMOLED 4 pins SPI & I2C
|
|
Display resolution
|
128x64 dots
|
|
Optics
|
All Viewing Angles
|
|
INTERFACE TYPE
|
SPI, I2C optional
|
|
Pin number
|
4 pins ( 7 pins optional )
|
|
LED lifetime
|
40,000 hours
|
|
Compliance
|
REACH & RoHS Compliant
|
Passive Matrix OLED 1.3" Inch COG+PCB 4 Pins 128x64 SPI I2C Optional SH1106 Driver IC 3V
4 Pin OLED Display (COG+PCB) , 1.3" inch OLED Description

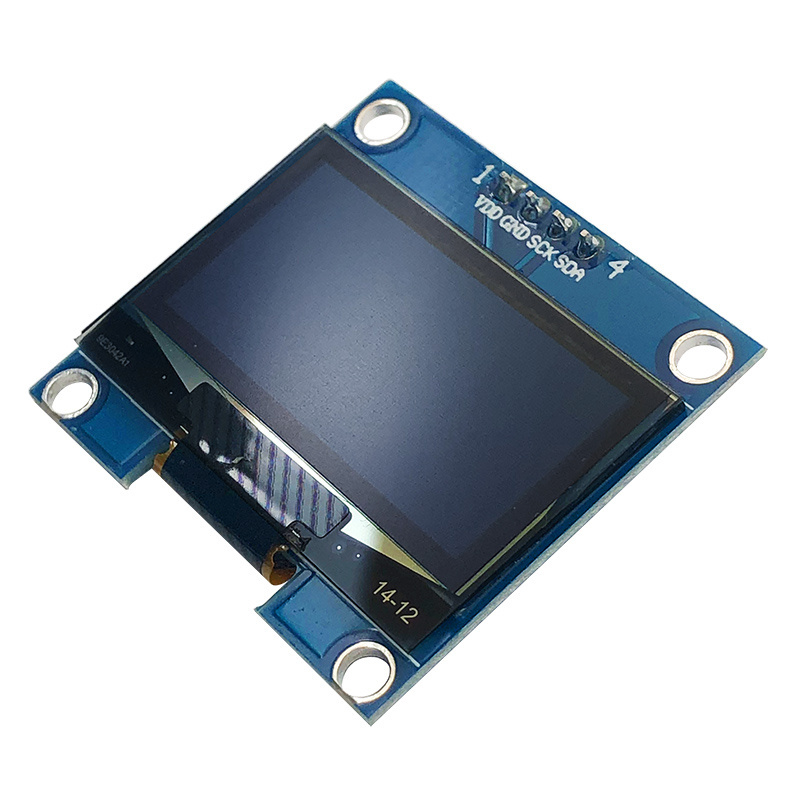

SFOM130YZ4-12864WB-01 is a graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.3 inch.
SFOM130YZ4-12864WB-01 is built in with SH1106 IC; it supports I2C and SPI interface, 1/64 driving duty. It is having PCB outline size 35.5 × 33.7 mm with mounting holes on board and 4x1 metal pins on module.
The supply voltage for logic of SFOM130YZ4-12864WB-01 is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). This OLED module can be operating at temperatures from -40℃ to +85℃.
SFOM130YZ4-12864WB-01 is built in with SH1106 IC; it supports I2C and SPI interface, 1/64 driving duty. It is having PCB outline size 35.5 × 33.7 mm with mounting holes on board and 4x1 metal pins on module.
The supply voltage for logic of SFOM130YZ4-12864WB-01 is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). This OLED module can be operating at temperatures from -40℃ to +85℃.
