The HDPE geomembrane is 100%waterproof products.The raw material is high density polyethylene and carbon black,mixed in three lay co-extrustion blowing machine. It has good mechanical strength, tensile strength at break 28Mpa, elongation at break 700%. The anti-seepage principle is ordinary physical changes. It is the best choice for environmental protection, aquaculture, and drinking water ponds.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
none
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingkun
-
Model Number:
-
dk-tgm
-
Color:
-
Black,write or customized
-
Thickness:
-
0.3mm-3.0mm
-
Density:
-
>=0.940 g/cm3
-
Width:
-
1m-12m
-
Length:
-
50m-200m/roll (as Request)
-
Usage:
-
Fish pond liner,etc.
-
Standard:
-
ASTM GRI GM-13
-
Certificate:
-
CE/ISO9001
-
Material:
-
HDPE LDPE LLDPE EPDM EVA
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
none
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingkun
-
Model Number:
-
dk-tgm
-
Color:
-
Black,write or customized
-
Thickness:
-
0.3mm-3.0mm
-
Density:
-
>=0.940 g/cm3
-
Width:
-
1m-12m
-
Length:
-
50m-200m/roll (as Request)
-
Usage:
-
Fish pond liner,etc.
-
Standard:
-
ASTM GRI GM-13
-
Certificate:
-
CE/ISO9001
-
Material:
-
HDPE LDPE LLDPE EPDM EVA
HDPE geomembrane
Smooth geomembranes manufactured from quality high density polyethylene resins(HDPE) that comply with the most rigorous requirements established for their use. The 0.5mm hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond.
Product Description
HDPE geomembrane for fish farm liner
Product Paramenters
|
Item
|
HDPE Geomembrane Technical Data
|
|
|
|
|
|
|
|
|
||||||||
|
Thickness mm
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
||||||||
|
Density g/cm
3
|
>=0.940
|
|
|
|
|
|
|
|
|
||||||||
|
Tensile yield strength(TD/MD)
|
≥4
|
≥7
|
≥10
|
≥13
|
≥16
|
≥20
|
≥26
|
≥33
|
≥40
|
||||||||
|
Tensile Strength at Break(TD/MD)
|
≥6
|
≥10
|
≥15
|
≥20
|
≥25
|
≥30
|
≥40
|
≥50
|
≥60
|
||||||||
|
Elongation at Yield(TD/MD)
|
_
|
_
|
_
|
≥11
|
|
|
|
|
|
||||||||
|
Puncture Strength(N)
|
≥72
|
≥120
|
≥180
|
≥240
|
≥300
|
≥360
|
≥480
|
≥600
|
≥720
|
||||||||
|
Elongation (TD/MD)
|
≥600
|
|
|
|
|
|
|
|
|
||||||||
|
Oxidation Induction Time(min)
|
≥60
|
|
|
|
|
|
|
|
|
||||||||
|
Water vapor permeability coefficient
( g*cm/(cm*s*Pa))
|
≤1.0x10
-13
|
|
|
|
|
|
|
|
|
||||||||
|
Dimensional Stability
|
±2.0
|
|
|
|
|
|
|
|
|
||||||||
Product Feature
Good flexibility
HDPE Geomembrane has high tensile mechanical properties. Its excellent elasticity and deformability make it very suitable for expansion or contraction of the base surface. Effectively overcome the uneven settlement of the base surface.
Corrosion resistance, aging resistance
It has excellent chemical stability and is widely used in sewage treatment, chemical reaction tanks and landfills. Resistant to high and low temperature, asphalt, oil and tar, acid, alkali, salt and corrosion of more than 80 strong acid and alkali chemical media.
Lower Permeability
Geomembranes contains not less than 94% of pure polyethylene polymer and a balance not higher than 3% of carbon black, antioxidants and thermal stabilizers.
Chemical Resistance
geomembrane are manufactured under permanent quality control and comply with national standard and international gm13 standard.
High mechanical strength
HDPE liner has good mechanical strength and carious specifications.
It is the best choice for environmental protection, aquaculture, and drinking water ponds. smooth and textured surface available.

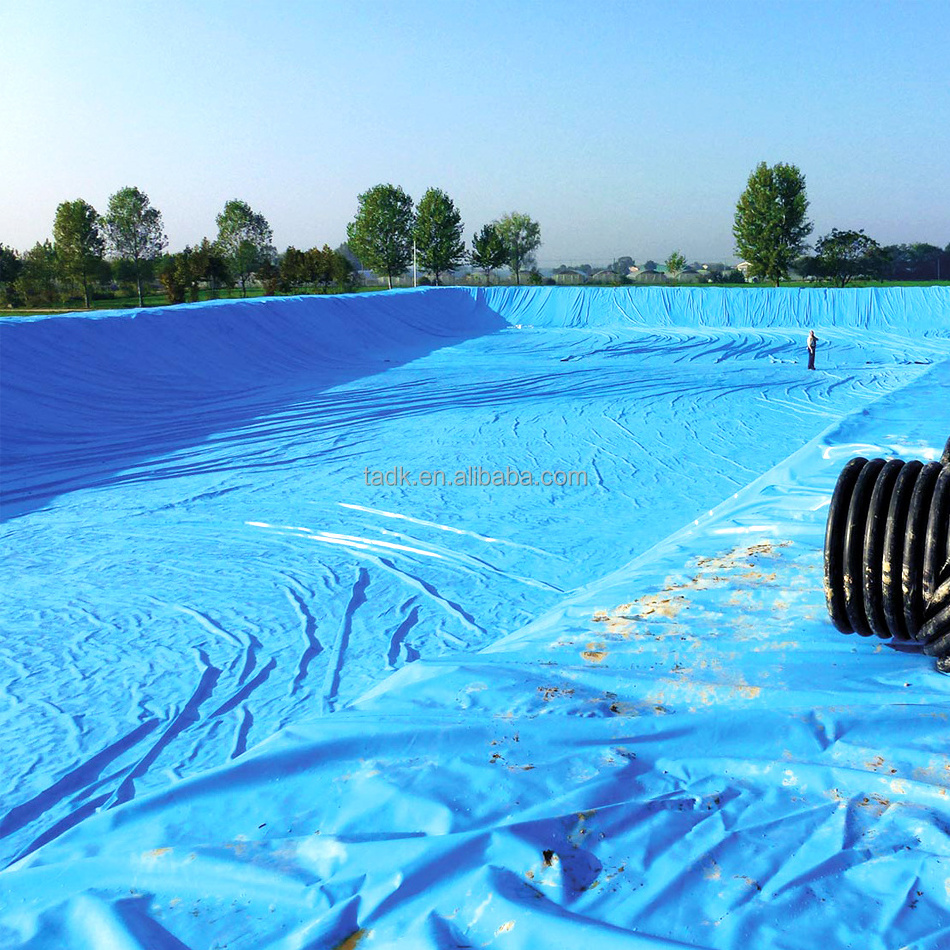

Application
Packing & Delivery
HDPE Geomembrane packed with woven bags or as your requirements.
