Quick Details
-
Spindle Bore(mm):
-
63
-
Width of bed (mm):
-
250 mm
-
Spindle Motor Power(kW):
-
11
-
Travel (X Axis)(mm):
-
250 mm
-
Travel (Z Axis)(mm):
-
600 mm
-
Positioning Accuracy (mm):
-
±0.004
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2440*1700*1800mm
-
Brand Name:
-
Leichman
-
Model Number:
-
CKD108L
-
Weight (KG):
-
4000
-
Marketing Type:
-
New Product 2023
-
CNC or Not:
-
CNC
-
Function:
-
Turning/Boring/Drilling/Threading
-
Control system:
-
SIEMENS/GSK/FANUC/KND
-
Color:
-
Customer Optional
-
Chuck size:
-
6''/8''
-
Tool holder:
-
12 Station
-
Turret Type:
-
Servo Turret
-
Spindle nose:
-
A2-6
-
Max. Swing Diameter:
-
450mm
-
Product Material:
-
Alumiun/Copper/Steel/Other
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
600
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Spindle Bore(mm):
-
63
-
Width of bed (mm):
-
250 mm
-
Spindle Motor Power(kW):
-
11
-
Travel (X Axis)(mm):
-
250 mm
-
Travel (Z Axis)(mm):
-
600 mm
-
Positioning Accuracy (mm):
-
±0.004
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2440*1700*1800mm
-
Brand Name:
-
Leichman
-
Model Number:
-
CKD108L
-
Weight (KG):
-
4000
-
Marketing Type:
-
New Product 2023
-
CNC or Not:
-
CNC
-
Function:
-
Turning/Boring/Drilling/Threading
-
Control system:
-
SIEMENS/GSK/FANUC/KND
-
Color:
-
Customer Optional
-
Chuck size:
-
6''/8''
-
Tool holder:
-
12 Station
-
Turret Type:
-
Servo Turret
-
Spindle nose:
-
A2-6
-
Max. Swing Diameter:
-
450mm
-
Product Material:
-
Alumiun/Copper/Steel/Other

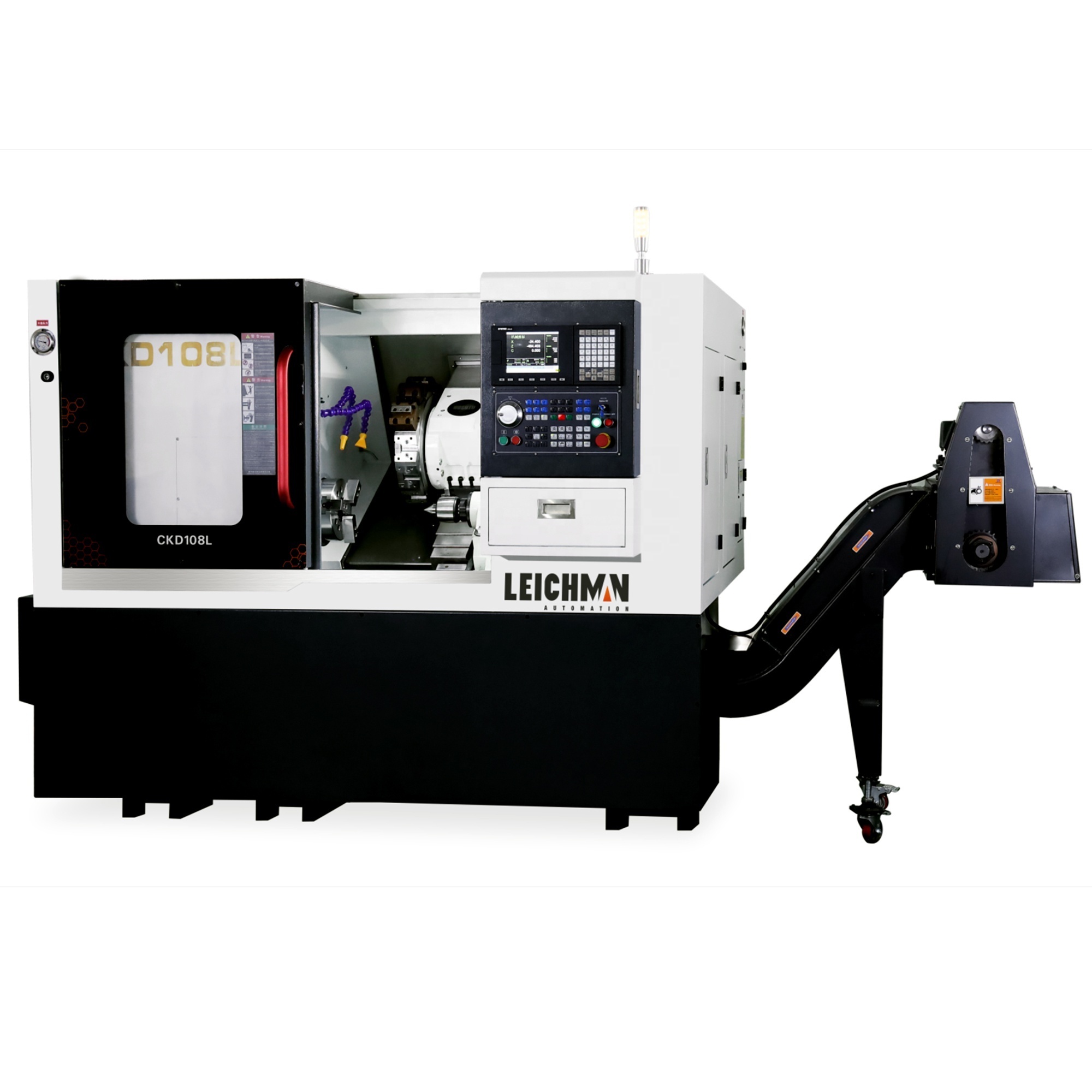

Top Standard CKD108L CNC Turret Lathe Machine Slant Bed CNC Lathe machine
- The bed is inclined at 30°, and the large carriage and tool post are inclined, which makes the operation of the machine tool and chip removal very convenient.
- The main shaft adopts a high-precision main shaft, which contains Swiss SKF precision main shaft bearings.
- The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.
|
Item |
Unit |
CKD106L |
||
|
Capacity |
Max swing over bed |
mm |
450 |
450 |
|
Max cutting diameter |
mm |
450 |
450 |
|
|
Max cutting length |
mm |
600 |
600 |
|
|
Travel |
X axis travel |
mm |
250 |
250 |
|
Z axis travel |
mm |
600 |
600 |
|
|
Precision |
Spindle runout |
mm |
0.004 |
0.004 |
|
X//Y/Z axis reposition precision |
mm |
0.002 |
0.002 |
|
|
Spindle |
Spindle speed |
rpm |
4000 |
5000 |
|
Chuck diameter |
inch |
8” |
6” |
|
|
Spindle nose |
|
A2-6 |
A2-5 |
|
|
Spindle bore |
mm |
63 |
56 |
|
|
Max bar diameter |
mm |
52 |
45 |
|
|
Turret |
Type |
|
12-station servo turret |
12-station servo turret |
|
Outer Shank dia. |
|
25 |
25 |
|
|
Inner shank dia. |
mm |
40 |
40 |
|
|
Tailstock |
Sleeve diameter |
mm |
80 |
80 |
|
Sleeve taper |
|
MT5 |
MT5 |
|
|
Travel(manual) |
mm |
480 |
480 |
|
|
Sleeve travel |
mm |
100 |
100 |
|
|
Rapid speed |
X axis rapid speed |
m/min |
24 |
24 |
|
Z axis rapid speed |
m/min |
24 |
24 |
|
|
Motor power |
Spindle |
kw |
11 |
7.5 |
|
X axis feed motor |
kw |
2.4 |
2.4 |
|
|
Y axis feed motor |
kw |
2.4 |
2.4 |
|
|
Other |
Dimension |
Mm |
2440×1700×1800 |
2440×1700×1800 |
|
Weight |
kg |
4000 |
4000 |
