Famous brand co2 glass laser tube with Yongli or Reci brand with high quality,long life length and precision cutting and engraving effect.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa controller
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-30mm, depending on laser power and materials
-
Control Software:
-
RuiDa controller
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Weight (KG):
-
430 KG
-
Core Components:
-
laser tube
-
Mode of Operation:
-
CO2 Laser
-
Products handled:
-
Non-metal cutting and engraving
-
Key words:
-
LaserMen multifunctional co2 laser cutting and engraving machine
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Laser power:
-
60w/80w/100w/130w/150w/180w/240w/300w
-
Transmission type:
-
Belt transmission
-
Working voltage:
-
Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
-
Cooling system:
-
S&A industrial water chiller
-
Transmission:
-
Belt transmission
-
Software supported:
-
CorelDraw, AutoCAD
-
Work table:
-
Blade table or Honeycomb table
-
Driving system:
-
3-phase Stepper Motor
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-300mm/sec
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa controller
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-30mm, depending on laser power and materials
-
Control Software:
-
RuiDa controller
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Weight (KG):
-
430 KG
-
Core Components:
-
laser tube
-
Mode of Operation:
-
CO2 Laser
-
Products handled:
-
Non-metal cutting and engraving
-
Key words:
-
LaserMen multifunctional co2 laser cutting and engraving machine
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Laser power:
-
60w/80w/100w/130w/150w/180w/240w/300w
-
Transmission type:
-
Belt transmission
-
Working voltage:
-
Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
-
Cooling system:
-
S&A industrial water chiller
-
Transmission:
-
Belt transmission
-
Software supported:
-
CorelDraw, AutoCAD
-
Work table:
-
Blade table or Honeycomb table
-
Driving system:
-
3-phase Stepper Motor
Best price CNC co2 laser wood engraving cutting machines model 1390 80W 100W acrylic fabric lazer engraver
Machine Parameters
|
Product name
|

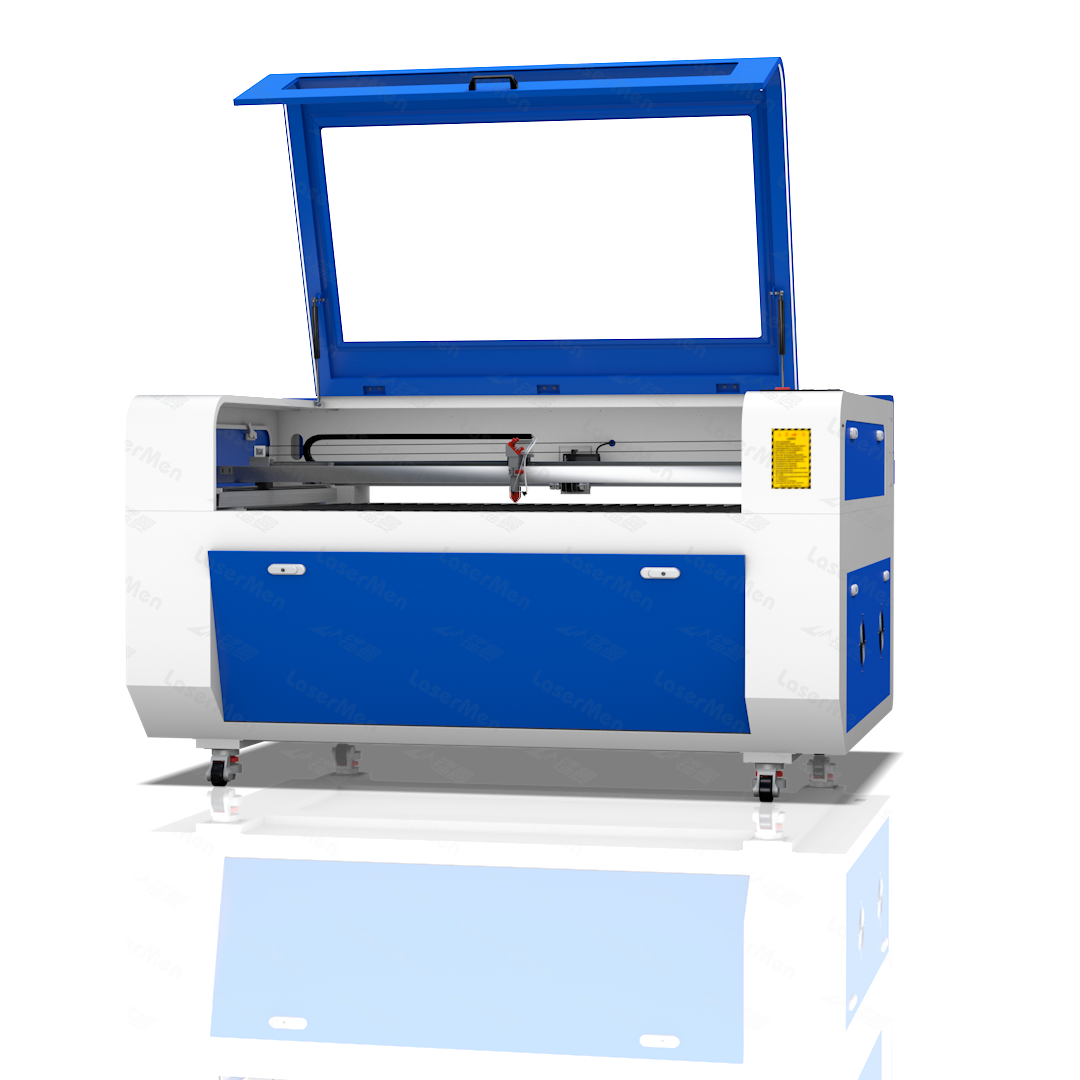

LM-1390-2 Co2 laser engraving cutting machine
|
|
Cooling system
|
Water cooling, water pump / S&A industrial water chiller
|
|
Working voltage
|
Single phase 220V±10% 50Hz (Optional: 220V±10% 60Hz, 110V±10% 60Hz)
|
|
Transmission system
|
Linear guide rail and belt transmission
|
|
Driving system
|
Stepper motors and drivers
|
|
Processing materials
|
acrylic wood mdf plywood glass leather fabric stone plastic rubber PVC etc.
|
|
Machine table
|
Blade table (alternative: honeycomb table)
|
|
Control system
|
RuiDa controller RDC6445G
|
|
Air assist
|
Air compressor
|
|
Exhaust system
|
Exhaust fan
|
|
Machine color
|
Blue and white, Accept customization
|
|
Optional function
|
Wifi, Rotaty, Red dot, auto-focus, motorized up-down table, safety interlock
|
|
Software
|
RDworks laser sofware
|
|
Laser power
|
80w/100w/130w/150w/180w
|
|
Working area
|
1300*900mm
|
Product Description :
1).
LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is our basic type CO2 laser engraving cutting machine. It is the most cost-effective and multifunctional machine. There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140*90cm, 160x100cm.
2). CO2 laser tube power from 80W to 300W optional. Applicable for engraving and cutting various nonmetallic materials, like acrylic, plexiglass, wood, MDF, rubber, PVC, leather, paper, stone, glass, etc. 80-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.
3). Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
4). LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure machine running.
5). Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
6).
This machine with reduction wheel, improve cutting accuracy.
7).
Material can be passed from front to back, solve the problem that the material size is too long.
Product Details
Special liner guide rail good stability and long service life, low noise and high precision.
Strong power, reliable performance, safe and fast, ensure the normal operation of the machine.
45° mirror adjustment set. Three-point dimming blot for easier dimming .
5. Laser Head
The high-precision laser head has a long service life, can be equipped with red light.
RDC 6445G control system, parameters can be stored, 13 languages can be selected. Easy to operate.
Blade working table for hard material, such as wood, acrylic, mdf, plywood, stone, etc.
Honeycomb working table for soft materials, such as lather, fabric, paper, cloth, etc.
Take every details seriously to endure that the machine is stable working during service to every customer.
9. Reduction wheel
The reduction wheel has a buffer effect to improve cutting accuracy.
10. Material can be passed from front to back
If the size of the material you are processing is too long, this machine is very suitable for you, it can realize the material from the front to the back, which is convenient.
Optional Functions
Product Application
Applicable Industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.
Working materials:
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.
Related Products
Customer Feedback Video ：
Customers are satisfied with the use of our co2 laser engraving machine and highly praised it. The engraving speed is fast and exquisite, and the application range is wide.
