Name
: Seal Parts (YX sealing Ring, O Ring, etc.)
Original
: CHINA
RISEN used the standard seal parts to ensure the excellent seal quality
- Product Details
- {{item.text}}
Quick Details
-
Name:
-
Manual or hand operated pump
-
Output:
-
0---8L/min
-
Pressure:
-
10bar
-
Discharge Outlet ID:
-
25mm
-
Color:
-
yellow or as the customer's requirement
Quick Details
-
Weight (KG):
-
56
-
Place of Origin:
-
China
-
Brand Name:
-
RISEN
-
Name:
-
Manual or hand operated pump
-
Output:
-
0---8L/min
-
Pressure:
-
10bar
-
Discharge Outlet ID:
-
25mm
-
Color:
-
yellow or as the customer's requirement
Product Description

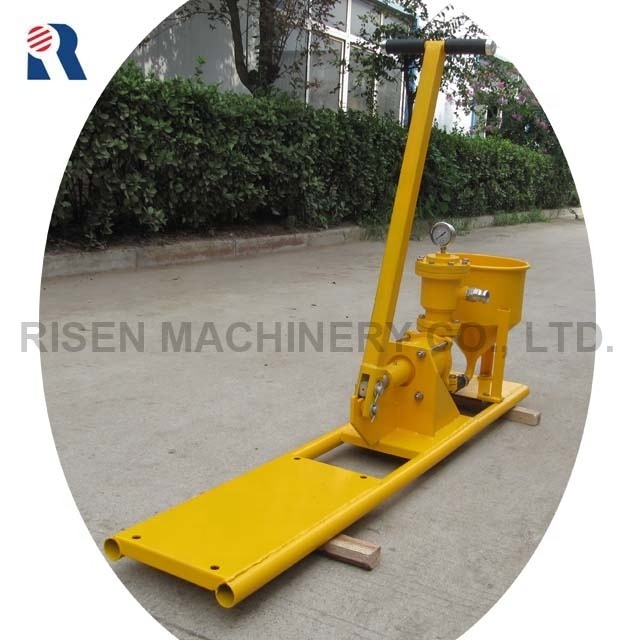

Best Choice Hand Operate Grout Pumps / Manual Grouting Pump Machine
Product Instruction & Application
RISEN SB10 hand operate grouting pump is a small piston pump machine. It is mainly used in grouting cement slurry or the similar slurry by hand. It has simple operation and controllable flow.
This machine has two types---standard one and special one. The special one is equipped with a hopper.
Application:
Manual grout the cement slurry or similar slurry for the crack repair of the bridge engineering, house construction, etc.
|
SPECIFICATIONS FOR RISEN SB10
|
|
|
|
|||
|
Engine
|
Manual (Hand Operation)
|
|
|
|||
|
|
Working Pressure:
|
MPa
|
1 (10bar)
|
|||
|
|
Rated output:
|
L/min
|
0~8L/min
|
|||
|
|
Piston Dia.:
|
mm
|
110mm
|
|||
|
|
Piston stroke:
|
mm
|
42mm
|
|||
|
|
Inlet hose
|
mm
|
25mm
|
|||
|
|
Outlet hose:
|
mm
|
25mm
|
|||
|
|
Power:
|
|
manual
|
|||
|
|
Overall Dimension (LxWxH)
|
mm
|
980x290x590
|
|||
|
|
Weight:
|
KGS
|
56 (47 for the standard one)
|
|||
|
|
Chassis:
|
|
Skid
|
|||
Main Features & Advantages
Manual grouting, simple operation and controllable flow.
Single-cylinder work, high vacuum degree, and strong self-suction capability.
Small size and light weight, convenient for moving in a small space.
Repair and maintain easily and fewer consumable parts.
Standard seal parts to ensure the excellent seal quality;
All the units manufactured as our special design to ensure the enough strength;
Single-cylinder work, high vacuum degree, and strong self-suction capability.
Small size and light weight, convenient for moving in a small space.
Repair and maintain easily and fewer consumable parts.
Standard seal parts to ensure the excellent seal quality;
All the units manufactured as our special design to ensure the enough strength;
Painted after sandblasting for a pretty appearance;
Factory Images
Detailed Images
Machine Parts
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1230 (L) * 320 (W) * 620 (H)mm
|
|
|
Weight
|
60KGS
|
|
|
Packaging Details
|
The normal package of one SB10 is a carton (Estimated Size: 1230 (L) * 320 (W) * 620 (H)mm ). For several sets shipped by sea, the package can be the plywood crate or according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
1230 (L) * 320 (W) * 620 (H)mm
|
|
|
Weight
|
90KGS
|
|
|
Packaging Details
|
The normal package of one SB10 is a carton (Estimated Size: 1230 (L) * 320 (W) * 620 (H)mm ). For several sets shipped by sea, the package can be the plywood crate or according to customers special request.
|
|
