Quick Details
-
Brand Name:
-
Pitbull
-
Model Number:
-
TMS45/TMS60/TMS95(0.5k-30KVA)
-
Output voltage:
-
220V/110V
-
Input Voltage:
-
45V-280V
-
Protection:
-
Over Voltage(246V±4V),Overload,High Temperature,Short Circuit
-
Certificate:
-
CE / ISO9001
-
Delay time:
-
Short : 3-5sec Long : 3-7min
-
Frequency:
-
50Hz/60Hz
-
Type:
-
Relay Control
-
Display:
-
LED
-
Color:
-
Customerized
-
Efficiency:
-
97 %
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Pitbull
-
Model Number:
-
TMS45/TMS60/TMS95(0.5k-30KVA)
-
Output voltage:
-
220V/110V
-
Input Voltage:
-
45V-280V
-
Protection:
-
Over Voltage(246V±4V),Overload,High Temperature,Short Circuit
-
Certificate:
-
CE / ISO9001
-
Delay time:
-
Short : 3-5sec Long : 3-7min
-
Frequency:
-
50Hz/60Hz
-
Type:
-
Relay Control
-
Display:
-
LED
-
Color:
-
Customerized
-
Efficiency:
-
97 %
Products Description
|
MODEL
|
TMS45(20K-30kVA)
|
|
TMS60(20K-30kVA)
|
TMS95(20K-30kVA)
|
|
||||
|
INPUT VOLTAGE
|
AC 45V-280V
|
|
AC 60V-280V
|
AC 95V-280V
|
|
||||
|
OUTPUT VOI7AGE
|
AC220V±10% 50/60HZ
|
|
|
|
|
||||
|
DELAY TIME
|
Short Delay:3-5sec
|
|
|
|
|
||||
|
PROTECTION
|
Over Voltage(246V±4V),Overload,High Temperature,Short Circuit
|
|
|
|
|
||||
|
POWER
|
20kva
|
|
30kVA
|
|
|
||||
|
FEATURES
|

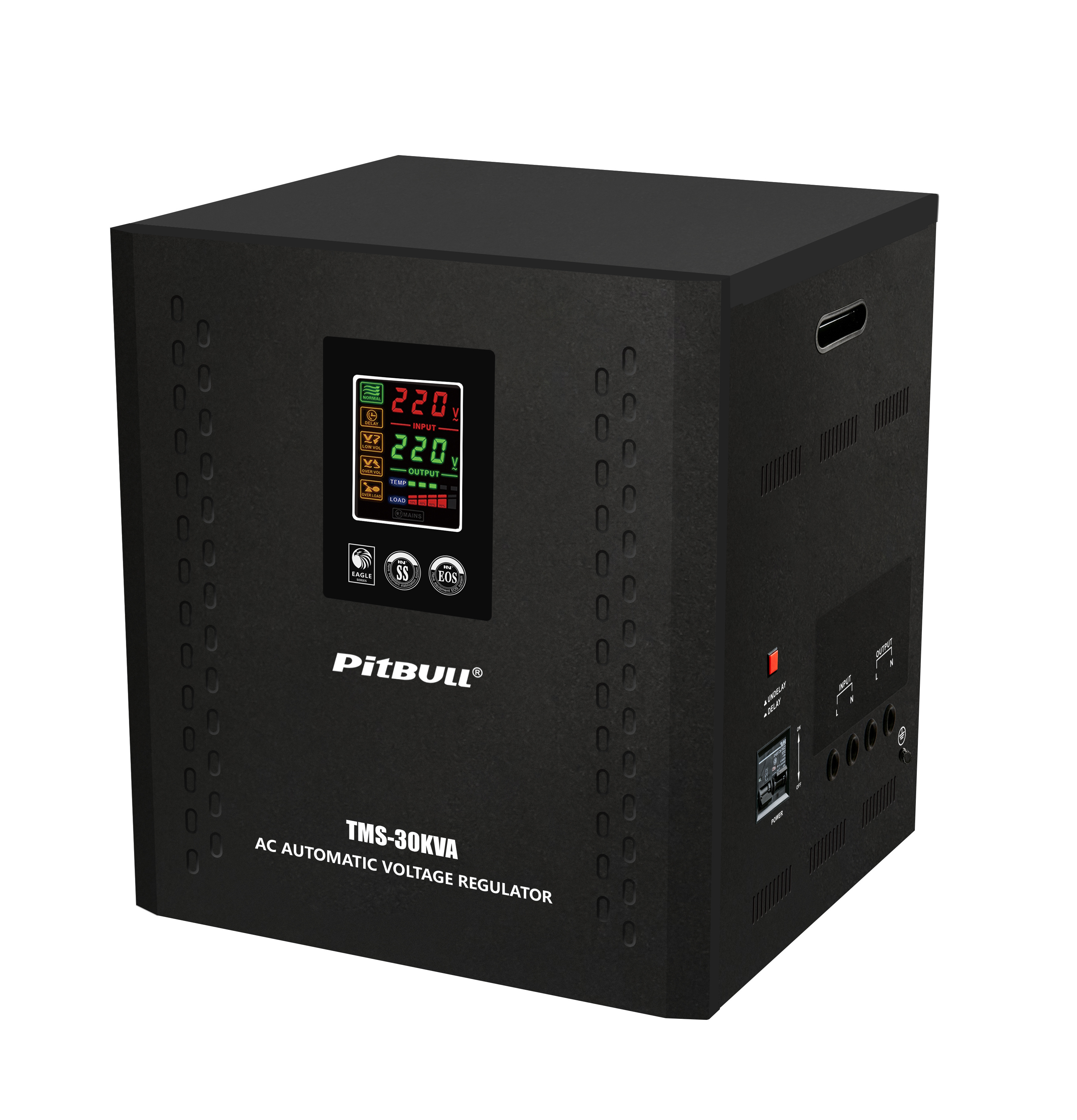

The product of this model is a 220V fully automatic voltage regulator,design of LED digital display, southeast Asian style and
appearance .it is characterized by stable work, high pressure regulation speed and wide voltage regulation range. |
|
|
|
|
||||
|
APPLICATION
|
It is widely used in various industries, small office equipmentrefrigerator, electric fan, computer, pump, air conditioner and
other household appliances. |
|
|
|
|
||||
|
Power Factor
|
≥0.9
|
|
≥0.9
|
≥0.9
|
|
||||
|
Control
|
7 relays
|
|
6 relays
|
5 relays
|
|
||||
|
Digital display
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
|
||||
|
Temperature protection
|
yes
|
|
yes
|
yes
|
|
||||
|
Short circuit&over load
|
air-switch/（fuse：500-2000va）
|
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
|
||||
|
Cooling type
|
FAN/Vents
|
|
FAN/Vents
|
FAN/Vents
|
|
||||
|
Efficiency
|
AC 97%
|
|
AC 97%
|
AC 97%
|
|
||||
|
Temperature
|
.-20°~55℃
|
|
.-20°~55℃
|
.-20°~55℃
|
|
||||
|
Humidity
|
<90
|
|
<90
|
<90
|
|
||||
