Quick Details
-
Warranty:
-
1 Years
-
Model Number:
-
VS-314
-
Car Make:
-
all
-
Output:
-
Switching Transducer
-
Item:
-
Seat Occupancy Sensor
-
Demension:
-
Customized
-
Thickness:
-
0.15mm~ 1mm
-
Minimum Active Area:
-
5mm * 5mm
-
Pressure Range:
-
0.1N~100N per square cm
-
Output Singal:
-
Resistance ( R)
-
Great Durability:
-
10 million activations
-
Certificate:
-
ISO9001-2008
Quick Details
-
OE NO.:
-
123
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VMANX
-
Warranty:
-
1 Years
-
Model Number:
-
VS-314
-
Car Make:
-
all
-
Output:
-
Switching Transducer
-
Item:
-
Seat Occupancy Sensor
-
Demension:
-
Customized
-
Thickness:
-
0.15mm~ 1mm
-
Minimum Active Area:
-
5mm * 5mm
-
Pressure Range:
-
0.1N~100N per square cm
-
Output Singal:
-
Resistance ( R)
-
Great Durability:
-
10 million activations
-
Certificate:
-
ISO9001-2008
Specification
|
Title:
|
Customized Safe Car Pressure Seat Occupancy Sensor
|
|
|
Attribute Parameter
|
|
|
|
Operating Voltage：
|
Min 0/Max 5.5V
|
|
|
Working Current：
|
Min 0/Max 50mA
|
|
|
Peak Current：
|
Min 0/Max 100mA
|
|
|
Non Triggering Resistance（non load）：
|
Min 10.0K/Max ∞Ω
|
|
|
Trigger Resistance（carrying human body）：
|
Min 0/Max 100Ω
|
|
|
Insulation Resistance（no load）：
|
Min 10/Max 20MΩ
|
|
|
Technical Parameter
|
1. Heat flow analysis, design and development.
|
|
|
Tevture of Material：
|
PET
|
|
|
Material Surface Thickness：
|
0.125~0.188mm
|
|
|
Output Signal：
|
Resistance＜100Ω
|
|
|
Film Thickness：
|
0.4~0.65mm
|
|
|
Gum Back：
|
3M Glue
|
|
|
Ambient Temperature：
|
-40℃~+80℃
|
|
|
Persistence：
|
＞200000
|
|
|
Special Test Weight
|
|
|
|
Single Point Pressure Range:
|
＜50g 100%Non Conductive
|
|
|
Single Point Pressure Range:
|
＞200g 100%Conductive
|
|
|
Connector：
|
According To Customer Requirements
|
|
|
Application Program:
|
Safety Belt Reminder(SBR) Taxi Automatic Message Accounting System Sensors For Airbags Medical Bed Massage Chair Office Chair
|
|
|
|
||

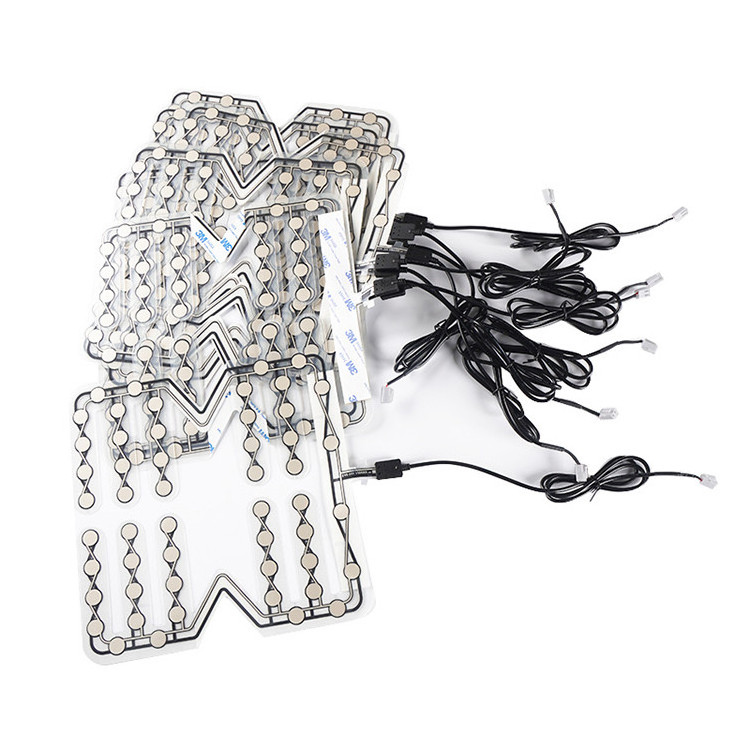

Details Images
Features and advantages:
1. It can detect whether someone is sitting,Output the signal to the safety belt warning device.
2. Long service life.
3. Various forms (single point, double point trigger, can be designed according to customer requirements, etc.)
