When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that
the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the
generator set; when the mains power returns to normal, it will automatically switch to restore the mains power supply to the load
after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling operation.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NLD
-
Model Number:
-
NLDQ5-100~3200, NLDQ5
-
Rated Current:
-
100A~3200A
-
Working temperature:
-
-10 ~ +40℃
-
Poles Number:
-
3P/4P
-
Standard:
-
GB14048.1/.2 IEC60947-2
-
Mechanical Life:
-
20000 Times
-
Operation type:
-
Automatic Conversion
-
Product name:
-

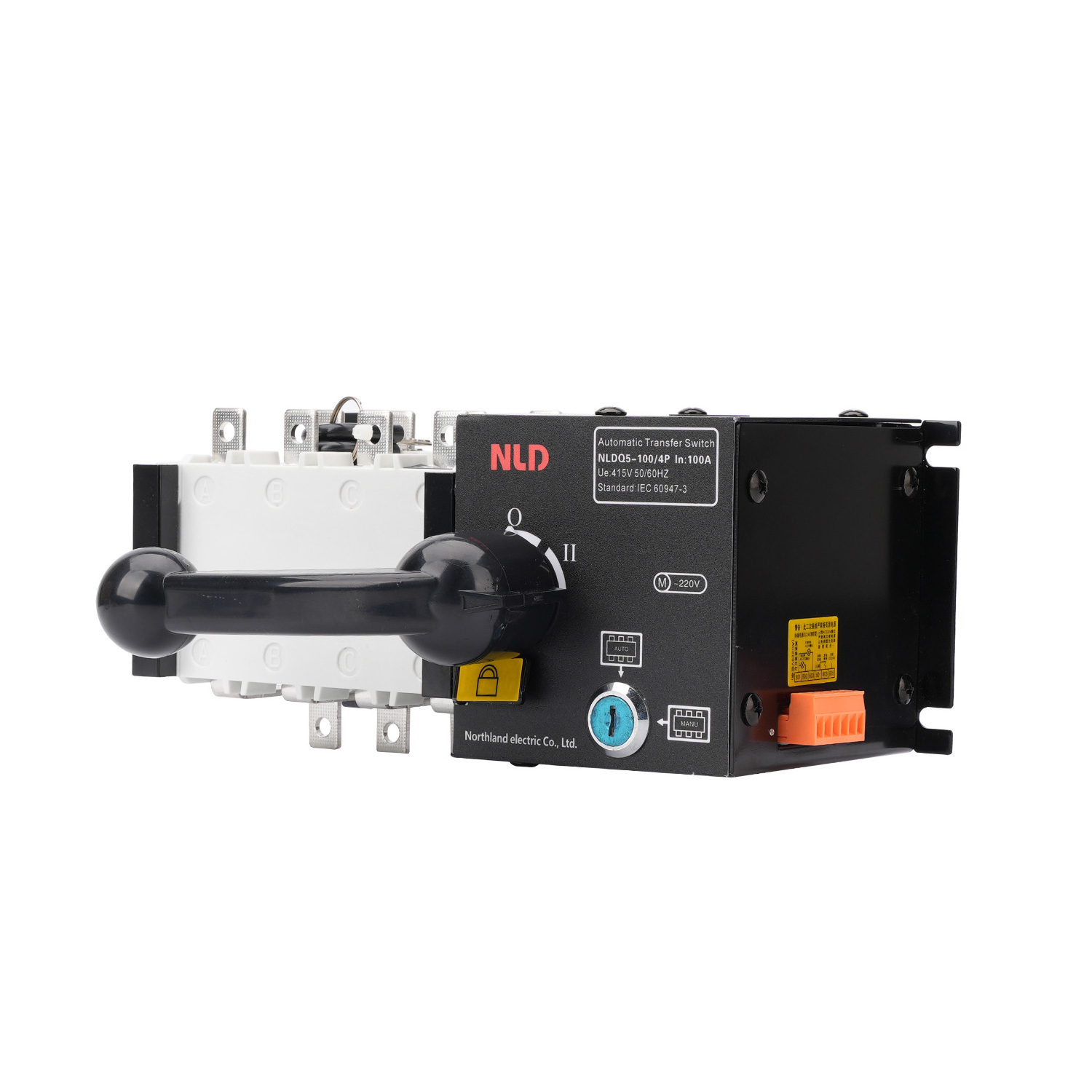

Dual Power Automatic Transfer Switch
-
Application:
-
Solar Pv System /Power equipment
-
Rated voltage:
-
400V/690V
-
Function:
-
Automatic Transfer Switch Generator ATS
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NLD
-
Model Number:
-
NLDQ5-100~3200, NLDQ5
-
Rated Current:
-
100A~3200A
-
Working temperature:
-
-10 ~ +40℃
-
Poles Number:
-
3P/4P
-
Standard:
-
GB14048.1/.2 IEC60947-2
-
Mechanical Life:
-
20000 Times
-
Operation type:
-
Automatic Conversion
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Application:
-
Solar Pv System /Power equipment
-
Rated voltage:
-
400V/690V
-
Function:
-
Automatic Transfer Switch Generator ATS
Product Paramenters
Product Paramenters
ATS Application
Automatic Transfer Switch (ATS) is used under conditions of AC660V 50/60Hz or DC250V. It is two-stage PC class type with electromagnetism drive structure, which can make fast load transfer (transfer time ≤80ms) of two power circuits. It can be widely used for national one-class load, for example: high buildings, post, telecommunications, coal mines, ships, industrial assembly lines, health care, military facilities etc. The two power circuits can be grid, auto start genset, storage battery etc.
When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the generator set; when the mains power returns to normal, it will automatically switch to restore the mains power supply to the load after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling operation.
When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the generator set; when the mains power returns to normal, it will automatically switch to restore the mains power supply to the load after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling operation.
Products Description
Products Description
ATS SWITCH FUNCTION
1. Self-input and self-restoring, Self-input without self-restoring, automatic or manual is all depends on you.
2. 2 Pole/3 Pole/4 Pole all you can choose
3. Running parameter could be adjusted
4. Rated voltage of 690V/1000V,rated current is from 100 Amp to 3200 Amp
5. City power to City power City power to Generator
Application
NLDQ5 series ATS are mainly used for the state of a load, widely applicable to the fire, postal communication, hospital, hotels,Urban rail transport and high-rise buildings, industrial assembly line, television stations need electricity for the important parts. Main power Emergency Power can be power grids, with Self-excitation generator sets, battery, and so on.
Structure and characteristic
3. Running parameter could be adjusted
4. Rated voltage of 690V/1000V,rated current is from 100 Amp to 3200 Amp
5. City power to City power City power to Generator
Application
NLDQ5 series ATS are mainly used for the state of a load, widely applicable to the fire, postal communication, hospital, hotels,Urban rail transport and high-rise buildings, industrial assembly line, television stations need electricity for the important parts. Main power Emergency Power can be power grids, with Self-excitation generator sets, battery, and so on.
Structure and characteristic
NLDQ5 series automatic transfer switch is composed of switch is composed of switch body and controller. Adopt the electromagnetic driver, the working power of controller transfer is based on the main power and the standby power. AC220V power supply, without additional source. Switch body have an electrical or mechanical switch instruction as an isolation indicator function.
NOTE: For more detail information you wanna know, pls feel free contact with me. Thanks!
NOTE: For more detail information you wanna know, pls feel free contact with me. Thanks!
