Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AkuSense
-
Theory:
-
Optical sensor
-
Output:
-
Switching Transducer
-
Sensing type:
-
Diffuse reflection
-
Sensing distance:
-
100CM
-
Light source:
-
Infrared light LED(850nm)
-
Output type:
-
NPN/PNP Open-collector, ≤100mA(30V DC)
-
Indicator:
-
Output indicator: Orange; Motion indicator: Green;
-
Response time:
-
<1ms
-
Operating voltage:
-
10~30V DC±10%
-
Degree of protection:
-
IP 67
Quick Details
-
Mounting Type:
-
easy
-
Description:
-
photo electric sensor, Photocell Sensor
-

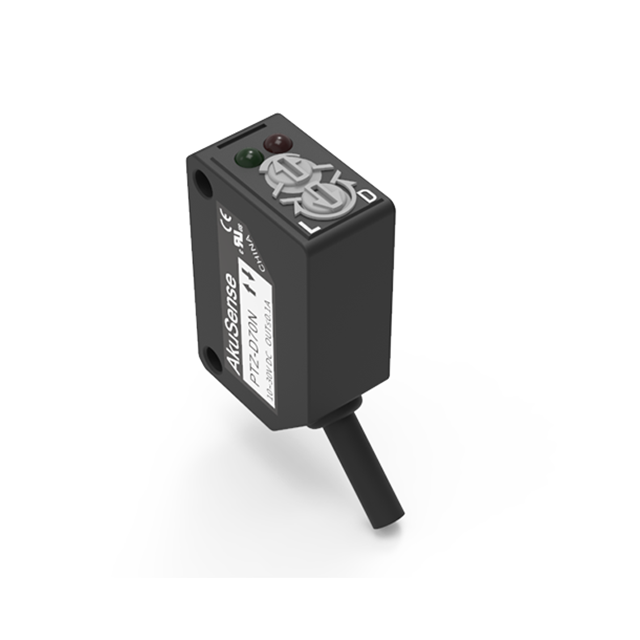

Model Number:
-
PTZ-D70N
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AkuSense
-
Theory:
-
Optical sensor
-
Output:
-
Switching Transducer
-
Sensing type:
-
Diffuse reflection
-
Sensing distance:
-
100CM
-
Light source:
-
Infrared light LED(850nm)
-
Output type:
-
NPN/PNP Open-collector, ≤100mA(30V DC)
-
Indicator:
-
Output indicator: Orange; Motion indicator: Green;
-
Response time:
-
<1ms
-
Operating voltage:
-
10~30V DC±10%
-
Degree of protection:
-
IP 67
| Feature |
♦Traditional square, enjoy great performance
♦Dual LED indicators (enables a clear view)
♦25.4mm standard hole gap with simple installation
| Specification |
|
Photoelectric Sensor Square Type PTZ Series |
|||||
|
Sensing type |
Disffuse reffection |
Limited reflection |
Thru-beam |
Retro-reflection |
|
|
Sensing distance |
100cm |
1~9cm |
2000cm |
1-400cm |
|
|
Beam size |
Φ75mm/1000mm |
Φ12mm/90mm |
Φ800mm/20m |
Φ200mm/4m |
|
|
Hysteresis |
≤20% |
≤10% |
|
||
|
Output type |
NPN/PNP Open-collector,≤100mA |
||||
|
Switch type |
Selectable L.on/D.on |
||||
|
Indicator |
Motion indicator:Green;Output indicator:Yellow |
||||
|
Response time |
0.5ms |
||||
|
Sensitivity adjustment |
Single turn rotational knob |
Single turn rotational knob(240°) |
Single turn rotational knob |
Single turn rotational knob |
|
|
Light source |
Red light LED |
||||
|
Operating voltage |
10-30V DC ±10% |
||||
|
No-load supply current |
≤25mA |
≤20mA |
Emitter≤20mA,Receiver≤15mA |
≤20mA |
|
|
Ambient luminance |
Sunlight≤1000Lux,Incandescent lamp≤3000Lux |
||||
|
Ambient temperature |
- 25 ℃ ~55 ℃ no freezing |
||||
|
Ambient humidity |
35~85%RH,No coagulating |
||||
|
Shock resistance |
100G(1000m/s²) |
||||
|
Degree of protection |
IP67 |
||||
|
Material |
ABS contain optic fiber(body);PMMA(lens) |
||||
|
Model No. |
NPN |
PTZ-D70N |
PTZ-X09N |
PTZ-TM20N |
PTZ-R400N |
|
PNP |
PTZ-D70P |
PTZ-X09P |
PTZ-TM20P |
PTZ-R400P |
|
