Quick Details
-
Model Number:
-
rocker switch
-
Max. Current:
-
20A
-
Mechanical Life:
-
500000
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
zhejiang
-
Brand Name:
-
CHYF
-
Model Number:
-
rocker switch
-
Max. Current:
-
20A
-
Mechanical Life:
-
500000
-
Certification:
-
CE
|
Product name
|

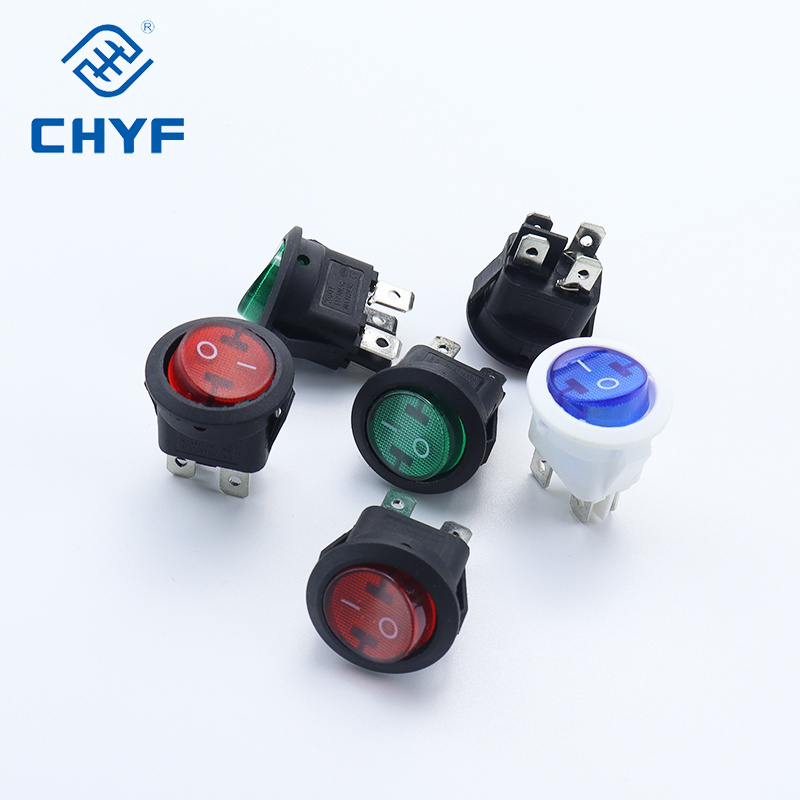

Rocker Switch
|
|
Switch rating
|
6A 250VAC;10A 125VAC;16A 12VDC
|
|
Terminal type
|
Pin terminal
|
|
Point resistanc
|
Max50MΩ
|
|
Isolation resistance
|
≥1000MΩ
|
|
Isolation intensity
|
1500VAC，50Hz/60Hz
|
|
Operating temperature
|
-25℃~+55℃
|
|
Mechanical life
|
More than 500000 times
|
|
Electrical life
|
More than 100000 times
|
|
Panel thickness
|
1~15mm
|
|
Operating pressure
|
Abou4N
|
|
Operation travel
|
About2mm
|
|
The material of contact
|
brass
|
|
Led type
|
High brightness LED lamp,cool
|
|
Luminous color
|
Red, Green, Blue, Yellow, White, Orange, Purple
|
|
Rated voltage
|
AC/DC 3V,5V,6V,12V,24,36V,48V,110V,220V
|
|
Rated current
|
≤20 mA
|
