Quick Details
-
Resolution:
-
1MP/2MP/3MP
-
NVR:
-
8ch with built-in 12.5" screen and wifi router
-
cameras:
-
8pcs waterproof wifi cameras
-
camera lens:
-
3.6mm Lens
-
night vision:
-
30m IR Distance
-
power supply:
-
8pcs 12V/1A powr adaptor
-
Warranty:
-
1 Year
-
Certificate:
-
FCC,CE,Rohs
-
P2P:
-
Yes
-
Product name:
-

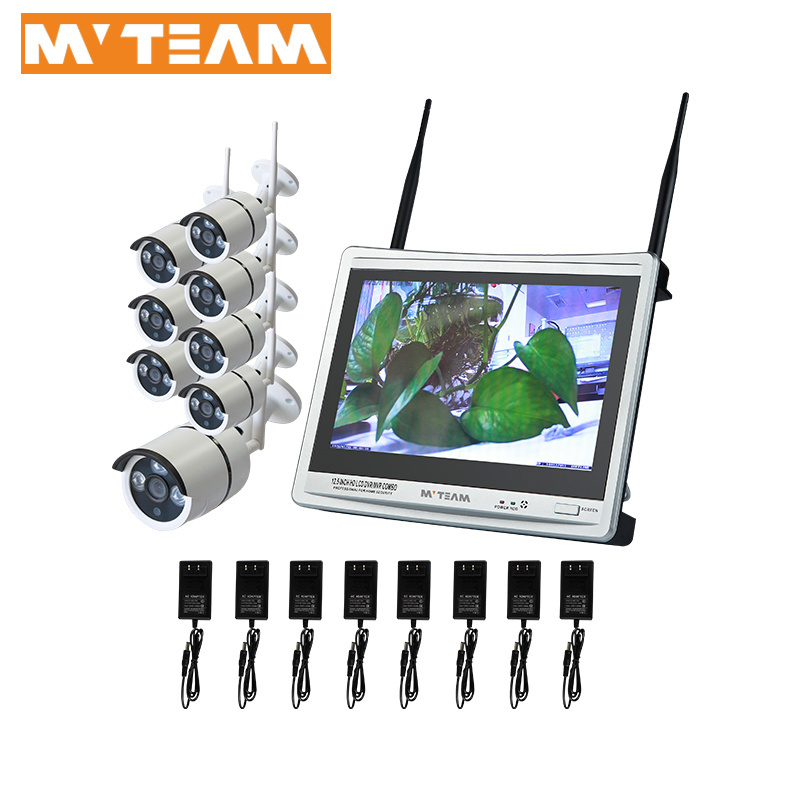

CCTV Wifi New 12.5" Screen 8 channel wireless nvr kit
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MVTEAM Or OEM
-
Model Number:
-
MVT-K08B
-
Resolution:
-
1MP/2MP/3MP
-
NVR:
-
8ch with built-in 12.5" screen and wifi router
-
cameras:
-
8pcs waterproof wifi cameras
-
camera lens:
-
3.6mm Lens
-
night vision:
-
30m IR Distance
-
power supply:
-
8pcs 12V/1A powr adaptor
-
Warranty:
-
1 Year
-
Certificate:
-
FCC,CE,Rohs
-
P2P:
-
Yes
-
Product name:
-
CCTV Wifi New 12.5" Screen 8 channel wireless nvr kit
CCTV Wifi 2017 New 12.5" Screen 8 channel wireless nvr kit
Specifications:
| Wireless NVR | ||
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 8CH |
| Network video input broadbank | 20Mbps | |
| AV (audio/video) output | HDMI input |
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p |
| AV CODEC Specification | Video Resolution | D1/720P |
| synch-playback | 8CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface |
1 adaptable RJ45 10M/100M,
2 WIFI interface |
| USB Interface | 3 USB 2.0 | |
| Network Control | Protocol |
UPnP (play&plug),SMTP (email survice),PPPoE (dial-up),
DHCP (Automatically obtain an IP address), etc… |
| Others | Power | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10 ℃ ~+55 ℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |
Wifi IP Camera Specs:
| Image Sensor |
1/4” Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Resolution | 1280 x 720 16 : 9 High Defination |
| Minimum illumination |
Color: 0.1 Lux;
B/W: 0.01 Lux |
| Shutter | 1/25s to 1/25,000s |
| Lens | 3.6mm |
| OSD | Date Time & Title |
| White Balance | Auto |
| Day&Night | Auto / Color / BW |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| Frame Specification | Three Streaming at the Same Time |
| H.264 128x720@30fps or below | |
| H.264 640x480@30fps or below | |
| S/N | > 39.1 Db |
| Interface | RJ45 / WIFI 802.11b/g/n |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10 ℃ to +50 ℃ / 30% to 80% RH |
| Storage Temperature/Humidity | -20 ℃ to +60 ℃ / 20% to 90% RH |
| Power Input | DC12V-1A |
| Power consumption | ≤6W |
| Size | 205(L)×70(W)×55 (H)mm |
| Weight | 500g |
| Level of Protection | IP66 |
Q1- Whether the wireless kit include hard disk?
A1: The kit come with all needed accessories except the hard disk,
We also can provide hard disk for customer,if you need,just let us know freely.
Q2- Whether the security system support network and mobile phone remote view?
A2: Yes, it can support network function.You can remote view the camera image from any where in the world by computer(IE browser & client software) and smartphone like: iPhone, Anroid etc.
the mobile phone view APP is ESEENET+ ,more details can be found in our weblink
http://www.mvteamcctv.com/news/How-to-remote-view-wireless-NVR-kit-on-mobile-phone.html
Q3- What is the maximum distance between NVR and Camera?
A3: The wireless system is a closed system, the signal is from NVR to Camera,
about the distance,theoretically,100m in open space and 30m barrier transmit distance.But the practical distance will depends on your environment.
Q4- Whether the NVR with wireless and Wired Ports?
A4:The NVR is a wireless NVR and at NVR side panel there is a RJ45 interface, if your NVR won't need connect network, you can use it connect to 1pc camera via Cat^5 cable
Q5- Can use a repeater to expand the distance?
A5: Can not
Q6- Do you have any certificates for the security equipment?
A6: Yes, all MVTEAM DVR kits are with CE, RoHS, FCC certificates for Europe and USA markets.
In addition, MVT-K04DH have been mass sell to Walmart in Brazil in 2012.
Q7- How about users feedback of the kit?
Welcome to check Customers feedback at below link:
http://www.mvteamcctv.com/news/Customers-feedback-about-MVTEAM-Wireless-NVR-Kit.html
Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.
Shipping: Based on the your demands to choose the best shipping way.
