Quick Details
-
Panel Size:
-
400*4480, 400*4480
-
Place of Origin:
-
China
-
Model Number:
-
LED MESH Screen 1
-
Brightness:
-
6100CD, 6100CD
-
IP Rating:
-
IP67, IP67
-
View Angle（H/V）:
-
120°(H)/120°(V)/140°(H)/140°(V), 120°(H)/120°(V)/140°(H)/140°(V)
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Color:
-
RGB
-
Panel Size:
-
400*4480, 400*4480
-
Place of Origin:
-
China
-
Model Number:
-
LED MESH Screen 1
-
Brightness:
-
6100CD, 6100CD
-
IP Rating:
-
IP67, IP67
-
View Angle（H/V）:
-
120°(H)/120°(V)/140°(H)/140°(V), 120°(H)/120°(V)/140°(H)/140°(V)
Products Description
Specification
|
Model
|
P31.25
|
P40
|
P50
|
P55
|
P62
|
P70
|
P100
|
P120
|
P150
|
||||||||
|
Pixel density
|
1024 points/sqm
|
540 points/sqm
|
400 points/sqm
|
333 points /sqm
|
250 points /sqm
|
200 points /sqm
|
100 points /sqm
|
66 points /sqm
|
44 points /sqm
|
||||||||
|
Point spacing (mm)
|
31*31
|
35*50
|
50*80
|
50*60
|
50*80
|
50*100
|
100*100
|
100*150
|
150*150
|
||||||||
|
Model size(mm)
|
400*4480
|
400*4480
|
400*6400
|
400*7680
|
400*10240
|
400*12800
|
800*19200
|
800*19200
|
1200*19200
|
||||||||
|
Model resolution
|
8*128
|
8*128
|
8*128
|
8*128
|
8*128
|
8*128
|
8*128
|
8*128
|
8*128
|
||||||||
|
Lamp bead arrangement
|
1/2/3/4 /6 National Star RGB 3-in-1 patch 3535 lamp beads
|
|
|
|
|
|
|
|
|
||||||||
|
Minimum viewing distance
|
＞7m
|
＞9m
|
＞10m
|
＞15m
|
＞20m
|
＞25m
|
＞30m
|
＞40m
|
＞50m
|
||||||||
|
Relative translucency
|
60%
|
70%
|
75%
|
80%
|
85%
|
90%
|
92%
|
95%
|
96%
|
||||||||
|
Screen weight
|
9.2kg/sqm
|
6kg/sqm
|
4.2kg/sqm
|
3.5kg/sqm
|
3kg/sqm
|
2.6kg/sqm
|
2.2kg/sqm
|
1.8kg/sqm
|
1.8kg/sqm
|
||||||||
|
Maximum power
|
480W
|
320W
|
240W
|
200W
|
180W
|
150W
|
120W
|
90W
|
66W
|
||||||||
|
Average Power consumption
|
160W
|
108W
|
80W
|
66W
|
60W
|
50W
|
40W
|
30W
|
22W
|
||||||||
|
Brightness
|
6100cd
|
3750cd
|
2000nits
|
1800nits
|
1200nits
|
1000nits
|
500nits
|
350nits
|
250nits
|
||||||||
|
The Best View
|
120°（H）/120°（V)/140°（H）/140°（V)
|
|
|
|
|
|
|
|
|
||||||||
|
Refresh Rate
|
＞1920Hz
|
|
|
|
|
|
|
|
|
||||||||
|
IP code
|
IP67
|
|
|
|
|
|
|
|
|
||||||||
|
Working voltage
|
DC 5V/12V
|
|
|
|
|
|
|
|
|
||||||||
|
Note
|

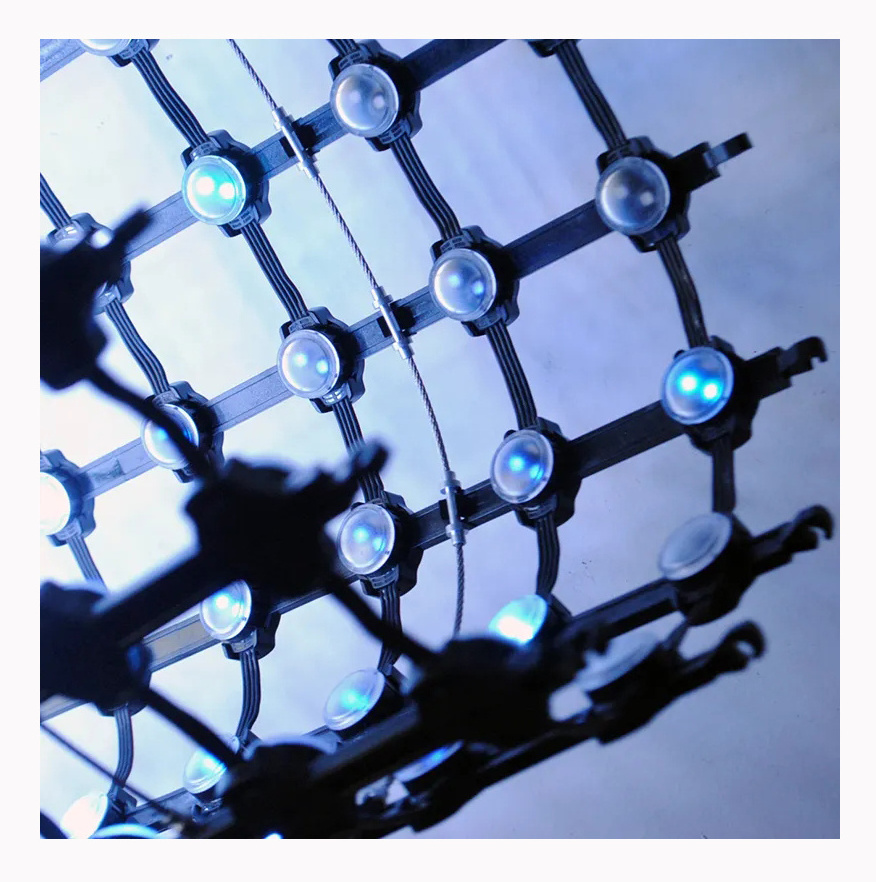

LED Mesh Screen Features:
Close viewing effect is poor, display pixels have large point spacing, Suitable for Viewing from a distance of 10 meters, use in low brightness outdoor environment, |
|
|
|
|
|
|
|
|
||||||||
Spcing Introduction:
1.P31.25 means 31*31mm center distance bettween two pixels,1024pcs per square meter
1.P31.25 means 31*31mm center distance bettween two pixels,1024pcs per square meter
2.P40 means 35*50mm center distance bettween two pixels, 540 pcs per square meter
3.P50 means 50*80mm center distance between two pixels,400pcs per square meter
3.P55 means 50*60mm center distance between two pixels,333pcs per square meter
5.P62 means 50*100mm centerdistance between two pixels, 250 pcs per square meter
6.P100 means 100mm center distance between two pixels, 100pcs per square mete
3.P55 means 50*60mm center distance between two pixels,333pcs per square meter
5.P62 means 50*100mm centerdistance between two pixels, 250 pcs per square meter
6.P100 means 100mm center distance between two pixels, 100pcs per square mete
Details Images
Advantages
Compared with the traditional LED screen, the advantages of the LED Mesh Screen:
1.
High transparent effect, does not take up space, ultra-thin, ultra-light
* The perspective rate can reach 55%~95%, ensuring the original lighting and viewing Angle needs of the glass facade and curtain wall, and the wind resistance effect is good
* Thin body (only 15mm), light weight (only 2~8 kg/m2)
2. Folding, arbitrary bending, minimal installation, maintenance, no steel structure
* Flexible and lightweight, changeable shape, easy to install and maintain. The product can be freely combined to adapt to a variety of shapes to meet the needs of a variety of creative displays, very artistic and creative, the card strip and pixel light points can be taken out separately, easy to maintain the screen quickly.
* The screen is ultra-light, directly using steel wire suspension, without complex steel structure.
* The front and back of the screen are IP67 waterproof technology, and the front and tail belts are quickly matched
3. Cost saving, the price is only one-fifth of the traditional screen
* By optimizing the structure, abandon the bulky box of the traditional screen, and make targeted changes to the process technology, lamp bead packaging, and control system.
4. Energy saving and environmental protection
* Air duct self-cooling, no need to cool by air conditioning
Applications
Landscape lighting / Facade lighting / Bridge lighting / Holiday lighting / Stage lighting decoration
