- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GIE
-
Model Number:
-
SVC 2000va voltage regulator
-
model typle:
-
servo typle SVC 1000va automatic voltage regulator
-
Input voltage:
-
150V-250V
-
Output voltage:
-
220V±3%, 110V±3%
-
Frequency:
-
50/60Hz
-
Response time:
-
< 1sec. (against 10% input voltage deviation)
-
Efficiency:
-
> 90%
-
Relative humidity:
-
< 90%
-
Power factor cos:
-
0.8
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GIE
-
Model Number:
-
SVC 2000va voltage regulator
-
model typle:
-
servo typle SVC 1000va automatic voltage regulator
-
Input voltage:
-
150V-250V
-
Output voltage:
-
220V±3%, 110V±3%
-
Frequency:
-
50/60Hz
-
Response time:
-
< 1sec. (against 10% input voltage deviation)
-
Efficiency:
-
> 90%
-
Relative humidity:
-
< 90%
-
Power factor cos:
-
0.8
Product Description

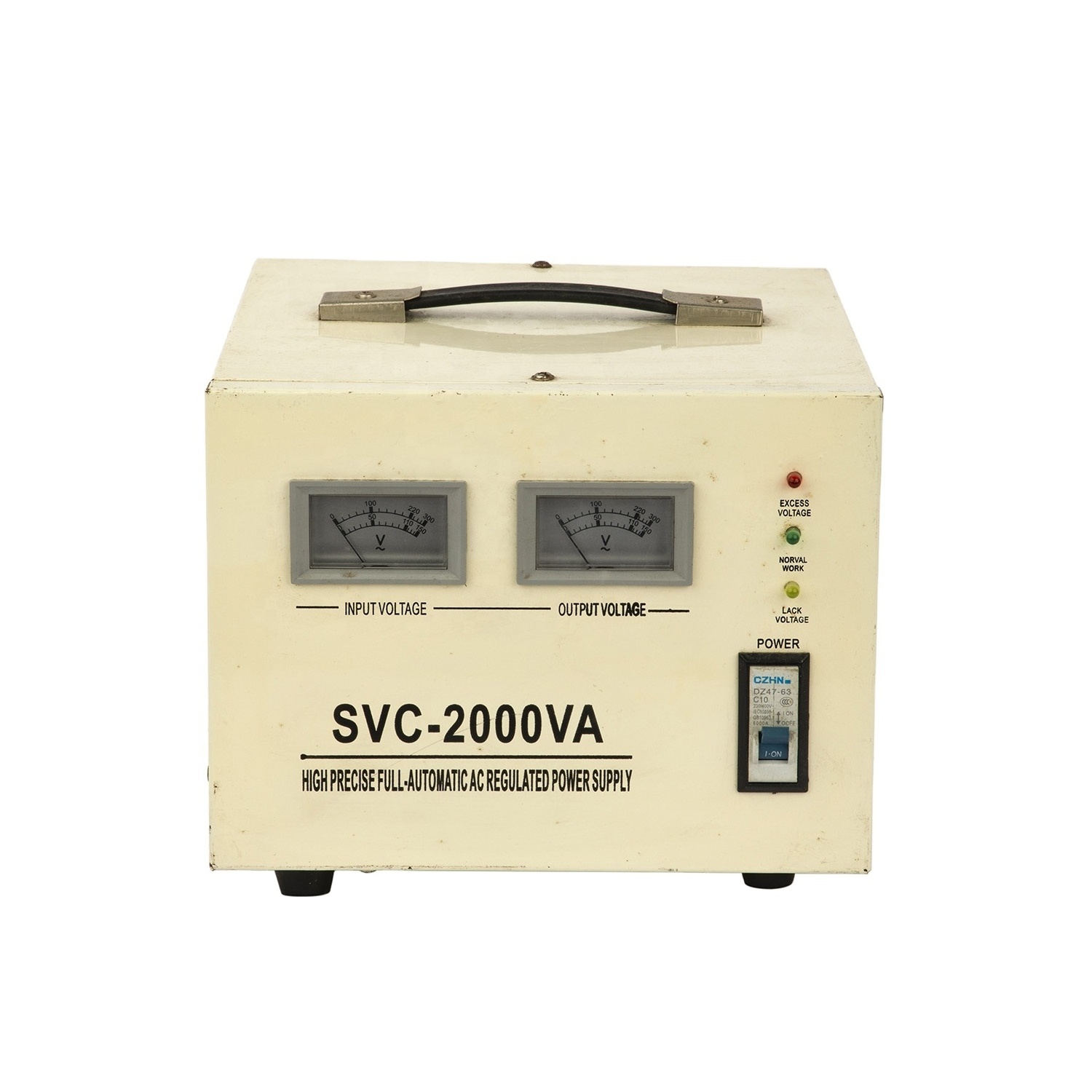

Servo typle SVC 2000va automatic voltage regulator
Description:
SVC automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and
servomotor as well. It has excellent features, such as small waveform distortion, high efficiency,
high power factor, free from the effect or frequency variation of supply. It can be widely used in most
situations where the voltage stabilization is required.
Specification:
| Input voltage | 150V-250V |
| Output voltage | 220V±3%, 110V±3% |
| Frequency | 50/60Hz |
| Response time | < 1sec. (against 10% input voltage deviation) |
| Efficiency | > 90% |
| Ambient temperature | -10~±40°C |
| Relative humidity | < 90% |
| Waveform distortion | Non-lack fidelity waveform |
| Power factor cosφ | 0.8 |
| Insulation resistance | > 5MΩ |
Outline and Package:
| Type | Outline (cm) | Weight (kg) | Qty/CTN | ||
| L | W | H | |||
| SVC-500VA | 18.5 | 15 | 12.5 | 3.8 | 4PCS |
| SVC-1000VA | 21 | 18 | 14.5 | 6 | 4PCS |
| SVC-1500VA | 21 | 18 | 14.5 | 6.5 | 4PCS |
| SVC-2000VA | 27.5 | 23.5 | 18.5 | 9.5 | 1PC |
| SVC-3000VA | 29 | 23 | 22 | 13 | 1PC |
| SVC-5000VA | 45 | 24 | 18.5 | 19 | 1PC |
| SVC-7500VA | 47 | 26 | 22 | 35 | 1PC |
| SVC-10000VA | 47 | 26 | 22 | 37 | 1PC |
| SVC-15000VA | 42 | 38 | 73 | 69 | 1PC |
| SVC-20000VA | 42 | 38 | 73 | 72 | 1PC |
| SVC-30000VA | 42 | 38 | 83 | 90 | 1PC |
| SVC-5kVA | 28 | 30 | 46 | 20 | 1PC (Cabinet) |
| SVC-10kVA | 44 | 32 | 56 | 30 | 1PC (Cabinet) |
