Passed ISO9001: 2015 quality management system certification, and obtained major national safety certifications. It has internationalized, standardized and standardized integrated management to manufacture safe products.
- Product Details
- {{item.text}}

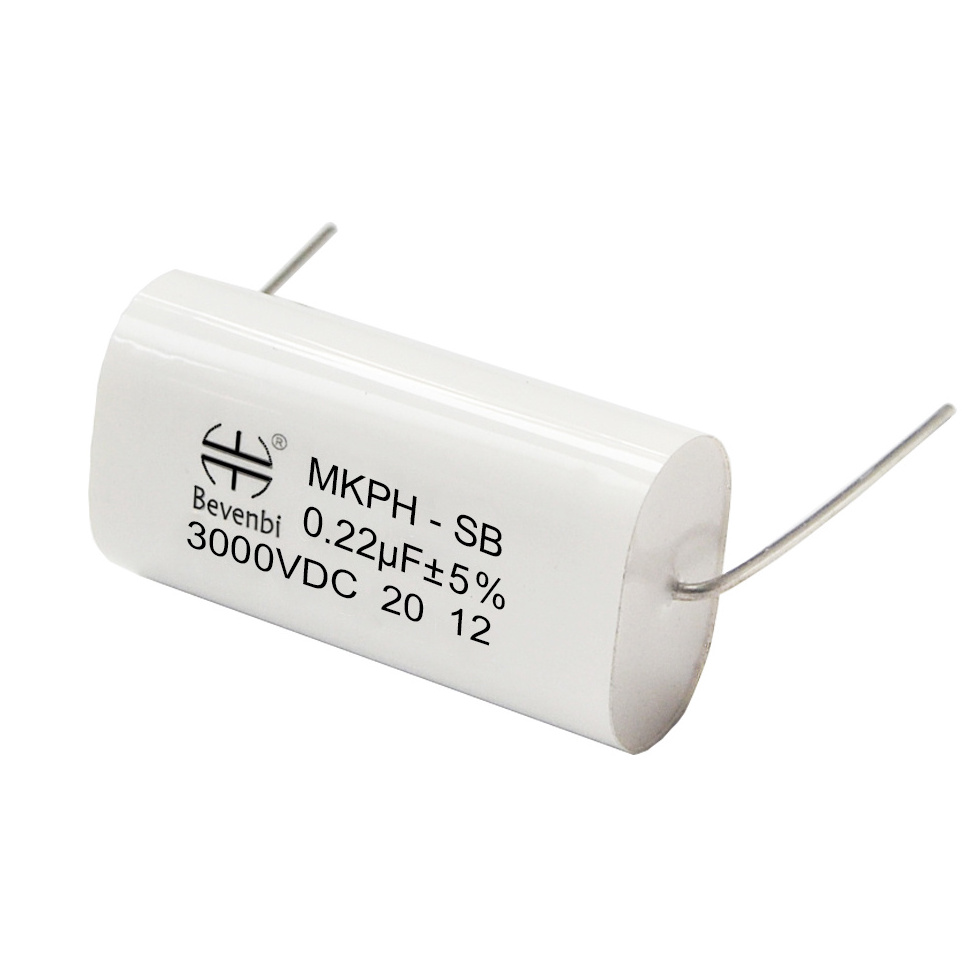

Quick Details
-
Product name:
-
MKPH-SB
-
Reference standard:
-
GB/T17702
-
Structure:
-
metallized self-healing DC link filter capacitor
-
voltage range:
-
600VDC~3000VDC
-
Dissipation factor:
-
Tg<=0.0008 F=50KHz
-
Load life:
-
100000H
-
Size:
-
40*30*43mm
-
Brand:
-
Bevenbi
-
Value:
-
0.22uf
-
Voltage:
-
3000V
-
Description:
-
Snubber protection capacitor
-
Cross Reference:
-
0.22UF3000V, 40*30*43mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Bevenbi
-
Model Number:
-
MKPH-SB
-
Product name:
-
MKPH-SB
-
Reference standard:
-
GB/T17702
-
Structure:
-
metallized self-healing DC link filter capacitor
-
voltage range:
-
600VDC~3000VDC
-
Dissipation factor:
-
Tg<=0.0008 F=50KHz
-
Load life:
-
100000H
-
Size:
-
40*30*43mm
-
Brand:
-
Bevenbi
-
Value:
-
0.22uf
-
Voltage:
-
3000V
-
Description:
-
Snubber protection capacitor
-
Cross Reference:
-
0.22UF3000V, 40*30*43mm
Specifications
|
Reference Standard
|
GB/T17702
|
|
|
Capacitance
|
0.01~4.7u F
|
|
|
Structure
|
Metallized self- healing DC-Link filter capacitor,Dry type
|
|
|
Encapsulation
|
Expoxy resin,wite mylar tape expoxy resin
|
|
|
Capacitance Tolerance
|
±5% (J) ± 10% (K)
|
|
|
Voltage
|
600V .AC~3000V .AC
|
|
|
Over Voltage
|
1.5Un/10s
|
|
|
Rated Effective Current
|
20~100A
|
|
|
Maximum Permissible Current
|
1.2In ( 60Hz )1.15In ( > 60Hz )
|
|
|
tg δ
|
tg δ ≤0.0008 ( 10kHz 20℃ )
|
|
|
Insulation resistance
|
CxRs≥5000s(23℃,100vdc,1min)
|
|
|
Withstand current shock
|
> 200V/us
|
|
|
Operating Temperature
|
-40℃~85℃/105℃
|
|
|
Max. Altitude
|
<2000m
|
|
|
Lifetime Expectancy
|
100000h ( 0h.s<70℃ )
|
|
|
Warm tip:
Note:lt should take consideration regarding to convectional cooking and outter insulation as long as the height is exceed 2000m.
|
|
|
Product Details
product advantages
1.Can withstand high voltage current
2.High pressure and overpressure resistance up to 1.5 times
3.Self-healing
4.Good stability
5.High reliability
6.Flame retardant
7.High insulation resistance
8.Good frequency characteristics
9.Low loss and low temperature rise
2.High pressure and overpressure resistance up to 1.5 times
3.Self-healing
4.Good stability
5.High reliability
6.Flame retardant
7.High insulation resistance
8.Good frequency characteristics
9.Low loss and low temperature rise
Product Features
Non-inductive winding with high temperature resistantmetallized polypropylene film ，special metal spray，mylar tape encapsulation，flame retardant epoxy potting ，copper nut terminal，With small size, low stray inductance,high current capability，good stability characteristics .Widely used in all kinds of medium and high frequencyelectronic equipment for LC resonance . Easy and convenientinstallation , flexible collocation。
WHY CHOSSE BEVENBI
Safety Quality Certification
Production team
We are a manufacturer and have our own production team to control the material and quality of the products. Guarantee the lowest price, best quality and shorter shipping time.Products with quality problems within 1-5 years can be replaced free of charge
Strong R & D team
We have a professional R & D team and have more than ten years of R & D experience in the capacitor component industry. We can design specifications according to the needs of customer service and provide capacitor usage solutions.
Strong production
support capability
Has a large number of international advanced production equipment, first-class production materials. The plant area is 2500 square meters, and the annual production capacity of 100000000pcs has a large inventory and provides 24-hour after-sales service.
buyer feedbacks
Our equipment
Business cooperation
Attend a fair
Packaging & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1:
We are the professional factory in China.Focus on high-end capacitor manufacturing.
Q2: What is the material of your products?
A2: The material is metallized film for capacitors used Grade A+ and imported fromGermany . We can also choose material as customers' requirement.
Q3: How can us get some samples ?
A3: We are honored to offer you samples. if you need!
Q4: How does your factory do regarding quality control?
A4: "Quality is priority. All people always attach great importance to quality controlling fromthe very beginning to the very end. Our factory has gained ISO9001;ROSH authentication,We arethe National High-Tech Enterprise.We have the professional technical personnel team,advancedequipments;Skilled production technology by ten years.
Q5: What is the delivery time?
A5:
For samples, the lead time is about 7 days. For mass production, the lead time is 10-15 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
Q2: What is the material of your products?
A2: The material is metallized film for capacitors used Grade A+ and imported fromGermany . We can also choose material as customers' requirement.
Q3: How can us get some samples ?
A3: We are honored to offer you samples. if you need!
Q4: How does your factory do regarding quality control?
A4: "Quality is priority. All people always attach great importance to quality controlling fromthe very beginning to the very end. Our factory has gained ISO9001;ROSH authentication,We arethe National High-Tech Enterprise.We have the professional technical personnel team,advancedequipments;Skilled production technology by ten years.
Q5: What is the delivery time?
A5:
|
