Quick Details
-
Maximum diameter:
-
350mm-500mm saw blade
-
Performance:
-
Good and stable
-
Maximum cutting thickness:
-
80-120mm
-
Maximum Processing Size:
-
3200x2000mm
-
Power of Main Motor:
-
11 KW (15kw is optional)
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
220
-
Production Capacity:
-
100
-
Maximum diameter:
-
350mm-500mm saw blade
-
Performance:
-
Good and stable
-
Maximum cutting thickness:
-
80-120mm
-
Maximum Processing Size:
-
3200x2000mm
-
Power of Main Motor:
-
11 KW (15kw is optional)

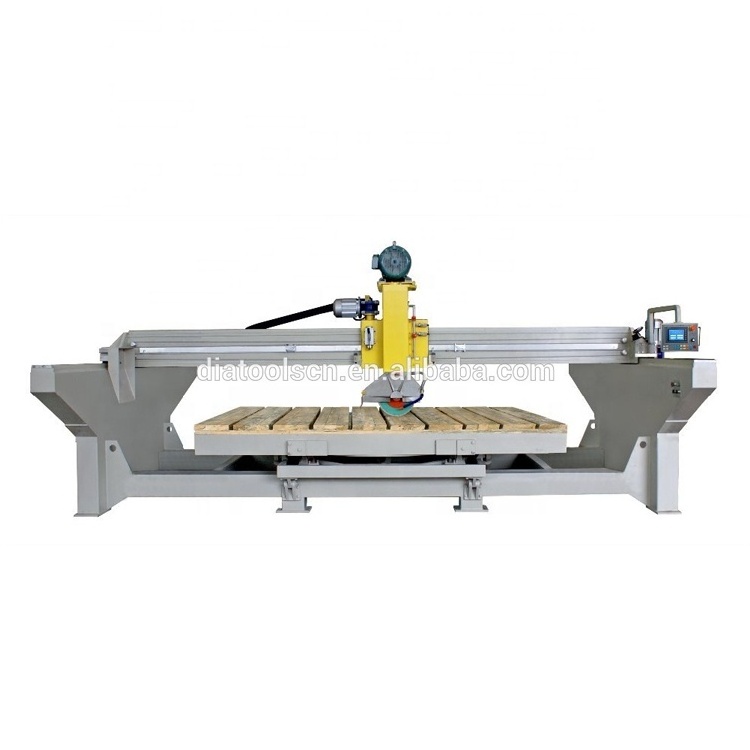

This machine is used for marble, granite and quartz slab cutting with the technology of microcomputer control,infrared cutting,and hydraulic rotation.The working table can rotate from 0-360 degree in the horizontal direction, and can rotates from of 0-85 degree in the vertical direction.
It made by one-piece structure so it can be installed with easy and save the cost. The cutting size is with the advantages of high precision and easy to operate etc.
To keep the high quality, the brand of the Electrical components we used mostly is from Japan , for example
HItachi
,
Omron
,
Mitsubishi
and
NSK
. The other is from Autonics and Schneider .
Wooden Package
Packing size: 5800x2250x2000mm (LxWxH)
1x20 feet GP container for 1 set of Stone Automatic Cutting Machine
1x40 feet GP container for 2 sets of Stone Automatic Cutting Machine
Specification
|
Maximum Blade Diameter |
Ø350~Ø500mm |
|
Maximum Processing Size |
3200×2000mm |
|
Maximum Cutting Thickness |
80-120mm |
|
Maximum Worktable Tilting Angle |
0~85° |
|
Rotation Angle of Worktable |
45°,90°,180°,270°,360° |
|
Power of Main Motor |
11 KW (15kw is optional) |
|
Cutting Thickness |
0~80 mm |
|
Machine Dimensions (L×B×H) |
5850*4200*2280 mm |
|
Gross Weight |
6000 KG |
