Quick Details
-
Model Number:
-
JY-450ST
-
After-sales Service Provided:
-
Overseas service center available
-
Mold Supplying:
-
Yes
-
Online Service:
-
Yes
-
Keyword:
-

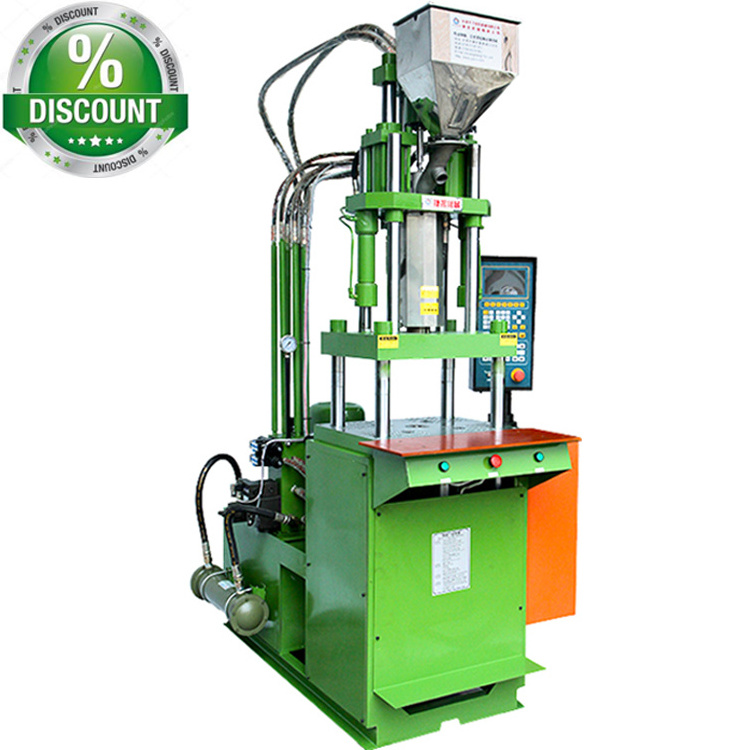

Cable Making Machine
-
Injection Weight:
-
120 grams
-
Platen Size:
-
580*430mm
-
Screw Diameter:
-
30/32/35mm
-
Distance Between Tie Bere:
-
410*250mm
-
Machine Weight:
-
2000kg
-
MACHINE DIMENSION:
-
1.92*1.3*2.3m
Quick Details
-
Usage:
-
plastic injection molding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
jieyang
-
Model Number:
-
JY-450ST
-
After-sales Service Provided:
-
Overseas service center available
-
Mold Supplying:
-
Yes
-
Online Service:
-
Yes
-
Keyword:
-
Cable Making Machine
-
Injection Weight:
-
120 grams
-
Platen Size:
-
580*430mm
-
Screw Diameter:
-
30/32/35mm
-
Distance Between Tie Bere:
-
410*250mm
-
Machine Weight:
-
2000kg
-
MACHINE DIMENSION:
-
1.92*1.3*2.3m
| INJECTION UNIT | mm | Φ30 | Φ32 | Φ34 | ||
| Screw Diameter | ||||||
| cm3 | 81 | 92 | 120 | |||
| Theoretical Injection Volume | ||||||
| g(oz) | 74(2.6) | 84(3.0) | 110(106) | |||
| Injection Weight(PS) | ||||||
| cm3/sec | 62.5 | 71 | 95 | |||
| Injection Rate | ||||||
| tons | 4.45 | 4.45 | 4.45 | |||
| Nozzle Comtact Force | ||||||
| kg/cm2 | 1171 | 996 | 820 | |||
| Max.Injection Pressure | ||||||
| r.p.m | 0~190 | |||||
| Screw Speed Rotation | ||||||
| mm | 190 | |||||
| Nozzle Out From Platens | ||||||
| CLAMPING UNIT | tons | 45 | ||||
| Clamping Force | ||||||
| mm | 200 | |||||
| Clamping Stroke | ||||||
| mm | 220/70 | |||||
| Min.Mold Thickness | ||||||
| mm | 420/270 | |||||
| Max.Open daylight | ||||||
| mm | 410*250 | |||||
| Distance Between Tie Bars | ||||||
| mm | 580*430 | |||||
| Platen Size | ||||||
| mm | 35 | |||||
| Ejector Distance | ||||||
| tons | 1.76 | |||||
| Ejector Force | ||||||
| OTHERS | kg/cm2 | 140 | ||||
| Max. Hydaulic Pressure | ||||||
| L | 130 | |||||
| Oil Tank Capacity | ||||||
| kW(HP) | 5.5(7.5) | |||||
| Pump Heating Power | ||||||
| kW | 2.8 | |||||
| Heater Power | ||||||
| L*W | mm | 1.7*1.2 | ||||
| Machine Dimension | H | mm | 3 | |||
| tons | 2 | |||||
| Machine Weight | ||||||
| Machine working video on Youtube | |
| Small cable products plastic injection machine | https://youtu.be/g53gokTvU1w |
| Power cord cable plastic injection machine | https://youtu.be/4ufFj1Bh42E |
| Single sliding table plastic injection machine | https://youtu.be/q9I8FX4ZHi8 |
| Double sliding table plastic injection machine | https://youtu.be/MgUSY_YvUN4 |
| Rotary table plastic injection machine | https://youtu.be/liVuOBQW3uQ |
| Horizontal plastic injection machine | https://youtu.be/IaOT-smkr78 |
| Double slider horizontal plastic injection machine | https://youtu.be/bHlI36cN83A |
Factory direct, more size can be customized according to your needs! Eason Chu
