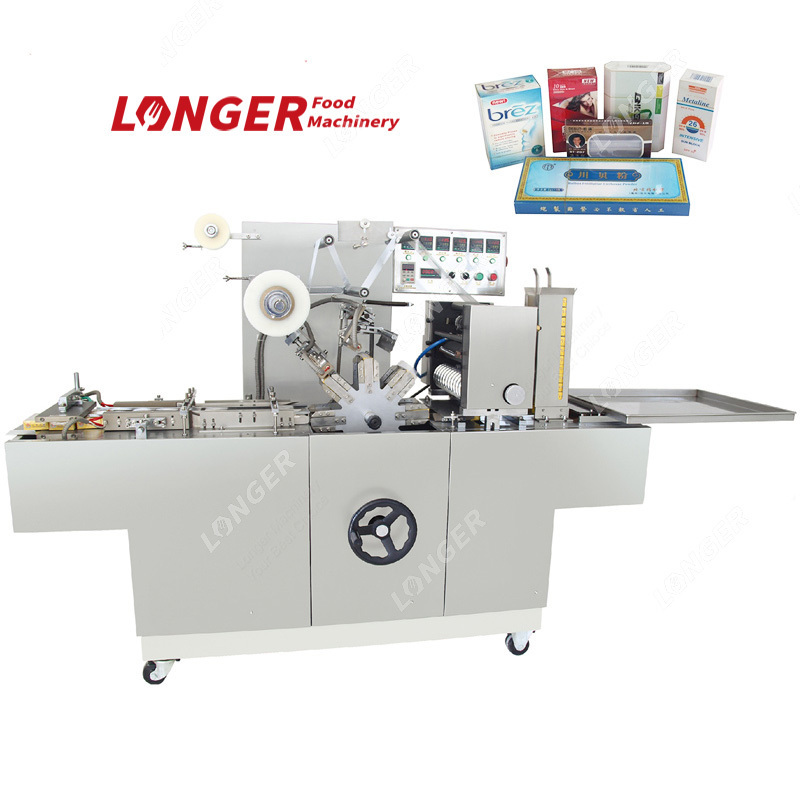

LGBTB-350 Automatic Perfume Box Bopp 3D Pack Packing Condoms Box Cellophane Wrapping Machine

LGBTB-350 Automatic Perfume Box Bopp 3D Pack Packing Condoms Box Cellophane Wrapping Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220 V

Place of Origin:: Henan, China

Brand Name:: LONGER FOOD MACHINERY

Dimension(L*W*H):: (L)2000*(W)800*(H)1400mm

Weight:: 600 KG

Certification:: CE ISO9001

Marketing Type:: Hot Product

Machine Name:: Perfume Box Bopp 3D Packing Condom Box Cellophane Wrapping Machine

Packing Material:: Film and gold tear tape

Packing Speed:: 30~60 boxes/min

Max.Packing Size:: (L)300*(W)120*(H)60mm

Power:: 5 Kw

Quick Details

Packaging Type:: Film

Packaging Material:: Bopp Film

Driven Type:: Electric

Voltage:: 220 V

Place of Origin:: Henan, China

Brand Name:: LONGER FOOD MACHINERY

Dimension(L*W*H):: (L)2000*(W)800*(H)1400mm

Weight:: 600 KG

Certification:: CE ISO9001

Marketing Type:: Hot Product

Machine Name:: Perfume Box Bopp 3D Packing Condom Box Cellophane Wrapping Machine

Packing Material:: Film and gold tear tape

Packing Speed:: 30~60 boxes/min

Max.Packing Size:: (L)300*(W)120*(H)60mm

Power:: 5 Kw

Product Description

Machine's Instruction:

This c ondom box cellophane wrapping machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles. With new-type of double safeguard, no need to stop the machine, other spare parts will not be damaged when the machine runs out of step.. Original unilateral hand swing device to prevent adverse shaking of the machine, and the non-rotation of the hand wheel when the machine keeps running to secure the security of the operator. No need to adjust the height of worktops on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.

Automatic Grade: Automatic Driven Type: Electric Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc. - mainly single box

Product Application

1,Medical Industry

2,Food Industry

3,Fast Selling Industry

4,Hardware Industry

5,Beverage Industry

6,Daily Chemical Industry

Machine's Technical Data

Model	LGBTB-350
Packaging material	film and gold tear tape
Packing speed	30～60 boxes/min
Max.package size	(L)300(W)120(H)60mm
Power	220V 50Hz 5kw
Machine weight	600kg
Machine dimensions	(L)2000(W)800(H)1400mm

LGBTB-350 Machine's Component List:

NO	Name	Quantity
1	Breaker	1
2	Breaker	1
3	Breaker	1
4	Auxiliary relay	3
5	Auxiliary relay	1
6	Solid state relay	6
7	Temperature controller	6
8	Inverter	1
9	Counter	1
10	Emergency	1
11	Button	1
12	Small button	6
13	Approach switch	1
14	Lever Button	2

LGBTB-350 Machine's Spare Parts:

Cam transmission

Easy tearing groove

Electrical box

Folding knives

Membrane electrostatic eliminator

Operation

Plastic hot plate

Push box institutions

Easy pull tearing knife

Push box structure

Turret mould

Wiper device

Our Service

Related Machine

Our Machine's Factory Pictures

1.PLC control and touch screen operation, simple and easy. 2.Uses inverter to control the speed, so could adjust according to the operation need. 3.Could connect with another machine to make a whole production line, save labor cost greatly. 4.The mould change easy, without dismantle drive chain, hopper,save time greatly. 5.Specially design for big size product.
