Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyway
-
Model Number:
-
HWD906
-
Torque:
-
High Torque
-
Name:
-
Linear Actuator
-
Model:
-
HWD906
-
Input Voltage:
-
12V or 24V DC
-
Max.load:
-
750N, 1500N, 4000N, 6000N, 7000N,10000N
-
Free Load Speed:
-
5mm/s(7000N),160mm/s(750N)
-
Standard Stroke:
-
50 mm --- 1000mm (Optional)
-
Installation Dimension:
-
S + 250mm
-
Protection Grade::
-
IP65
-
Type of duty::
-
S2-10min (2 minutes work, 18 minutes rest)
-
Operation Temperature:
-
-26 to 65 centigrade
-
Certification:
-
ce, RoHS, Recliner Bed Linear Actuator
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
Current
-
Efficiency:
-
TBD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyway
-
Model Number:
-
HWD906
-
Torque:
-
High Torque
-
Name:
-
Linear Actuator
-
Model:
-
HWD906
-
Input Voltage:
-
12V or 24V DC
-
Max.load:
-
750N, 1500N, 4000N, 6000N, 7000N,10000N
-
Free Load Speed:
-
5mm/s(7000N),160mm/s(750N)
-
Standard Stroke:
-
50 mm --- 1000mm (Optional)
-
Installation Dimension:
-
S + 250mm
-
Protection Grade::
-
IP65
-
Type of duty::
-
S2-10min (2 minutes work, 18 minutes rest)
-
Operation Temperature:
-
-26 to 65 centigrade
-
Certification:
-
ce, RoHS, Recliner Bed Linear Actuator
rack and pinion dewert 12 v linear actuator

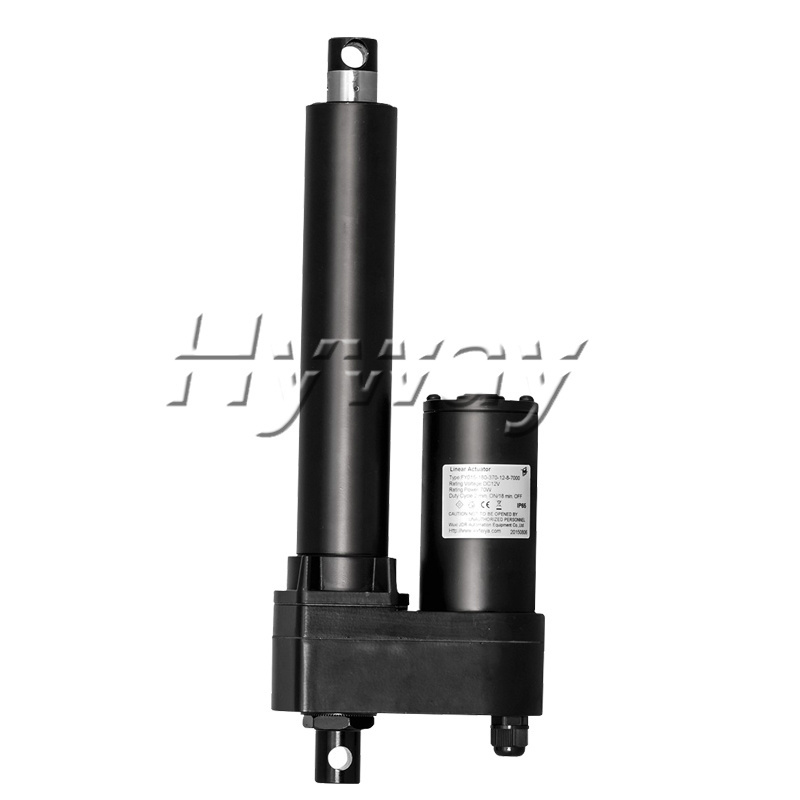

Linear Actuator HWD906 for industrial using
HWD906 Linear Actuator is a multipurpose product. By advantage of its bigger size and powerful comprehnsive funtion, it is popular in industrial, equipmet, and so on.
Plant protection push rod, electric push rod, push rod, electric cylinder, special push rod of dosing machine.
Sweeper push rod, multi-functional sweeper accessories, sweeper push rod, road cleaning car push rod accessories.
Industrial heavy-duty electro-hydraulic push rod, plant protection mechanical parts, mechanical parts, heavy-duty electric push rod.
Fan electric push rod, fan control part, fog gun controller, fog gun push rod, environmental protection fan push.
Laser leveling machine push rod, grader push rod, electric push rod, lifting push rod, construction machinery
parts.
Garden cutting machine accessories, garden cutting machine lifting control parts, garden cutting machine
electric push rod, ditching machine push rod.
Electric lifting device, construction machinery push rod motor, electric cylinder.
Electric push rod of snow making machine, electric adjusting rod of fog gun machine, electric push rod of snow making machine in ski resort.
High power electric push rod, electric lifting device, 700kg thrust machine, electric rod of animal husbandry farm.
|
Name: |
Industrial Linear Actuator |
|
Model: |
HWD906 |
|
Usage: |
Truck, agriculture machine, industrial ,Fire engine Light Lift, Truck Lighting Control, other Application use,Furniture, Medical bed, Industrual feild and so on |
|
Input Voltage: |
12v or24V DC |
|
Load Capacity: |
750N, 1500N, 4000N, 6000N, 7000N, 10000N |
|
Speed: |
5mm/s(7000N),160mm/s(750N) |
|
Standard Stroke: |
more than 50mm and customized |
|
Installation Dimension: |
stroke+200/250mm |
|
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
|
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
|
Work Temp.: |
-26 to 65 centigrade |
|
Material aluminium |
alloy + plastic |
|
Gross Weight |
6~7kg |
|
Noise |
< 48db dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded. |
|
Protection Grade: |
IP65 |
|
Certificate: |
CE / EMC + LVD, RoHS |
|
Delivery time |
3~7 days for samples |
