Quick Details
-
Model Number:
-
ZGQ5
-
Rated Current:
-
20-1600A
-
Frame current:
-
20
-
Product Name:
-

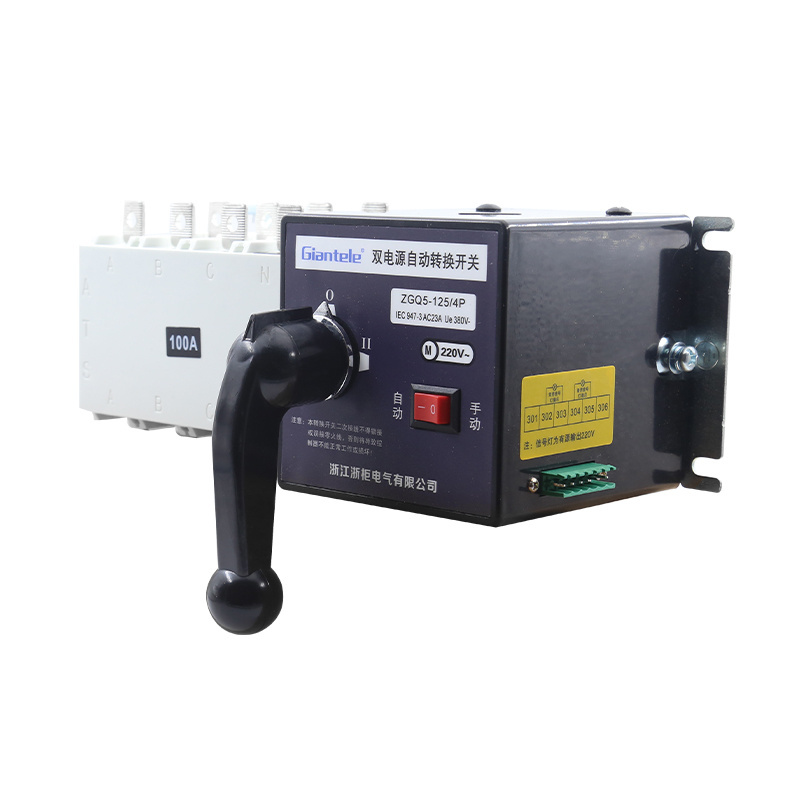

Automatic Transfer Switch ATS
-
Rated operating voltage (Ue):
-
AC400V
-
Rated impulse withstand voltage (Uimp):
-
8KV/12KV
-
Rated insulation voltage (Ui):
-
750V/1000V
-
Certificate:
-
ISO CCC IEC
-
OEM:
-
Offered
-
MOQ:
-
5PCS
-
Rated switching capacity:
-
10
-
Rated breaking capacity:
-
8
Quick Details
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhegui Electric
-
Model Number:
-
ZGQ5
-
Rated Current:
-
20-1600A
-
Frame current:
-
20
-
Product Name:
-
Automatic Transfer Switch ATS
-
Rated operating voltage (Ue):
-
AC400V
-
Rated impulse withstand voltage (Uimp):
-
8KV/12KV
-
Rated insulation voltage (Ui):
-
750V/1000V
-
Certificate:
-
ISO CCC IEC
-
OEM:
-
Offered
-
MOQ:
-
5PCS
-
Rated switching capacity:
-
10
-
Rated breaking capacity:
-
8
Product Description
Customized products can consult online customer service!
| 1. Adopt double row compound contact, horizontal connection mechanism, micro-motor pre-energy storage and micro-electronic control technology, basically realize zero flashovers (no arc extinguishing cover); |
| 2. Adopt reliable mechanical interlocking and electrical interlocking technology; |
| 3. Adopt zero crossing technology |
| 4. It has obvious on-off position indication, padlock function, reliable isolation between power supply and load, high reliability, and service life of more than 8000 times; |
| 5. Electromechanical integrated design, accurate, flexible and reliable switch conversion, good electromagnetic 3compatibility, strong anti-interference ability, no external interference, Fully automatic type does not need any external control components. |
| Project | Parameter | |||||||||||||
| Rated heating current(A) | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | |||
| Rated insulation voltage | 750V | 1000V | ||||||||||||
| Rated impulse withstand voltage | 8KV | |||||||||||||
| Rated working voltage(ue) | AC440V | |||||||||||||
| Rated making capacity(A Rms) | 10le | |||||||||||||
| Rated segmentation capacity(A Rms) | 8le | |||||||||||||
| Rontrol power supply voltage | DC24V, 48V, 110V, AC220V | |||||||||||||
| Related working current(A) | AC-31A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | ||
| AC-35A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | |||
| AC-33A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | |||
| Rated short-time withstand current | 7KV | 9KV | 13KV | 50KV | 55KV | |||||||||
| Rated limit short-circuit current | 100KV | 70KV | 100KV | 120KV | 80KV | |||||||||
| Control current and voltage | DC24V, 48V, 110V, AC220V | |||||||||||||
| Comversion time(S) | 0.5 | 1 | 1.1 | 1.2 | 1.25 | 2.45 | ||||||||
| The switch meets the standard | IEC947-6-1 GB14048.11-2008 | |||||||||||||
