Quick Details
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
1530mm
-
Table Size:
-
2100*1230mm
-
Overall Dimensions:
-
2250*1350*1530mm
-
Weight:
-
1360 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

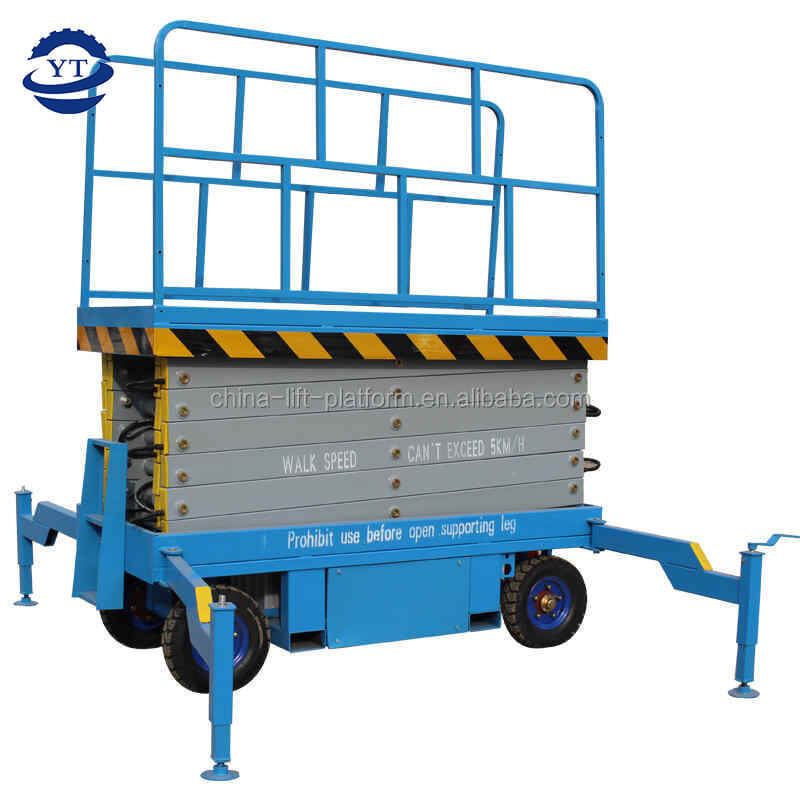

Hydraulic mobile scissor lifter machine
-
Keywords:
-
lifter machine
-
Color:
-
optional
-
Material::
-
High-duty steel
-
Application:
-
Used for high altitude working
-
Special order:
-
Yes
-
CE:
-
Yes
-
Voltage:
-
optional
-
Type:
-
Hydraulic scissor lift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YT
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
1530mm
-
Table Size:
-
2100*1230mm
-
Overall Dimensions:
-
2250*1350*1530mm
-
Weight:
-
1360 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hydraulic mobile scissor lifter machine
-
Keywords:
-
lifter machine
-
Color:
-
optional
-
Material::
-
High-duty steel
-
Application:
-
Used for high altitude working
-
Special order:
-
Yes
-
CE:
-
Yes
-
Voltage:
-
optional
-
Type:
-
Hydraulic scissor lift
Products Description
Features:
1. High working capacity, easily pushed around, most spacious platforms for several people to work.
2. High strength steel structures smoothly lift up and drop down, easily operated.
3. Moving method: 4 wheel and 2 wheel types are optional, it can be pneumatic rubber tires, solid rubber tires or polyurethane tires.
4. Power sources: local power available at the working sites(110V,220V,380V,415V),
1. High working capacity, easily pushed around, most spacious platforms for several people to work.
2. High strength steel structures smoothly lift up and drop down, easily operated.
3. Moving method: 4 wheel and 2 wheel types are optional, it can be pneumatic rubber tires, solid rubber tires or polyurethane tires.
4. Power sources: local power available at the working sites(110V,220V,380V,415V),
diesel engines and generators
5. Lifting height: 4m,6m,8m,10m,12m,14m,16m,18m hydraulic lift
5. Lifting height: 4m,6m,8m,10m,12m,14m,16m,18m hydraulic lift
Details Images
|
Model
|
Platform Size
MM
|
Load
Kg
|
Platform Height
|
Working Height
|
Overall Size(mm)
|
Weight
|
|
SJY0.5-4
|
2100*800
|
500
|
4
|
6
|
2260*950*1100
|
800
|
|
SJY0.5-6
|
2100*800
|
500
|
6
|
8
|
2260*950*1210
|
850
|
|
SJY0.5-7
|
2100*800
|
500
|
7
|
9
|
2260*950*1210
|
850
|
|
SJY0.5-8
|
2100*900
|
500
|
8
|
10
|
2260*1050*1330
|
1050
|
|
SJY0.5-9
|
2100*900
|
500
|
9
|
11
|
2260*1050*1450
|
1165
|
|
SJY0.5-10
|
2100*1200
|
500
|
10
|
12
|
2300*1350*1480
|
1300
|
|
SJY0.3-11
|
2100*1200
|
300
|
11
|
13
|
2300*1350*1600
|
1400
|
|
SJY0.5-12
|
2550*1200
|
500
|
12
|
15
|
2750*1670*1730
|
2260
|
Mobile hydraulic scissor lifts are widely used in shipbuilding, construction, municipal engineering, electricity,communications,logistics, gardens, advertising, venues, railways, motor stations, airports, ports and various large industrial and mining enterprises and other places and industries.
Safety:
1.In special circumstance, the scissor lift will use explosion-proof electric equipment
2.The platform equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated
load capacity.
4.The scissor lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the
manual dropped valve to lower the platform to the home position.
5.The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works
1.In special circumstance, the scissor lift will use explosion-proof electric equipment
2.The platform equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated
load capacity.
4.The scissor lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the
manual dropped valve to lower the platform to the home position.
5.The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works
Factory Showing
1. Delivery time
Within 7- 15 working days after we receive the order.
2. Payment terms
T/T, L/C, Western Union.
3. MOQ
Generally is 1 set, also depending on models.
4. Custom-made
Custom made available.
Within 7- 15 working days after we receive the order.
2. Payment terms
T/T, L/C, Western Union.
3. MOQ
Generally is 1 set, also depending on models.
4. Custom-made
Custom made available.
Certification
