Quick Details
-
Brand Name:
-
Blue Taiyang
-
Model Number:
-
LP155590
-
Battery Size:
-
7.4v 5000mah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
169g
-
Electric Energy:
-
37 Wh
-
Type:
-
LP155590 5000mah rechargeable lithium ion cell 7.4v 5000 mah battery
-
Size:
-
15.0*55.0*90.0mm
-
Max. Continuous charge:
-
3A
-
Max. Continuous discharge:
-
3A
-
Operating Temperature:
-
-20~60deg C
-
PCB protections (optional):
-
over-charge/over-discharge/short-circuit/over-temperate protection
-
Sample:
-
Provide Samples
-
Cycle Life:
-
300 times
-
OEM/ODM:
-
Yes(Accepted)
Quick Details
-
Storage Type:
-
Normal temperature storage
-
Anode Material:
-
NCM
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Electrical equipment and supplies
-
Brand Name:
-
Blue Taiyang
-
Model Number:
-
LP155590
-
Battery Size:
-
7.4v 5000mah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
169g
-
Electric Energy:
-
37 Wh
-
Type:
-
LP155590 5000mah rechargeable lithium ion cell 7.4v 5000 mah battery
-
Size:
-
15.0*55.0*90.0mm
-
Max. Continuous charge:
-
3A
-
Max. Continuous discharge:
-
3A
-
Operating Temperature:
-
-20~60deg C
-
PCB protections (optional):
-
over-charge/over-discharge/short-circuit/over-temperate protection
-
Sample:
-
Provide Samples
-
Cycle Life:
-
300 times
-
OEM/ODM:
-
Yes(Accepted)

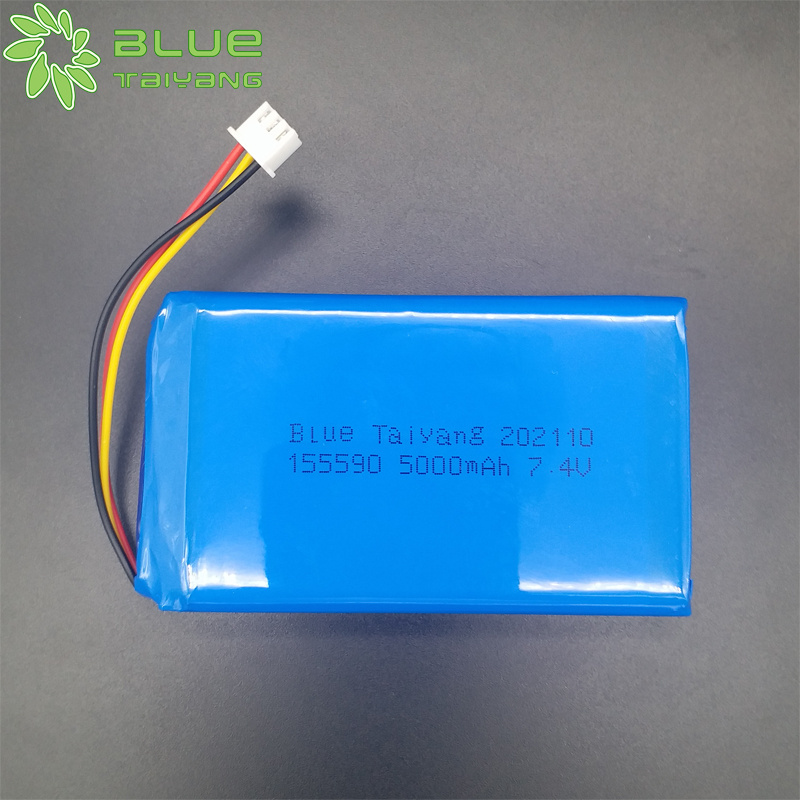

LP155590 5000mah rechargeable lithium ion cell 7.4v 5000 mah battery pack
|
|
| T | 15.0mm max. |
|
| W | 55.0mm max. | |
| H | 90.0mm max. | |
| L | 70+3.0/-3.0 mm |
Battery Raw Materials
|
Chemical Name |
Molecular formula |
Chemical code |
In % by Weight |
|
Aluminum Foil |
Al |
7429-90-5 |
8.0% |
|
Copper Foil |
Cu |
7440-50-8 |
10.0% |
|
Lithium cobalt oxide |
LiCoO2 |
12190-79-3 |
48.0% |
|
Carbon |
C |
1333-86-4 |
15.0% |
|
Lithium Hexafluorophoshate |
LiPFe |
21324-40-3 |
10.0% |
|
Polypropylene |
PP |
9003-02-0 |
2.0% |
|
Nickel |
Ni |
7440-02-0 |
2.0% |
|
Nylon |
-- |
9008-75-7 |
5.0% |
Product Parameter
|
Type |
LP155590 5000mah rechargeable lithium ion cell 7.4v 5000 mah battery pack |
|
Reference Certification |
CB, IEC62133, KC, CE, UN38.3, MSDS. |
| Charge voltage | 8.4V |
| Nominal voltage | 7.4V |
| Nominal capacity | 5000mah |
| Charge current Standard Charging | 0.2C |
|
Charge current Rapid charge |
0.5C |
|
Charging time Standard Charging |
6.0 hours (Ref.) |
|
Rapid charge |
2.0 hours (Ref.) |
| Cycle Life | 300 times |
| Operating temperature | Charging : 0℃ ~ 55℃ |
| Discharging : -20℃ ~ 65℃ | |
| Max. charge voltage | 8.6V |
| Max. charge current | 3A |
| Max discharge current | 3A |
| Weight | 169g |
