Quick Details
-
Shape:
-
Bow
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
can be customized
-
Model Number:
-
key pin shackle
-
Treatment:
-
forged or precision casting
-
Stock:
-
6889pcs
-
Process:
-
casting/forging/rolling/thread/cnc machining/polishing
-
W.L.L:
-
4-32T
-
Finish:
-
polished
-
Other:
-
can be customized
Quick Details
-
Measurement system:
-
Metric, Imperial (Inch)
-
Application:
-
Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry
-
Material:
-
Carbon steel
-
Shape:
-
Bow
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
can be customized
-
Model Number:
-
key pin shackle
-
Treatment:
-
forged or precision casting
-
Stock:
-
6889pcs
-
Process:
-
casting/forging/rolling/thread/cnc machining/polishing
-
W.L.L:
-
4-32T
-
Finish:
-
polished
-
Other:
-
can be customized
Product Description

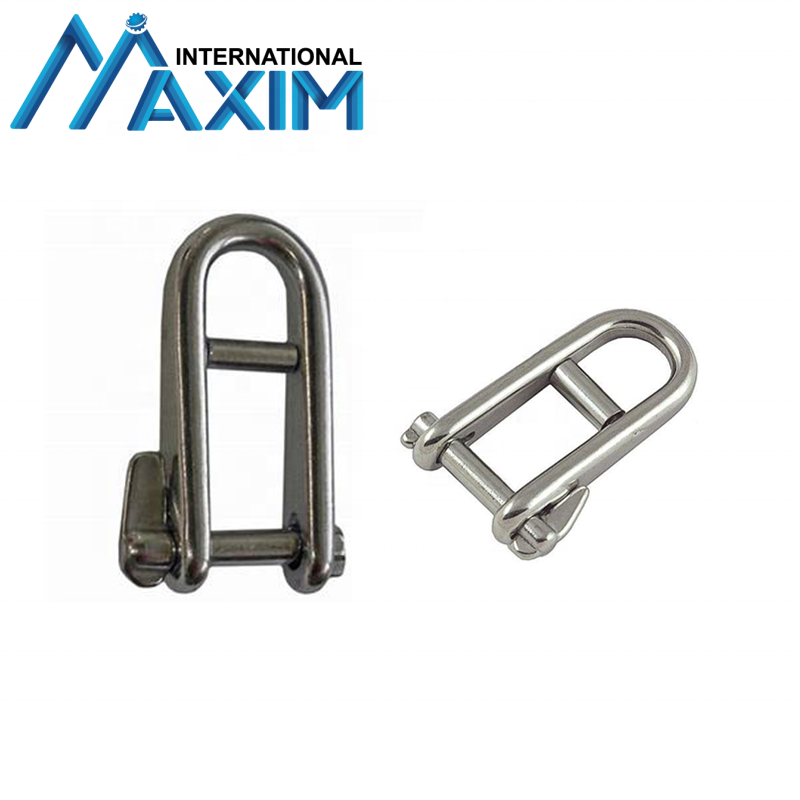

Marine Hardware Stainless Steel Key Pin D Shackle With Bar
Introduction:
Stainless steel key pin shackles with bar great for marine or high humidity applications. Carbon steel rusts when exposed to the combination of air and water. It creates an iron oxide film that is active and will accelerate corrosion by duplicating itself. Type 316 Stainless steel has a sufficient amount of chromium present so that a chromium oxide film forms, which is passive. This film prevents further corrosion and prevents it from spreading to the internal part of the anchor shackle.
Features:
Widely used in any lifting conditions, trailer conditions
Widely used in any lifting conditions, trailer conditions
Easier to be connected with chains, wire ropes, hooks,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working
Specifications:
Process: Forging or precision casting
Process: Forging or precision casting
Material: stainless steel 304/316/316L
Finish:polished
Finish:polished
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
|
SPECIFICATION FOR STAINLESS STEEL KEY PIN SHACKLES WITH BAR
|
|
|
||
|
CODE
|
SIZE
|
W.L.L
|
||
|
MAX6589
|
4
|
160
|
||
|
MAX6590
|
5
|
250
|
||
|
MAX6591
|
6
|
340
|
||
|
MAX6592
|
8
|
720
|
||
|
MAX6593
|
10
|
1000
|
||
|
MAX6594
|
12
|
1500
|
||
|
MAX6595
|
16
|
2750
|
||
|
MAX6596
|
20
|
3750
|
||
|
MAX6597
|
22
|
4750
|
||
|
MAX6598
|
25
|
5750
|
||
|
MAX6599
|
28
|
6000
|
||
|
MAX6600
|
32
|
7000
|
||
cutting materials
heating material
hot die forging
cutting the forging edge
half-finished bulk
sand blasting in machine
Related Products
YOU MAY ALSO LIKE:
Detailed Images
STAINLESS STEEL MATERIAL, SURFACE POLISHED
TIGHTEN CLOSELY WITH EACH, NO GAP
BALL HEAD WITH ENOUGH COMMERCIAL SIZE, DIDNT REDUCE THE STAINLESS STEEL MATERIAL
FAQ
Typical questions asked about products:
-
- Is the item durable?
Dear customer, Yes, they are. The whole body were forged and quenched&tempered, and material is steel, alloy steel. Each parts were forged overall.
- - Is this item easy to use?
Dear customer, Yes, they are. Just thread the shackles pins, and make the wire rope or chains or other rigging hardware inside, then screw the pins and connected them well in correct lifting direction.
- Can I just buy 1 set? As I only need one set for now.
dear, MOQ of this products is 100pcs, if we have them in stock, that can ship 1 or small order for you.
Packing & Delivery
|
Packaging
|
|
|
|
Packaging Details
|
1 stainless steel key pin shackle with bar is packaged by bag/carton with pallet
2can also ship the bulk with bag into wooden case . 3.customized package is available. |
|
