Quick Details
-
Input Voltage(V):
-
AC85~277V(50/60Hz)
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOSINN
-
Model Number:
-
LC018
-
Product Name:
-

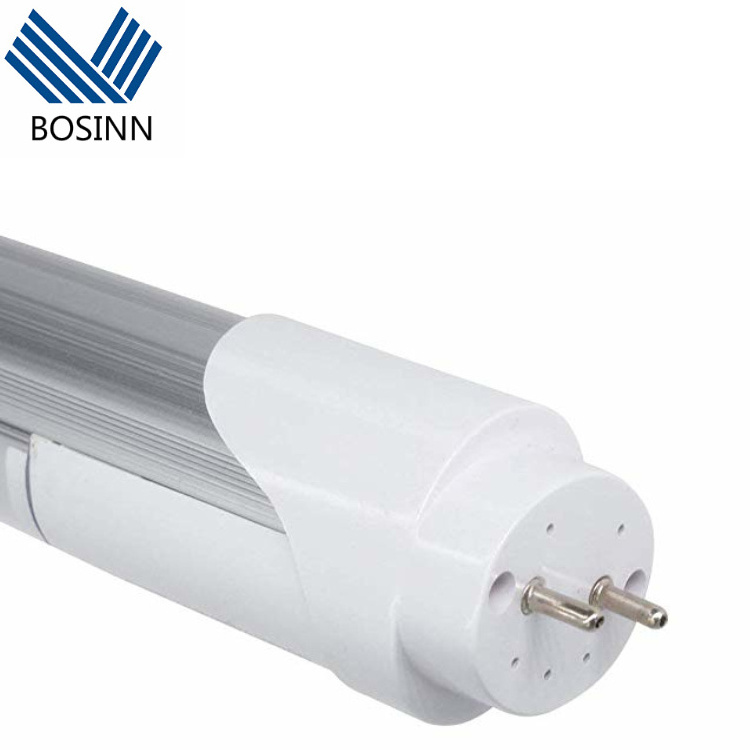

4ft Radar Sensor T8 Led Tube Light
-
Lighting Source:
-
SMD 2835 LED Chips
-
Base:
-
G13 Bi-pin (Dual-End Powered)
-
Beam Angle:
-
180 Degree
-
Cover:
-
Aluminum+PC
-
Sensor distance:
-
6-8m radius
-
Size:
-
1200*30*26mm
-
Feature:
-
with microwave radar sensor
-
LED Efficiency:
-
>160 lm/W
Quick Details
-
Warranty(Years):
-
5
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Body Material:
-
PC
-
Input Voltage(V):
-
AC85~277V(50/60Hz)
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOSINN
-
Model Number:
-
LC018
-
Product Name:
-
4ft Radar Sensor T8 Led Tube Light
-
Lighting Source:
-
SMD 2835 LED Chips
-
Base:
-
G13 Bi-pin (Dual-End Powered)
-
Beam Angle:
-
180 Degree
-
Cover:
-
Aluminum+PC
-
Sensor distance:
-
6-8m radius
-
Size:
-
1200*30*26mm
-
Feature:
-
with microwave radar sensor
-
LED Efficiency:
-
>160 lm/W
Product Description
4ft Radar Sensor T8 Led Tube Light 18w with Motion Sensor 4000k ultraviolet light
Microwave motion sensor T8 tube light
Sensor LED Tube T8
| Input Characteristics | |||||
| Model No. | AM-8D605YRD | AM- 8D1205YRD | AM- 8D1505YRD | AM-CK605YRD | AM-CK1205YRD |
| Type | LED T8 Tube Light with Microwave Sensor | LED Linear Batten Light with motion Sensor | |||
| Mains voltage |
85~265V |
85-265V | 85-265V | 85-265V | 85-265V |
| Size |
2ft/60cm |
4ft/120cm | 5ft/150cm | 2ft/60cm | 4ft/120cm |
| Stand-by power | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W |
| Rated Power | 9W | 18W | 22W | 9W | 18W |
| LED Qty | 48pcs*SMD2835 | 96pcs*SMD2835 | 192pcs*SMD2835 | 48pcs*SMD2835 | 96pcs*SMD2835 |
| Output Lumen | 700-900 lm | 1500-1800 lm | 1800-2200 lm | 600-700 lm | 1100-1200 lm |
| Color Temperature | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Lumen Efficiency | 80-100 lm/W | 80-100 lm/W | 80-100 lm/W | >70 lm/W | >7 0 lm/W |
| CRI (Ra) | >80 | >80 | >80 | >80 | >80 |
| Sensor Data | |||||
| Sensor principle | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave |
| Operation Frequency | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz |
| Transmission power | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m | 8m*6m | 8m*6m | 8m*6m |
8m*6m |
| Detection angle | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° |
| Hold time | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s |
3s-160s (selectable) |
| Sensor Mode |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
| Daylight sensor (on/off Mode) | <10 lux | <10 lux | <10 lux | <10 lux |
0-300lux (selectable) |
| Environment | |||||
