factory price Camp Butane Gas Cartridge refill filling machine / semi-automatic

factory price Camp Butane Gas Cartridge refill filling machine / semi-automatic

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Gas volume:: 550ml Max

Filling Accuracy:: ±1%

Working Pressure::: 0.65-1.0Mpa

Air consumption::: 0.8(m3/min)

LPG Booster pump:: 360*320*800mm

Quick Details

Packaging Material:: Plastic, Metal, Glass, Wood

Place of Origin:: Hubei, China

Production capacity:: 2000-3000cans/shift(8 hours) one crimper + one gas filler

Gas volume:: 550ml Max

Filling Accuracy:: ±1%

Working Pressure::: 0.65-1.0Mpa

Air consumption::: 0.8(m3/min)

LPG Booster pump:: 360*320*800mm

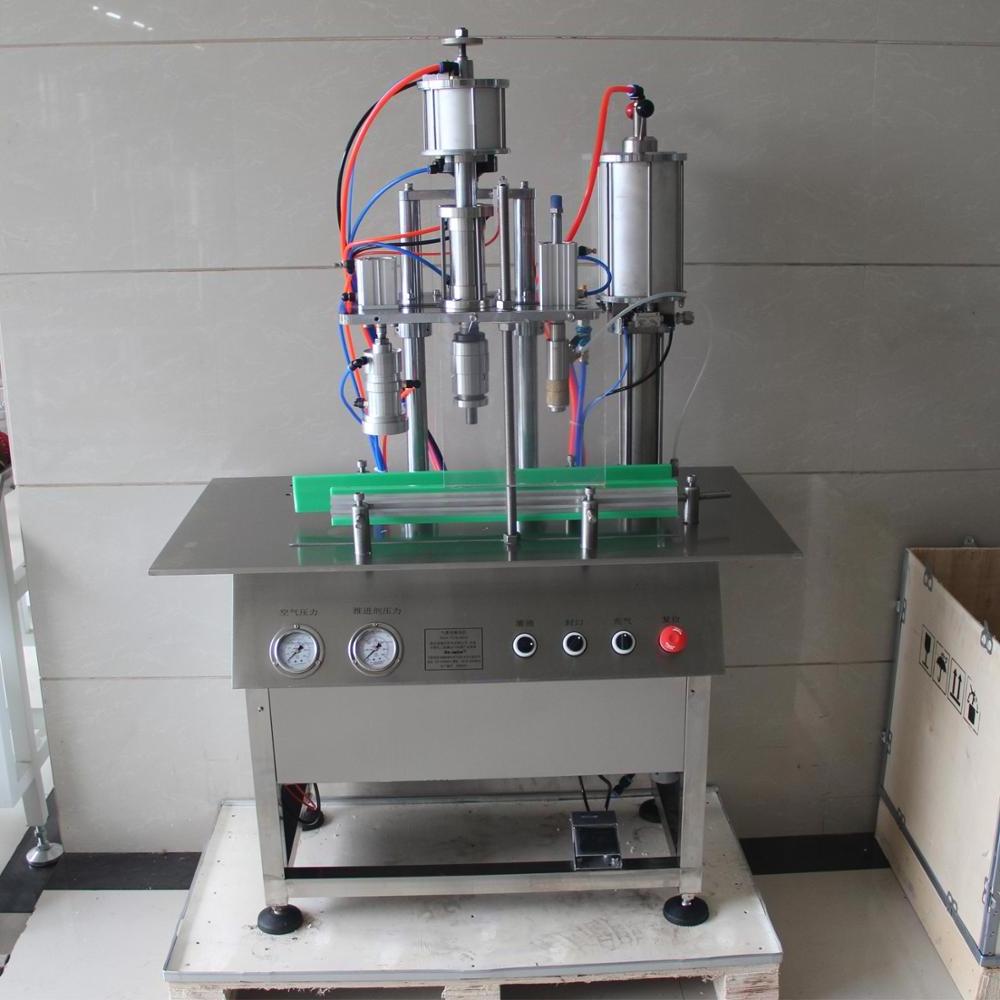

SEMI-AUTO CJXH-1600D

Product Application

This equipment is pneumatic, uses the compressed air as power, no electricity, safe, reliable, and widely used for filling butane gas cartridge alp cooker, cassette gas and mini cooker filling .

This machine is dedicated to various kinds of cassette can, refrigerant can and altitude gas can. It can be used for catering, hotel and outdoor travel, etc. This machine applies to 1-inch aerosol valve and cassette gas thread valve. Closing and aeration may be finished separately or jointly. A double aeration system is optional to improve efficiency. And a water-bath leak detector is optional to ensure safety. For CJXH-1600D, there is no liquid filling device in this equipment. It can close and aerate cassette gas valve,.

The whole machine consists of two units, one is sealing machine, the other is gas filling machine. We design it in one working table or two working table. The machine is safe and reliable, maintained conveniently. It has small-occupied area and simple operation, belongs to economical aerosol production equipment.

Why the 3 in 1?

The 3 in 1 CJXH-1600D combines 2 main functions in one working table :

1- Vacuum machine

2- sealing machine and

3- gas filling machine including booster pump, operator can complete vacuum, sealing and gas filling on one worktable, single operation, save labor Cost when you just started your business, and the filling speed and the labor intensity are same and other similar machines.


.Production capacity:	2000-3000cans/shift(8 hours) one crimper + one gas filler 3000-5000 cans/shift(8hours) one crimper+ two gas filler
Max gas volume(ml)	Max 500ml
Gas filling accuracy	≤±1%
Sealing accuracy	≤±1%
Working Pressure	0.65-1.0Mpa
Maximum air consumption	0.8(m3/min)
Applicable aerosol can diameter	35-65 (mm)
Applicable aerosol can height	70-330(mm)
Available valve	1"(25.4mm)

Also can make two working tables

DO YOU WANT START BUTANE GAS CARTRIDGE BUSINESS???

THEN WE HAVE THE SUITABLE FILLING MACHINE FOR YOU

various aerosol cans from our customers

Main Features

1) Simple structure,easy in installation and maintainance

2) Adopting advanced world famous brand components in pneumatic parts.

3) Can choose between 1 or 2 tables.

4) Great for small and medium business

5) Also have the automatic line for important factory

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

*Communicate via whatsapp, skype , wechat.

*Giving all the information needed.

After-Sales Service

* Training how to instal the machine, training how to use the machine,we provide USB with videos, Catalogue in english.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1000mm(L) * 600mm(W) * 1680mm (D)
Weight	150 KG
Packaging Details	The normal package is wooden box If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
