Quick Details
-
Defrost Type:
-
automatic, timed or hot fluoride optional
-
Temperature Control:
-
Microcomputer
-
climate type:
-
N-ST
-
color:
-
customized/optional
-
cooling system:
-
air cooled
-
Compressor:
-
Sanyo DC Inverter 3HP
-
Certification:
-
CE , CCC , ISO9001
-
Power supply:
-
220V/50Hz/single Phase
-
Refrigerant:
-
R404a
-
Product name:
-

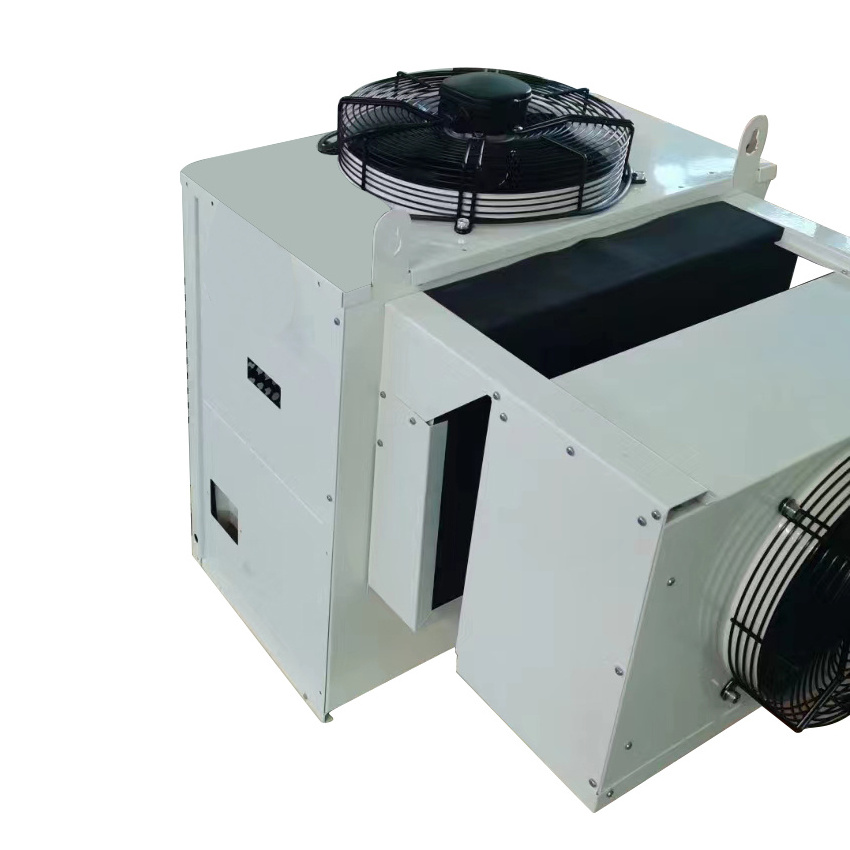

Cold Room Condenser Unit
Quick Details
-
Weight (KG):
-
120
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mankes
-
Defrost Type:
-
automatic, timed or hot fluoride optional
-
Temperature Control:
-
Microcomputer
-
climate type:
-
N-ST
-
color:
-
customized/optional
-
cooling system:
-
air cooled
-
Compressor:
-
Sanyo DC Inverter 3HP
-
Certification:
-
CE , CCC , ISO9001
-
Power supply:
-
220V/50Hz/single Phase
-
Refrigerant:
-
R404a
-
Product name:
-
Cold Room Condenser Unit
Products Description
|
1~3HP DC Inverter Compressor
|
|
|
|
|
||||
|
Model#
|
|
MT-BYTCN10EL
|
MT-BYTCN20EL
|
MT-BYTCN30EL
|
||||
|
Voltage(Volt)
|
|
220V/50Hz
|
|
|
||||
|
Compressor Power
|
|
1HP
|
2HP
|
3HP
|
||||
|
Refrigerant
|
|
R404a
|
R404a
|
R404a
|
||||
|
Evap. Temp. range
|
|
-40℃~ -5℃
|
|
|
||||
|
Work Frequency
|
|
30Hz~80Hz
|
|
|
||||
|
Max. Work Current
|
|
5
|
9
|
13
|
||||
|
Condensing Fan
|
Power
|
120
|
150
|
120
|
||||
|
Condensing Fan
|
Quantity
|
1
|
1
|
2
|
||||
|
Evaporator Fan
|
Power
|
80
|
120
|
80
|
||||
|
Evaporator Fan
|
Quantity
|
1
|
1
|
2
|
||||
|
External Dimension
|
LxWxHmm
|
600*710*710
|
720*890*825
|
925*890*825
|
||||
|
Cooling Capacity
|
|
Cooling Capacity: W ; Ambient Temp:32℃
|
|
|
||||
|
Evaporator Temperature ( ℃）
|
-5
|
2250
|
4280
|
6850
|
||||
|
|
-15
|
1650
|
3050
|
4350
|
||||
|
|
-25
|
820
|
230
|
3230
|
||||
|
|
-35
|
760
|
1250
|
2050
|
||||
|
Rated Power( W )
|
|
780
|
1550
|
2260
|
||||
Product features：
1. Sanyo DC low-temperature compressor, Sanhua electronic expansion valve.
1. Sanyo DC low-temperature compressor, Sanhua electronic expansion valve.
2. Integrated control panel, built-in cabinet temperature and defrost temperature probe.
3. Liquid crystal display screen panel.
4. Multiple defrosting modes optional, which can be timed, automatic, or hot fluoride frost.
5. The whole machine has multiple protection, automatic detection and reset.
6. One-piece embedded installation, it can run after power on.
