Measuring principle
|
Differential pressure
|
|
Characteristic
|

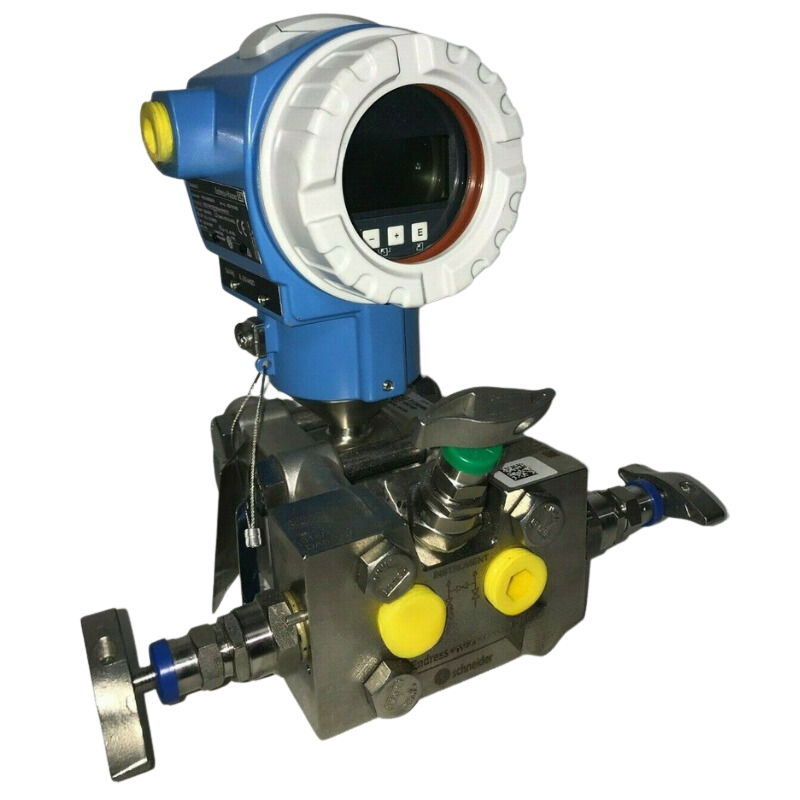

Differential pressure transmitter which detects process anomalies like plugged impulse lines.
Intuitive and clear wizards for commissioning, proof tests and verification. |
|
Supply voltage
|
Ex d, Ex e, non-Ex:10.5...35V DC Ex i: 10.5...30V DC
|
|
Reference Accuracy
|
Standard:up to 0.05 %
Platinum:up to 0.035 % |
|
Long term stability
|
0.025 % of URL/ year
0.05 % of URL/ 5 years 0.10 % of URL/ 10 years |
|
Process temperature
|
-40°C...+110°C (-40°F...+230°F)
|
|
Ambient temperature
|
-40°C...+85°C (-40°F...+185°F)
|
|
Measuring cell
|
10 mbar...250 bar
(0.15 psi...3750 psi) |
|
Smallest calibratable span
|
0.25 mbar (0.00375 psi)
|
|
Vacuum resistance
|
25 mbar (0.0375 psi)
|
|
Max. Turn down
|
100:1
|
|
Max. overpressure limit
|
1600 bar (23,200 psi)
|
|
Process connection
|
NPT1/4-18 RC1/4"
|
|
Material process membrane
|
316L, AlloyC,Tantal,Monel,Gold
|
|
Material gasket
|
PTFE, FKM, EPDM, FFKM
|
|
Fill fluid
|
Silicone oil,Inert oil
|
|
Material housing
|
Aluminium, 316L
|
|
Communication
|
4...20 mA HART
PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
|
Certificates / Approvals
|
ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex
|
|
Safety approvals
|
SIL
|
|
Design approvals
|
EN10204-3.1,
NACE MR0103, NACE MR0175 |
|
Drinking water approvals
|
NSF, KTW
|
|
Specialities
|
Heartbeat Technology,
Bluetooth® Operation and maintenance SmartBlue App, LED Module, RFID TAG for easy identification, Plug and play functionalities, HistoROM |
