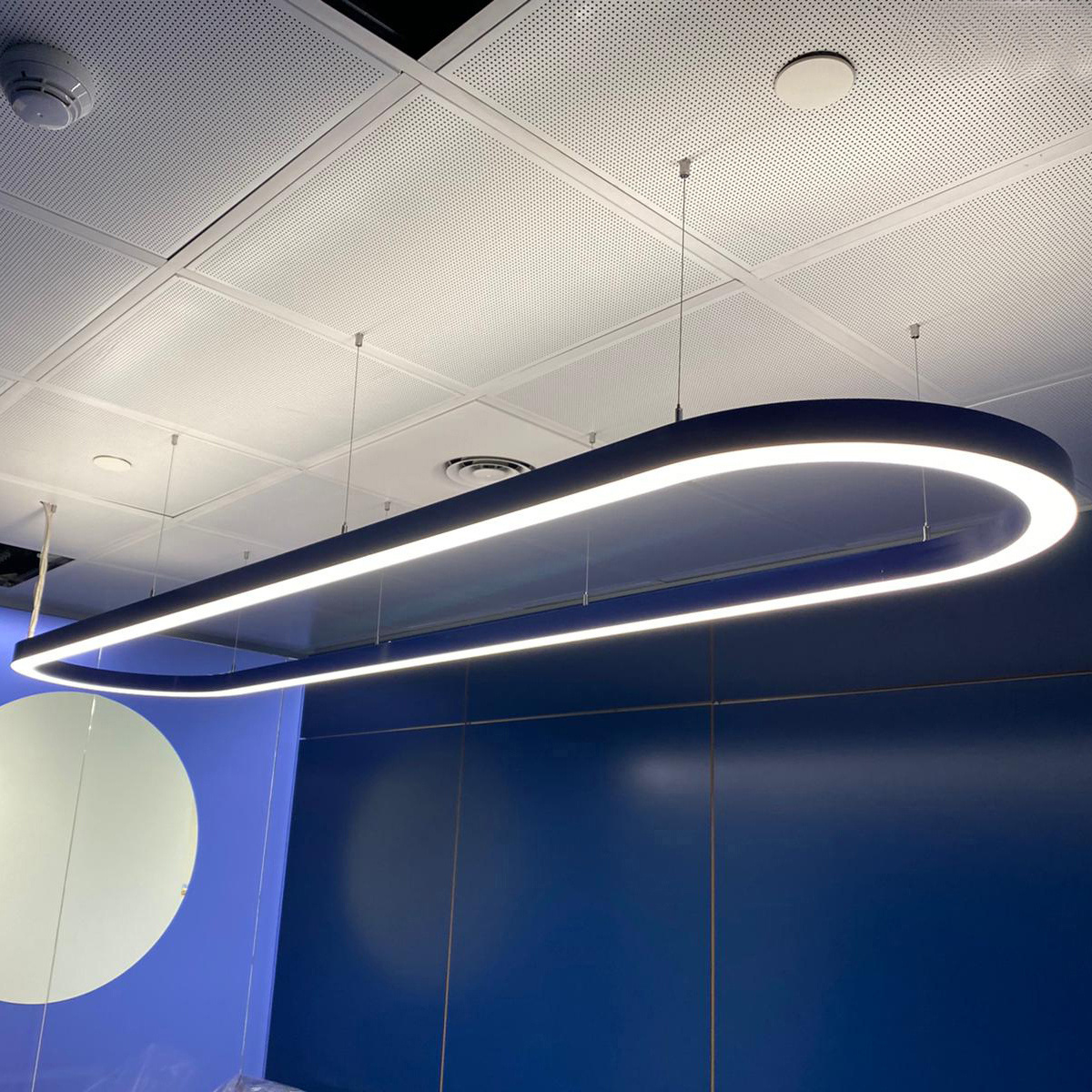

Indoor LED linear round oval ceiling light 60mm curved Alu profile pendant light fixture

FOB Reference Price: Get Latest Price

≥2 Pieces

US $38

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Office

Product Weight（kg）:: 4

Type:: Modern, simple

Model Number:: HR4080/HR6080/HR8080

Working Temperature(℃):: -20~50

Beam Angle(°):: 120

Light Source:: LED

IP Rating:: IP20

Dimension:: Customized design, based on customers

Product name:: Customized curved aluminum light

Lamp shape:: Negotiable

Main material:: Aluminum +PC

Style:: Simple, Nordic, Modern

Lumen efficacy:: >100lm/w

Control way:: switch onoff, 0-10V dimmable, DALI+PUSH, DALI DT8, Triac dimmable

Suitable for:: Commercial building, office, store, mall. hotel

Installation:: Suspended, ceiling, recessed

Shell color:: White, black, silver, golden, RAL colors

MOQ:: 1 Piece

Quick Details

Lamp Luminous Efficiency(lm/w):: 100

Warranty(Year):: 5-Year

Lamp Body Material:: Aluminum

Application:: Office

Product Weight（kg）:: 4

Type:: Modern, simple

Model Number:: HR4080/HR6080/HR8080

Working Temperature(℃):: -20~50

Beam Angle(°):: 120

Light Source:: LED

IP Rating:: IP20

Dimension:: Customized design, based on customers

Product name:: Customized curved aluminum light

Lamp shape:: Negotiable

Main material:: Aluminum +PC

Style:: Simple, Nordic, Modern

Lumen efficacy:: >100lm/w

Control way:: switch onoff, 0-10V dimmable, DALI+PUSH, DALI DT8, Triac dimmable

Suitable for:: Commercial building, office, store, mall. hotel

Installation:: Suspended, ceiling, recessed

Shell color:: White, black, silver, golden, RAL colors

MOQ:: 1 Piece

Product Description

Aluminum body bendable LED curved profile lighs bring a lot of possiblities in indoor lighting recent years.

They are very popular, attractive, dynamic, and d eeply loved by designers from all over the world .

Our job is to shape the lights, let the lights flow at the shape clients want. DIY designs innovations,

And this is our profession as well, focus on quallity products, aim to make every designers' ideas&thoughts come true.

Opal PC cover

Our PC cover is exactly fixed on aluminum housing, it is not loose. With high quality Plastic raw material, they stay white color after long time use. No yellowing.

Strong aluminum housing structure(not iron body)

The aluminum profile is 2.2mm thick, to make sure the entire housing has good strength, and better heat dissipation.

Luminarie Parameters
Series	Bendable curve customized shape
Profile size	W35x35mm, W40X40mm, W60xH40mm, W40xH80mm, W60xH80mm, W80xH80mm......
Input voltage	200-240VAC/120-277VAC
Power Factor	PF>0.95
Flicker	FLICKER-FREE
LED driver brand	BOKE, Lifud, Tridonic, Mean Well, Osram
Driver certificate	UL, TUV, SAA, PSE, CB,CE, RoHS
LED type	PCB/FPCB, SMD2835/SMD5050
Emitting Color	Warm White 3000K, Nature White 4000K, Cool White 6000K, RGB, RGBW, RGBW+WW
Housing Color	White, Black, Silver, Gold, Gray, Red, RAL Pantone colors
CRI	>80 , >90, >95
Beam angle	120°
Lumen efficacy	100lm/w, 110lm/w
Lifespan	50,000 hours
Material	AL-6063 Aluminum+ PC cover
Dimming	On/Off, DALI, 0-10V, 1-10V, Triac, Tunable 2700-6500K, RF wireless
Installation	Pendant, surface mounted, Recessed, Wall mounted
MOQ	1 Piece

Aluminum body finishing color: regular color is white and black, if you need another color, please contact our sales and inform which RAL code you need.

Lighting color: regular color is 3000K, 4000K, 6000K. Different dimming types are available to choose.

RGB/RGBW/RGB+CCT color changing is also available.

All products with flicker-free power driver, when taking photo or video, there is no flicker.

If people stay in the room with s troboscopic lamps, their eyes will feel uncomfortable after long time staying.

Installation Instructions

There are 5 mounting options.

Type 1 : Normal suspended mounting, the hanging ropes are parallel, suitable for all sizes.

Type 2 : Vertical suspension with a ceiling base(ceiling rose), driver inside..

Type 3 : Central suspension with ceiling base in the middle position, driver inside.

Type 4 : Ceiling surface mounting, suitable for flat ceiling.

Type 5 : Trimless recessed mounting, suitable for gypsum plaster ceiling( Drywall ceiling ).

Please indicate which mounting way you will need, we normally only supply type one accessories with suspension steel ropes 1.5meter.

Product Application

Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, other indoor places, etc.
