Quick Details
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Conformal coating machine
-
Positioning:
-
CCD vision
-
Dispensing accuracy:
-
+/-0.015mm
-
X/Y/Z Working Range:
-
X400mm*Y400mm*Z100mm
-
XY/Z speed:
-
Max:800/500 (mm/s)
-
Motion /Drive System:
-
servo Motor + Ball Screw Driven
-
Memory Capacity:
-
1000 Programs - Unlimited (Data Storage via USB)
-
I/O Signals:
-
4 Inputs / 4Outputs ((extendable)
-
Patterns:
-
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINTAI
-
Weight (KG):
-
140
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Conformal coating machine
-
Positioning:
-
CCD vision
-
Dispensing accuracy:
-
+/-0.015mm
-
X/Y/Z Working Range:
-
X400mm*Y400mm*Z100mm
-
XY/Z speed:
-
Max:800/500 (mm/s)
-
Motion /Drive System:
-
servo Motor + Ball Screw Driven
-
Memory Capacity:
-
1000 Programs - Unlimited (Data Storage via USB)
-
I/O Signals:
-
4 Inputs / 4Outputs ((extendable)
-
Patterns:
-
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Products Description

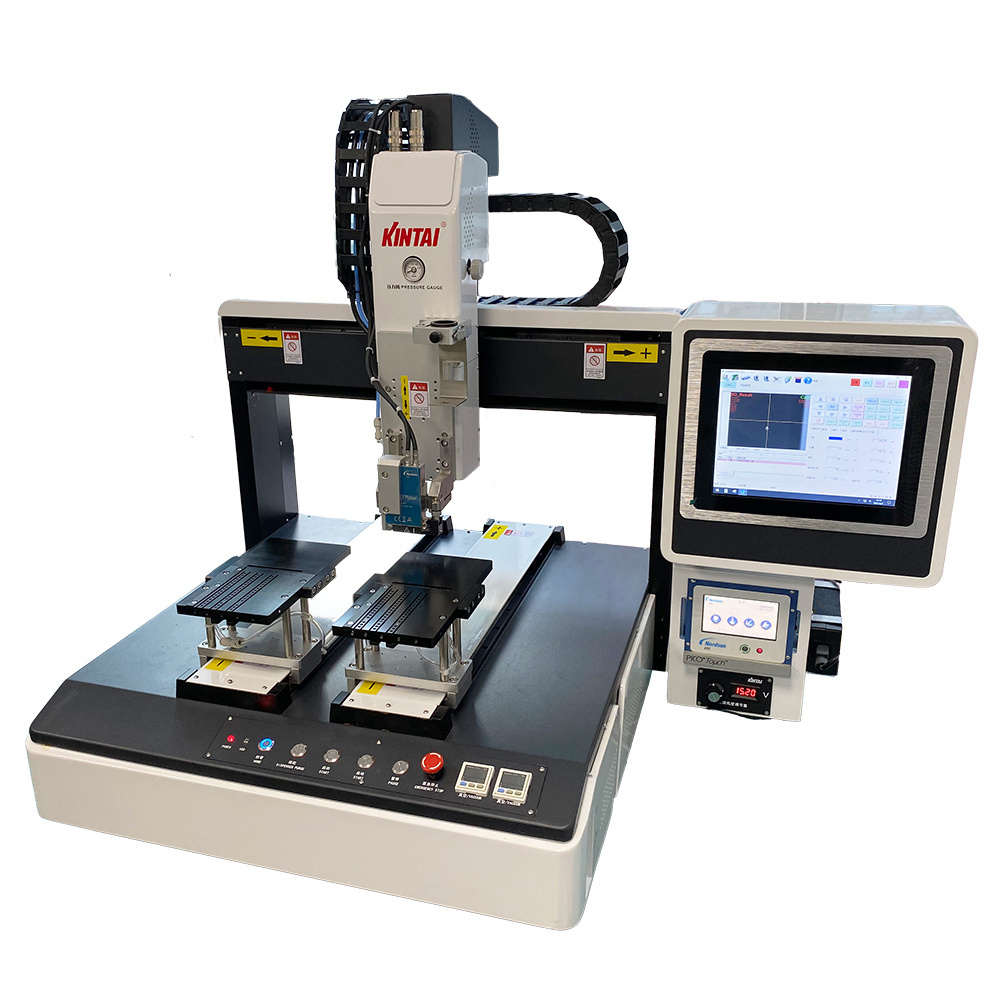

KTS-400 Bench Top Fluid Dispensing Robot
Features:
1.Computer Control, Windos OS;
2.Servo Motor + Ball Screw Driven;
3.X,Y,Z robotic arms repeatability accuracy up to 0.015mm;
4.Hidden PC design, compact external dimension;
5.Dispensing bench with Vacuum absorption function;
6.Visual dispensing patterns,easy programming;
Products Parameters
|
MODEL
|
KTS-400 Glue Dispensing Machine
|
|
|
|
|||
|
Repeatability Accuracy
|
±0.015mm/Axis
|
|
|
|
|||
|
X/Y/Z Working Dispensing Range
|
X400mm * Y400mm * Z100mm
|
|
|
|
|||
|
XY/Z Speed
|
Max:800/500 (mm/s)
|
|
|
|
|||
|
Motion/Drive System
|
Servo Motor, Ball Screw, Linear Slide
|
|
|
|
|||
|
Control Method
|
Industrial Computer + Motion Controller + LCD Display
|
|
|
|
|||
|
Positioning
|
300,000 Resolution CCD Vision Camera
|
|
|
|
|||
|
Material Supply(customized)
|
Glue Tank(2600ml optional)
5cc/10cc/30cc/50cc Cartridge(optional)
30cc syringe
|
|
|
|
|||
|
Laser Height Measurement
|
Automatic Laser Height (precision:0.001mm) Detection & Z Axis Height Calibration Optional
|
|
|
|
|||
|
Power Supply
|
AC 110/220V, 50/60Hz, 1Kw
|
|
|
|
|||
|
Air Pressure
|
0.5-0.7Mpa, 0.2m²/h
|
|
|
|
|||
|
CAD Impot
|
DXF Format
|
|
|
|
|||
|
Low Fluid Sensor/Warning
|
Optional
|
|
|
|
|||
|
Memory Capacity
|
1000 Programs - Unlimited (Data Storage via USB)
|
|
|
|
|||
