Quick Details
-
Product name:
-

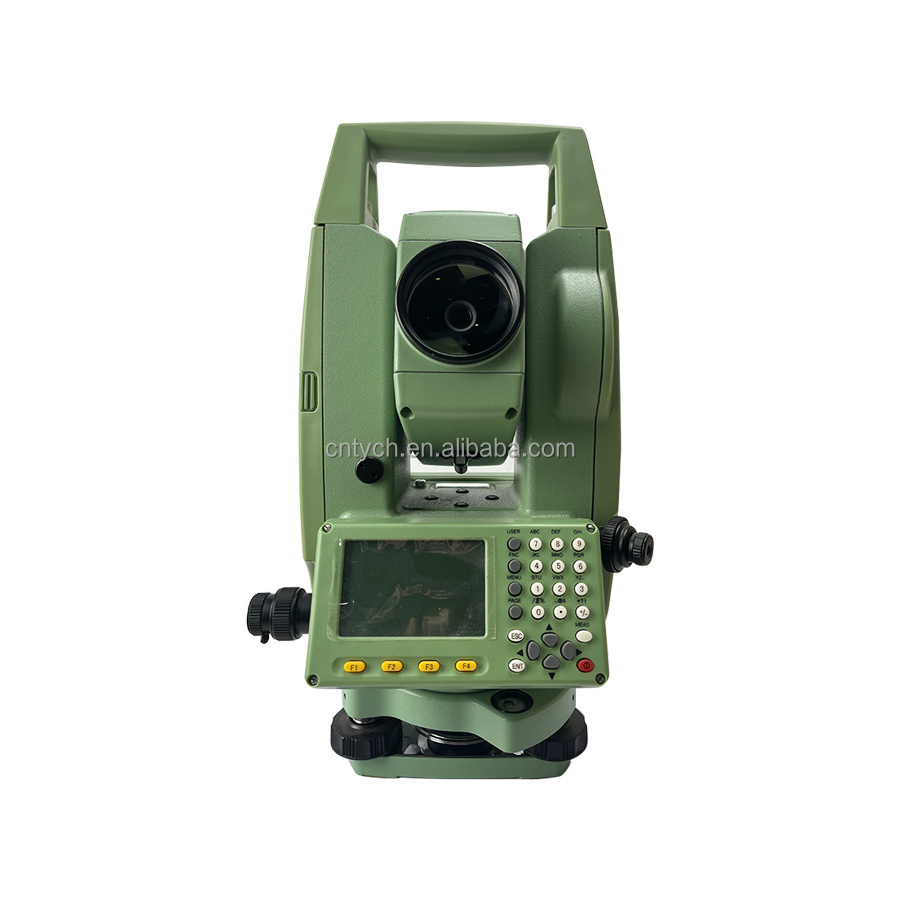

Total Station
-
principle:
-
absolute coding
-
Angle measurement standard:
-
2"
-
System:
-
Electronic biaxial liquid compensator
-
scope of work:
-
±4'
-
Compensation accuracy:
-
1"
-
ranging:
-
3000m
-
Range Accuracy:
-
2mm+2ppm
-
operation temperature:
-
-20℃~+50℃
-
Dust and waterproof:
-
IP54
Quick Details
-
Warranty:
-
6month
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
sts752
-
Product name:
-
Total Station
-
principle:
-
absolute coding
-
Angle measurement standard:
-
2"
-
System:
-
Electronic biaxial liquid compensator
-
scope of work:
-
±4'
-
Compensation accuracy:
-
1"
-
ranging:
-
3000m
-
Range Accuracy:
-
2mm+2ppm
-
operation temperature:
-
-20℃~+50℃
-
Dust and waterproof:
-
IP54
|
Distance measurement
|
|
|
|
Single prism
|
2.4 Km
|
|
|
Three prisms
|
3.0 Km
|
|
|
accuracy
|
2+2 ppm
|
|
|
Time
|
Accurate measurement for 3 seconds, tracking for 1 second
|
|
|
Angle measurement
|
Absolute encoding
|
|
|
Disc diameter
|
79mm
|
|
|
Minimum display reading
|
1 "/5"/10 "optional
|
|
|
telescope
|
|
|
|
imaging
|
just as
|
|
|
Mirror tube length
|
154mm
|
|
|
Effective aperture of objective lens
|
Telescope: 45mm, ranging: 50mm
|
|
|
Magnification rate
|
３０×
|
|
|
viewing angle
|
1 ° 30 ′
|
|
|
Minimum focusing distance
|
１ｍ
|
|
|
Automatic vertical compensator
|
|
|
|
scope of work
|
±３′
|
|
|
accuracy
|
１″
|
|
