Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Sunergy
-
Model Number:
-
SUN-66MD-H12S
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2384*1303*35mm
-

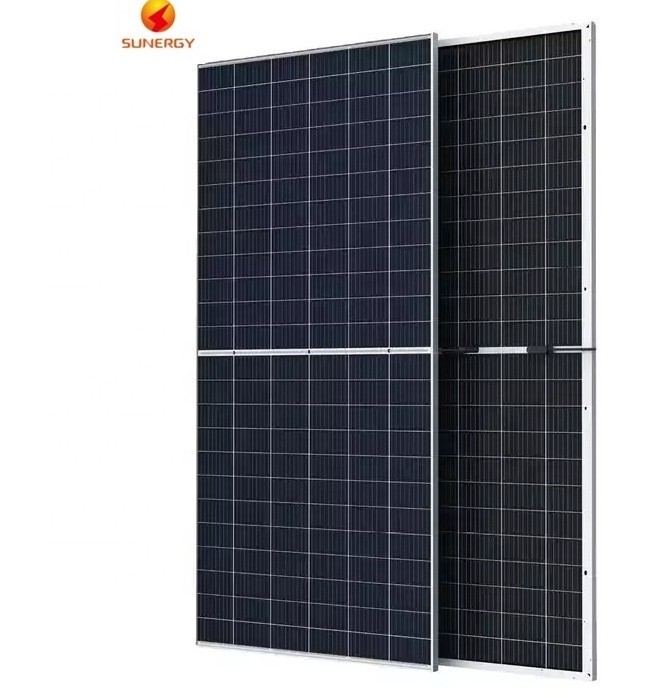

Product name:
-
Solar Panel
-
Application:
-
Solar Power System
-
Solar cell:
-
Mono 210mm*105mm
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2mm Tempered Low Iron
-
Cable:
-
Customized Length
-
Junction Box:
-
IP68 Rated
-
Connector:
-
MC4 Compatible Connector
-
Max. Power:
-
700w
-
OEM Order:
-
Acceptable
Quick Details
-
Cell size:
-
210*105mm Mono
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black
-
Panel Efficiency:
-
21.41%
-
Warranty:
-
25 years
-
Brand Name:
-
Sunergy
-
Model Number:
-
SUN-66MD-H12S
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2384*1303*35mm
-
Product name:
-
Solar Panel
-
Application:
-
Solar Power System
-
Solar cell:
-
Mono 210mm*105mm
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2mm Tempered Low Iron
-
Cable:
-
Customized Length
-
Junction Box:
-
IP68 Rated
-
Connector:
-
MC4 Compatible Connector
-
Max. Power:
-
700w
-
OEM Order:
-
Acceptable
Products Description
Solar Cell
MBB Available
166cells, 182cells, 210cells High Efficiency Cells
Anti-Pid
166cells, 182cells, 210cells High Efficiency Cells
Anti-Pid
Frame
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
EVA
High Transmittance EVA,High GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.
Junction--Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Compatible
MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
Female/Male/Fuse
Label
Waterproof Customized Label
OEM/ODM with your Logo
Professional Silver Color
OEM/ODM with your Logo
Professional Silver Color
|
Electrical Characteristics
|
|
|
|
|
|
|
||||||
|
Module Type
|
540W
|
|
545W
|
|
550W
|
|
||||||
|
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
||||||
|
Maximum Power At STC(Pmax)
|
540W
|
406.8W
|
545W
|
410.5W
|
550W
|
414.3W
|
||||||
|
Short Circuit Current(Isc)
|
13.70A
|
11.07A
|
13.76A
|
11.12A
|
13.82A
|
11.17A
|
||||||
|
Open Circuit Voltage(Voc)
|
49.8V
|
46.5V
|
50.0V
|
46.7V
|
50.2V
|
46.9V
|
||||||
|
Maximum Power Current(Impp)
|
12.86A
|
10.49A
|
12.92A
|
10.54A
|
12.98A
|
10.58A
|
||||||
|
Maximum Power Voltage(Vmpp)
|
42.0V
|
38.8V
|
42.2V
|
39.0V
|
42.4V
|
39.1V
|
||||||
|
Module Efficiency
|
20.92%
|
|
21.10%
|
|
21.29%
|
|
||||||
|
Power Tolerance
|
0～+5W
|
|
|
|
|
|
||||||
|
Maximum System Voltage
|
VDC 1500V
|
|
|
|
|
|
||||||
|
Maximum Series Fuse
|
25A
|
|
|
|
|
|
||||||
|
Increased Snowload Acc.to lec 61215
|
5400Pa
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-40～+85℃
|
|
|
|
|
|
||||||
|
Number of Bypass Diodes
|
3
|
|
|
|
|
|
||||||
|
Norminal Operating Cell Temperature(Noct)
|
45℃±2℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax
|
-0.35%℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc
|
-0.27%℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc
|
0.05%℃
|
|
|
|
|
|
||||||
|
STC (standard test environment): irradiance 1000W/m², battery temperature 25°C, spectrum AM1.5
NOCT (normal battery operating temperature): irradiance 800W/m², ambient temperature 20°C, spectrum AM1.5, wind speed 1m/s. |
|
|
|
|
|
|
||||||
