Quick Details
-
Standard diameter of clamp valve:
-
4-14/3.5-20
-
OEM:
-
Accept
-
Special diameter of valve:
-
4-7/14-18
-
Gross Weight:
-
150kg/240kg
-
Material:
-
steel
-
Size:
-
700*600*600mm
-
Package:
-
Plastic Box
-
Maximum cutting depth:
-
0.025
Quick Details
-
Warranty:
-
12 Months
-
Name:
-
Valve Seat Boring Grinding and Cutting Machine
-
Maximum diameter of grindable valve:
-
90mm-100mm
-
Standard diameter of clamp valve:
-
4-14/3.5-20
-
OEM:
-
Accept
-
Special diameter of valve:
-
4-7/14-18
-
Gross Weight:
-
150kg/240kg
-
Material:
-
steel
-
Size:
-
700*600*600mm
-
Package:
-
Plastic Box
-
Maximum cutting depth:
-
0.025

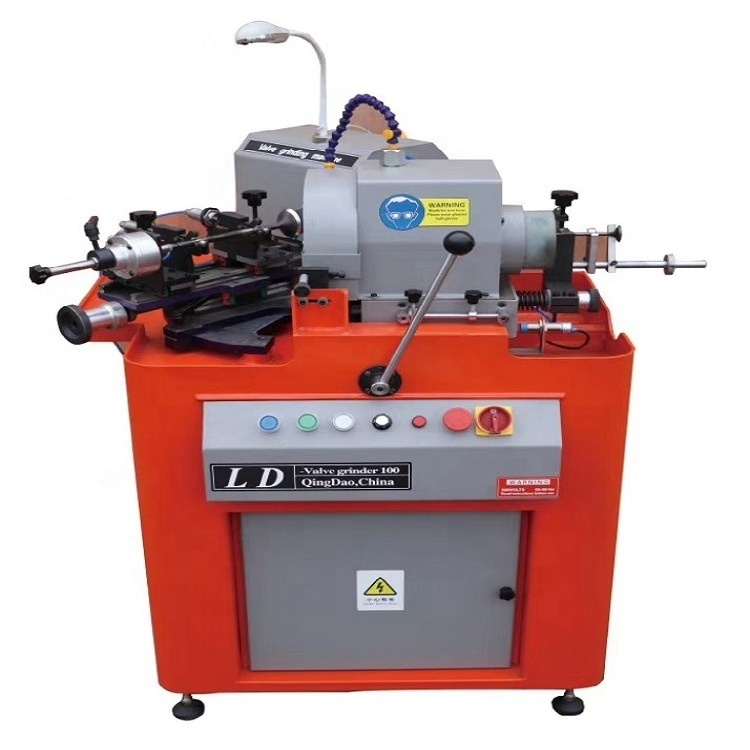

Factory directly supply Valve Seat Boring Grinding and Cutting Machine
Main features
This machine is a special machine tool for grinding internal combustion engine valve, automobile engine valve and tractor engine valve
|
Main parameter |
VR90 |
LD100 |
|
Maximum diameter of grindable valve |
90 mm |
100MM |
|
Standard for straight diameter of clamp valve |
4-14 |
3.5-20 |
|
Special diameter of clamp valve |
4-7 |
|
|
Special diameter of clamp valve |
14-18 |
|
|
Transverse movement of grinding head |
95 |
90 |
|
Longitudinal movement of vehicle head |
120 |
|
|
Maximum cutting depth |
0.025 |
|
|
Grinding valve angle |
25-60 |
10-54 |
|
Spindle speed of grinding head |
4500 roll / Min |
2900 |
|
Spindle speed of headstock |
125 roll / min |
|
|
Power of grinding head motor |
0.37kw |
|
|
Front motor power |
0.09kw |
|
|
Main engine weight |
150kG |
240KG |
|
Size |
700*600*600mm |
1050*1000*1080mm |
