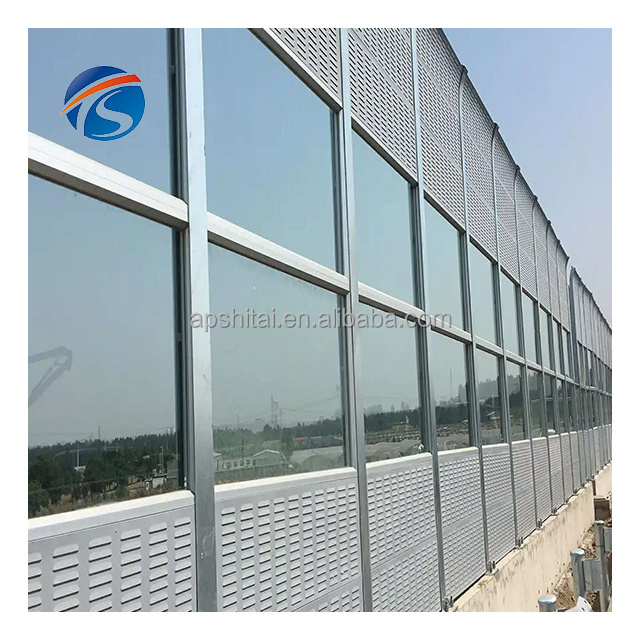

High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways
High quality heavy duty noise reduction barrier fence  acrylic sound barrier wall noise barrier panel for highways and railways

High quality heavy duty noise reduction barrier fence acrylic sound barrier wall noise barrier panel for highways and railways

FOB Reference Price: Get Latest Price
≥50 Square meters
US $28
≥200 Square meters
US $26.6
≥500 Square meters
US $24.2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Highways,Railways,Outdoor, Highway,Railways,Outdoor
Design Style:
Morden
Place of Origin:
Hebei, China
Brand Name:
ShiTai
Model Number:
STA6
Type:
Noise barrier
Product name:
Acrylic Sound Barrier
Material:
Aluminium Sheet,Galvanized Sheet,Steel Sheet,Galfan Sheet,etc
Surface treatment:
Powder coating
Colors:
Silvery Gray,Blue,Green,Customized colors
NRC:
≥0.84
Size:
Customized
RW:
≥35dB
Post:
H steel post
Density:
1.2g/cm3

Quick Details

Warranty:
More than 5 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
Application:
Highways,Railways,Outdoor, Highway,Railways,Outdoor
Design Style:
Morden
Place of Origin:
Hebei, China
Brand Name:
ShiTai
Model Number:
STA6
Type:
Noise barrier
Product name:
Acrylic Sound Barrier
Material:
Aluminium Sheet,Galvanized Sheet,Steel Sheet,Galfan Sheet,etc
Surface treatment:
Powder coating
Colors:
Silvery Gray,Blue,Green,Customized colors
NRC:
≥0.84
Size:
Customized
RW:
≥35dB
Post:
H steel post
Density:
1.2g/cm3
Products Description
A noise barrier (also called a soundwall, sound berm, sound barrier, or acoustical barrier) is an Sound insulation and noise reductionexterior structure designed to protect inhabitants of sensitive land use areas from noise pollution.
Product Size
Parts list
Items
Product description
Noise barrier panel
Metal material
Galvanized sheet aluminum alloy sheet, color plate
Transparent material
Glass, PC board, acrylic board, etc.
Other material
High strength cement, cement wood chips, glass steel, etc.
Hole pattern
Louver holes; common hole spacing 20*137, 20*182
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances
Aperture ratio
Not less than 25%
Common size
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
surface concave groove
Can be customized according to drawings or customer requirements
Surface treatment
Electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
H shape post
Material
Q235B
Common size
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
Common height
2m-6m up to12m
Flange
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
Surface treatment
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
Noise absorb material
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.
Composition structure
The noise barrier Screen body is mainly composed of shutter metal galvanized sheet, fiberglass mesh, and stone wool
Details Images
Application
Noise barrier is mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways, elevated composite roads, urban light rail and subways, and to control the impact of traffic noise on nearby urban areas. It can also be used for sound insulation and noise reduction in factories and other noise sources.
