Quick Details
-
Brand Name:
-
Longxingsheng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6500*3800*3000
-
Weight:
-
3500 KG
-
product name:
-
Automatic case maker for hard cover making
-
box size (Length):
-
80-600 mm
-
box size (Width):
-
65-400 mm
-
box size (Height):
-
15-120 mm
-
working speed:
-
15-25 sheets/min
-
Air pressure:
-
40L/min 0.8Mpa
-
Max paper size:
-
800*600mm
-
Min paper size:
-
150*100mm
-
Paper thickness:
-
80-350gsm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
packaging machine
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Longxingsheng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6500*3800*3000
-
Weight:
-
3500 KG
-
product name:
-
Automatic case maker for hard cover making
-
box size (Length):
-
80-600 mm
-
box size (Width):
-
65-400 mm
-
box size (Height):
-
15-120 mm
-
working speed:
-
15-25 sheets/min
-
Air pressure:
-
40L/min 0.8Mpa
-
Max paper size:
-
800*600mm
-
Min paper size:
-
150*100mm
-
Paper thickness:
-
80-350gsm
-
After Warranty Service:
-
Video technical support

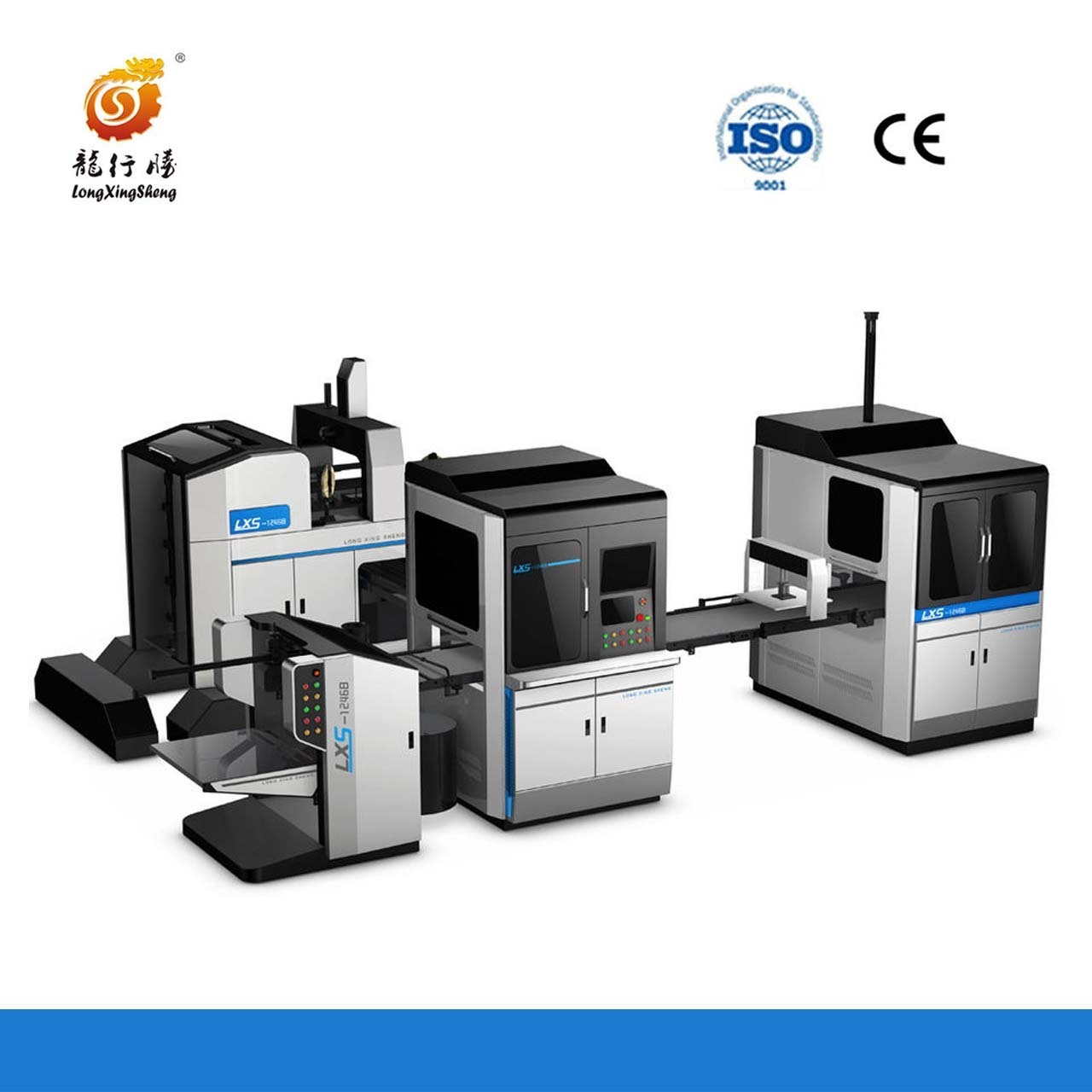

LS-1246G automatic case maker with Paper cardboard set up box wrapping machine
Main features.
1
. Multi-functional
, LS-1246G has rigid box making function, hardcover positioning function.
2.
Can connect with four sides wrapping machine to make hard cover.
3. No need to move camera.
4. Max box length 600mm, Max box width 400mm, Max box height 120mm.
5. Edge folding length 10-100mm
6. Wrapping into bottom length 100mm
7.
YAMAHA Robotic arm
8. Double Germany cameras (1000 pixels)
9. Mitsubishi servo motor.
10.Panasonic PLC
11.Anti-leaking gluing system
12. Servo motor feeding system
13. Working speed of opposite folding box 19 pcs/min, Four side folding box 22 pcs/min.
Price vary with raw material cost, please contact our sales for lastest prices.
|
LS-1246G Multi-function fully automatic rigid box making machine
|
|
|
|
Machine model 型号
|
LS-1246G
|
|
|
Paper size(max) 面纸最大尺寸
|
L800*W600mm
|
|
|
paper size (min) 面纸最小尺寸
|
L150*W100mm
|
|
|
Box Length 纸盒长度
|
100-600mm
|
|
|
Box Width 纸盒宽度
|
60-400mm
|
|
|
Box Height 纸盒高度
|
15-140mm
|
|
|
Paper thickness 面纸厚度
|
80-350g/㎡
|
|
|
Cardboard thickness 灰板厚度
|
0.8-3mm
|
|
|
Working speed 工作速度
|
15-25pcs/min
|
|
|
Edge folding size 折耳尺寸
|
10-100mm
|
|
|
Turn in depth 面纸折入深度
|
15-100mm
|
|
|
Motor power 电机功率
|
12.5kw/380v 3 phase
|
|
|
Heating power 电热功率
|
8 kw
|
|
|
Air pressure 气源要求
|
40L/min 0.8Mpa
|
|
|
Weight of machine 机器重量
|
3800kg
|
|
|
Machine dimension 机器尺寸
|
L6500*W3600*H3200mm
|
|
Product Parameters
Optional function
Hardcover feeding device (Optional device)
It applied in hardcover making, inner paper of hardcover pasting.
Glue viscosity device (Optional device)
Detecting hot melt glue thickness, adding water to glue tank automatically.
LS-F6 Rigid box making machine (Optional device)
Normal size, small size able to be modified in this machine
Forming part can be sold separately
For customer not have enough budget, this forming part able to add separately.
Products Description
Control table
Including touch screem, Monitor, button for control movment.
Electric box
Including controller of robotic arm, servo motor driver, PLC etc.
Paper feeding device
Cam structure paper feeding device which is drived by servo motor.
Gluing system
Upgrade gluing system, higher using rate of glue
Corner pasting and feeding
Automatic corner pasting and box feeding
Positioning system
Including robotic arm, light source, double camera.
Second box pressing
Pressing box tightly on the glued paper.
Box feeding
Easy operational box feeding system
Forming part
Forming machine with simple structure. Able to do normal rigid box, slant side box (Mold customization), long edge folding box, wrapping into bottom.
Machine parts
Finished products by LS-1246G
Machine installation
