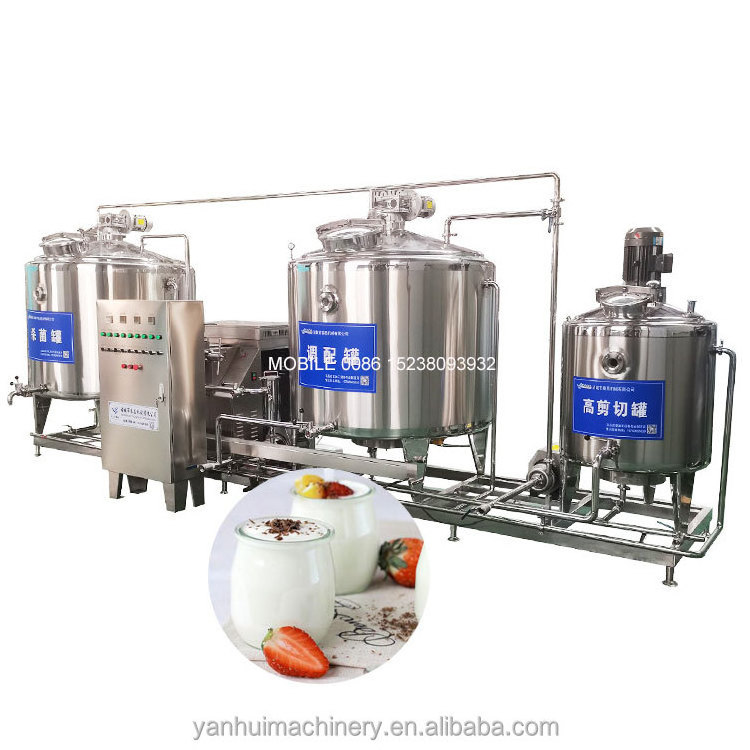

Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine
Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine

Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $3300
≥10 Sets
US $2600
≥20 Sets
US $990
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight:
120 KG

Quick Details

Place of Origin:
China
Voltage:
220-380v
Power:
5500
Weight:
120 KG

Milk Cheese Vat Process Machine Juice Stainless Steel Pasteurizer Machine 1000l With Cooling Machine

Contact Card

The price marked on the website is for reference only. There are many product models, please contact Amanda for exact price

Product Description

The price marked on the website is for reference only. There are many product models, please contact Amanda for the specific price

The milk pasteurizer is currently one of the most ideal and effective milk sterilization equipment. It is made of high-quality stainless steel and can control the water temperature in the sterilization tank to between 85° and 90° for all types of packaged or canned foods. time, it can not only achieve a sterilization effect, but also ensure that nutrients such as proteins do not change within a large temperature difference range, maintaining the original quality, taste, color, etc. of the food, so as to achieve the goal of not adding any preservatives to the food, which is beneficial to consumers. Good health, especially extending the shelf life and storage period.

Things to note when cleaning:
1. Ensure sufficient supply of concentrated acid and alkali during cleaning
2. If the temperature is low for a long time, check whether the ice water inlet and outlet butterfly valves are closed.
3. Whether the cooling water is turned on when cleaning the homogenizer; when cleaning the single-effect falling film device, check the evaporation chamber
4. When the conductivity meter of the cleaning circuit does not change for a long time, immediately check all valve actions, especially whether the manual valve is open.
5. The pressure of the pasteurized discharge port is guaranteed to be 2.5-3.5 bar
6. When cleaning 1500 times, select the cleaning mode according to the needs of the product
7. Cold homogeneous cleaning is the same as pipeline cleaning
8. Clean alkali conductivity 40ms, acid conductivity 20ms

Details of machine

Configuration table

For different processing raw materials, juice, milk, etc., the parameters of the equipment will be slightly different. The specific parameters are subject to the quotation and the actual product.

Model

100L

150L

200L

Heating power

380V 12kw

380v 12kw

380v 15kw

Dimension

1900*800*1980mm

1900*800*1980mm

1900*800*1980mm

Weight

400kg

450kg

500kg

Diameter of drum

630mm

630mm

630mm

Height of drum

400mm

600mm

670mm

Sterilization temperature

60-99C

60-99C

60-99C

Cooling temperature

10-40C

10-40C

10-40C

Mixing speed

36r/min

36r/min

36r/min

Mixing motor power

0.37w

0.37w

0.37w

Workshop & Warehouse

Our Services

Service before sale

24 hours online to answer questions that you want to know(Whatsapp, wechat, QQ, Skype, Trade Manager, etc), or  you can send email to my email, I will give you a satisfying answer.

Service on sale

1.To provide customers with the new and high quality animal feed pellet machine.

2.Provide pictures that the customer desired about the animal feed pellet machine during production, in the warehouse and before transport.

3.Payment is determined by both parties.

4.Customers to choose the mode of transport.

After-sales services

We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
