Quick Details
-
Fluid:
-
AIR
-
Ambient and fluid temperature:
-
--5~60°C (Non-freezing)
-
Thread:
-
BSPP
-
Packing:
-
One piece lubricator
-
Valve Material:
-
Aluminum,plastic
-
Brand Name:GOGOis_customized:
-
YES
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GOGO ATC
-
Port:
-
3/8"
-
Fluid:
-
AIR
-
Ambient and fluid temperature:
-
--5~60°C (Non-freezing)
-
Thread:
-
BSPP
-
Packing:
-
One piece lubricator
-
Valve Material:
-
Aluminum,plastic
-
Brand Name:GOGOis_customized:
-
YES
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None

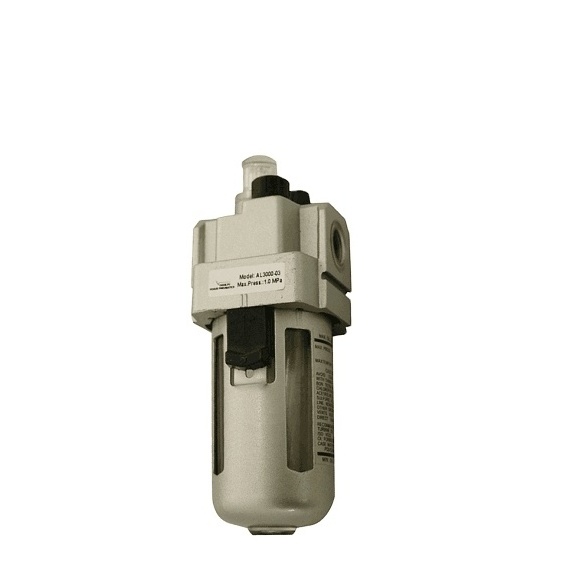

GOGO ATC Source Treatment Unit Pneumatic Lubricator
high quality smc type water oil air lubricator
Model: AL3000-03 3/8 inch BSPP
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **
1.Specification
|
Model |
AL1000 |
AL2000 |
AL3000 |
AL4000 |
AL4000-06 |
AL5000 |
|
|
Port size |
M5×0.8 |
G1/8, G1/4 |
G1/4, G3/8 |
G3/8, G1/2 |
G3/4 |
G3/4, G1 |
|
|
Fluid |
Air |
||||||
|
Proof pressure |
1.5 Mpa |
||||||
|
Max. operating pressure |
1.0 Mpa |
||||||
|
Min operating flow (L/min) |
4 |
15 |
G1/4:30 G3/8:40 |
G3/8:40 G1/2:50 |
50 |
190 |
|
|
Bowl capacity (cm3) |
7 |
25 |
50 |
130 |
130 |
130 |
|
|
Recommended oil |
Turbin oil class 1 (ISO VG32) |
||||||
|
Ambient and fluid temperature |
-5~60°C (Non-freezing) |
||||||
|
Bowl material |
Polycarbonate |
||||||
|
Weight(kg) |
0.07 |
0.22 |
0.28 |
0.52 |
0.58 |
1.08 |
|
|
Accessory (Standard equipment) |
Bowl guard |
- |
- |
* |
* |
* |
* |
|
Bracket assembly(1) |
B140A |
B240A |
B340A |
B440A |
B540A |
B640A |
|
|
Note 1): conditions: Primary pressure=0.5 Mpa, Number of drop=5/min, turbine oil class 1(ISO VG32), Needle s |
|||||||
2.Dimensions
3. Picture
