Quick Details
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SRV-20000
-
Name:
-
Voltage Stabilizer
-
Type:
-
Relay Type
-
Input voltage:
-
140V-260V
-
Output voltage:
-
220v+-8%adustable
-
Frequency:
-
50Hz/60Hz
-
Protection system:
-
short circuit,over heating,over/lack voltage,over load
-
waveform:
-
No additional wave form distortion,15kva automatic voltage stabilizer
-
Delay time:
-
Short 5s-+2s(can be selected)
-
Power factor:
-
0.8(can Customized 100% full power)
-
Certification:
-
ISO9001:2008,PCT,,CE
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SRV-20000
-
Name:
-
Voltage Stabilizer
-
Type:
-
Relay Type
-
Input voltage:
-
140V-260V
-
Output voltage:
-
220v+-8%adustable
-
Frequency:
-
50Hz/60Hz
-
Protection system:
-
short circuit,over heating,over/lack voltage,over load
-
waveform:
-
No additional wave form distortion,15kva automatic voltage stabilizer
-
Delay time:
-
Short 5s-+2s(can be selected)
-
Power factor:
-
0.8(can Customized 100% full power)
-
Certification:
-
ISO9001:2008,PCT,,CE

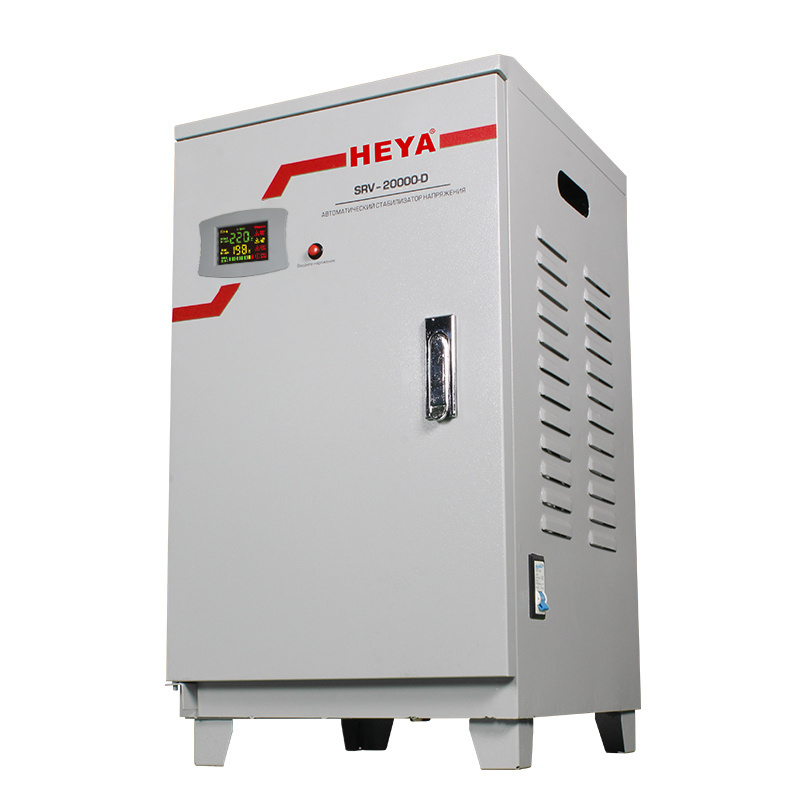

SRV-20000 220V 50Hz/60Hz Frequency Relay Control Voltage Regulator
|
Model |
SRV-15000-D |
S RV-20000-D |
|
Nominal Power |
15000V A |
20000VA |
|
Power Factor |
0.6-1.0 |
|
|
Input |
||
|
Operating Voltage Range |
A:70~285V, B:90~285V , C:125~285V |
|
|
Regulation Voltage Range |
A:80~260V, B:100~260V , C:140~260V |
|
|
Frequency |
50HZ |
|
|
Connection Type |
Input terminal block |
|
|
Output |
||
|
Operating Voltage |
180~255V |
|
|
High Cut Voltage |
255V |
|
|
Low Cut Voltage |
180V |
|
|
Safety Cycle |
3 Seconds / 180 Seconds (Optional) |
|
|
Frequency |
50HZ |
|
|
Connection Type |
Output terminal block |
|
|
Regulation |
||
|
Regulation % |
8% |
|
|
Number of Taps |
5 |
|
|
Transformer Type |
Toroidal auto transformer |
|
|
Regulation Type |
Relay type |
|
|
Indicators |
||
|
LED display |
Input voltage , Output voltage , Delay time |
|
|
Protection |
||
|
Over Temperature |
Auto Shutdown at 120 ℃ |
|
|
Short Circuit |
Auto Shutdown |
|
|
Overload |
Auto Shutdown |
|
|
Over / Under Voltage |
Auto Shutdown |
|
Packaging information
|
Model |
Unit(PCS) |
Device Size(MM) |
Package Size(MM) |
G.W.(KGS) |
|
SRV-15000-D |
1 |
310*270*560 |
410*360*650 |
30.00 |
|
SRV-20000-D |
1 |
360*340*620 |
450*430*725 |
37.00 |
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.
Q 2. how's the delivery time ?
A. usually it will take about 10-25 days for production.For sample usually in 1 week.
