Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
0.254 wall thick
-
Diameter:
-
customized
-
Product name:
-
round shaft helical piers
-
Shaft Material:
-
conforms to ASTM A500 GRADE B
-
Helices material:
-
ASTM A36 Hot rolled plate
-
Load Capacity:
-
greater
-
Size:
-
all sizes or as your requirement
-
Degress:
-
45 degress
-
Corrosion protection:
-
conform to ASTM A153 standard
-
Customized:
-
available
-
Sample:
-
available
-
name:
-
platform hot sale spiral screw piers for house
Quick Details
-
System of Measurement:
-
INCH
-
Material:
-
Steel
-
Capacity:
-
Strong
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
0.254 wall thick
-
Diameter:
-
customized
-
Product name:
-
round shaft helical piers
-
Shaft Material:
-
conforms to ASTM A500 GRADE B
-
Helices material:
-
ASTM A36 Hot rolled plate
-
Load Capacity:
-
greater
-
Size:
-
all sizes or as your requirement
-
Degress:
-
45 degress
-
Corrosion protection:
-
conform to ASTM A153 standard
-
Customized:
-
available
-
Sample:
-
available
-
name:
-
platform hot sale spiral screw piers for house

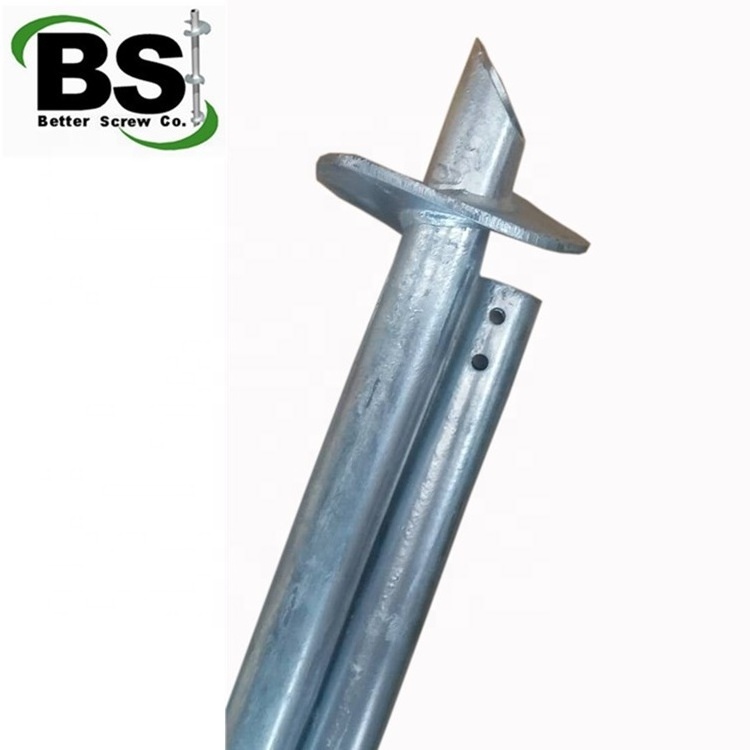

Round shaft helical piles
Product Description
Round shaft helical piers
*Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
*Helices material: ASTM A36 Hot rolled plate
*Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
*Round Shank Anchors are Hot Dip Galvanized to meet ASTM Specification A153.
*Leading edge of Helices beveled 45 degrees
*Greater Section Modulus Strength to resist Twisting and Deflection
*Greater Load Capacities
*Helices material: ASTM A36 Hot rolled plate
*Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
*Round Shank Anchors are Hot Dip Galvanized to meet ASTM Specification A153.
*Leading edge of Helices beveled 45 degrees
*Greater Section Modulus Strength to resist Twisting and Deflection
*Greater Load Capacities
| Specification | |||||||||
| shaft size(inch) | Wall Thick(inch) | Helix Size (inch) | Lead Length (ft) | Helix Size (inch) | Extension Length(ft) | ||||
| 2.875 OD. | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft | ||||
| 3.00 OD. | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft | ||||
| 3.50 OD. | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft | ||||
| 4.50 OD. | 0.290/0.337 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft | ||||
| 5.50 OD. | 0.362 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft | ||||
| 6.625 OD. | 0.562 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft | ||||
| note:Other sizes are available upon request | |||||||||
