Quick Details
-
Type:
-
3-way
-
System Type:
-
Active
-
Color:
-
Black
-
Material:
-
Plywood
-
Feature:
-
Perfect Sound
-
Keyword:
-
Sound Speaker
-
Sensitivity:
-
100dB
Quick Details
-
Product Name:
-

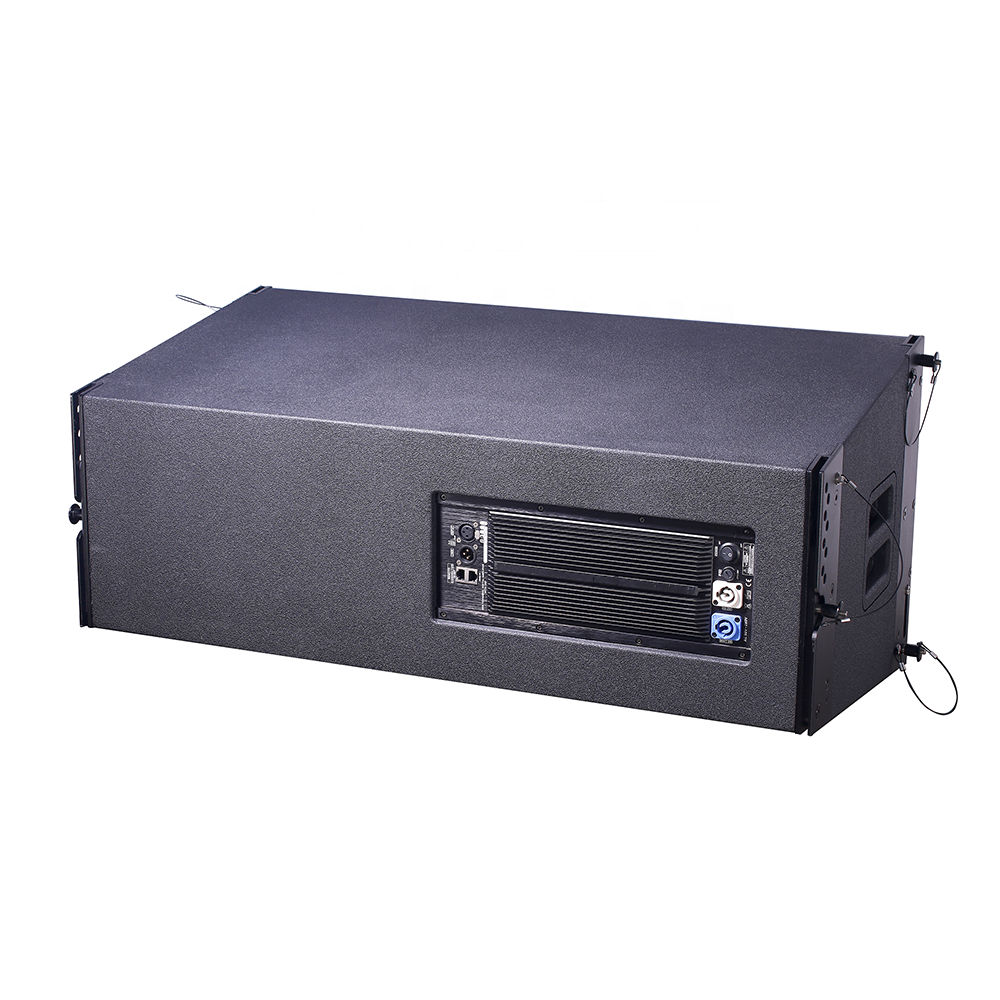

Line Array Speakers
-
Application:
-
large show / stadium / theater
-
Use:
-
Outdoor Perfornance
-
Type:
-
3-way
-
System Type:
-
Active
-
Color:
-
Black
-
Material:
-
Plywood
-
Feature:
-
Perfect Sound
-
Keyword:
-
Sound Speaker
-
Sensitivity:
-
100dB
|
ER388L Parameter: |
|
|
LF Rated power |
700W |
|
LF Peak power |
1400W |
|
MF Rated power |
300W |
|
MF Peak power |
600W |
|
HF Rated Power |
120W |
|
HF Peak Power |
240W |
|
Components |
LF: 2 x 12" (Neo), MF: 2 x 6.5"Neo HF: 2 x1.75" (Neo) |
|
LF Sensitivity(1w/m) |
100 dB |
|
MF Sensitivity(1w/m) |
103 dB |
|
HF Sensitivity(1w/m) |
112 dB |
|
Input Impedance |
20 KΩ |
|
Input Sensitivity |
0.775V |
|
Frequency Range |
50Hz-20KHz |
|
Dispersion Angle |
(H×V)120°× 8° |
|
Output Power |
600W+800W+1000W/8Ω |
|
Distortion |
<0.05% |
|
Power Connector |
Power Con |
|
Operating Voltage |
230V 50/60Hz |
|
Color |
Black |
|
Net Weight |
35Kg |
|
Dimension(LxWxH) |
890×442×405mm |
|
Built-in ALLDSP digital audio processor |
|
|
ER388SUBL Parameter: |
|
|
Rated power |
1200W |
|
Peak power |
2400W |
|
Components |
2×18"Neo Subwoofer |
|
Sensitivity(1w/m) |
108 dB |
|
Rated Maximum SPL |
134 dB |
|
Input Impedance |
20 KΩ |
|
Input Sensitivity |
0.775V |
|
Frequency Range |
45Hz-300Hz |
|
Output Power |
2400W/4Ω |
|
Distortion |
<0.05% |
|
Power Connector |
Power Con |
|
Operating Voltage |
230V 50/60Hz |
|
Color |
Black |
|
Net Weight |
110Kg |
|
Dimension(LxWxH) |
1174×927×594mm |
|
Built-in ALLDSP digital audio processor |
|
|
Matched with ER388L when use |
|
