We can select different filter combinations according to the different needs of different materials, and can be designed from primary to multi-stage filtration, so as to achieve the ideal filtering effect.
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-
High Precision Bag Filter Mobile Water Filter for Water Treatment
-
Keyword:
-
Mobile Parallel clear water filter housing
-
Material:
-
Carbon steel/ stainless steel
-
Material of sealing/gasket:
-
Silicone, nitrile butadiene rubber, PTFE rubber
-
Material of filter bag:
-
PP, PE, PTFE, Nylon mesh, Stainless steel or woven cloth
-
Product Type:
-
Stainless Steel Solid Liquid Filter
-
Filter material:
-
Stainless Steel304/316L
-
Filter media:
-
Filter bag
-
Structure:
-
Filter housing, filter basket, filter bag
-
Feature:
-
Portable
Quick Details
-
Weight (KG):
-
100
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Junyi
-
Product Name:
-
High Precision Bag Filter Mobile Water Filter for Water Treatment
-
Keyword:
-
Mobile Parallel clear water filter housing
-
Material:
-
Carbon steel/ stainless steel
-
Material of sealing/gasket:
-
Silicone, nitrile butadiene rubber, PTFE rubber
-
Material of filter bag:
-
PP, PE, PTFE, Nylon mesh, Stainless steel or woven cloth
-
Product Type:
-
Stainless Steel Solid Liquid Filter
-
Filter material:
-
Stainless Steel304/316L
-
Filter media:
-
Filter bag
-
Structure:
-
Filter housing, filter basket, filter bag
-
Feature:
-
Portable
Product Description

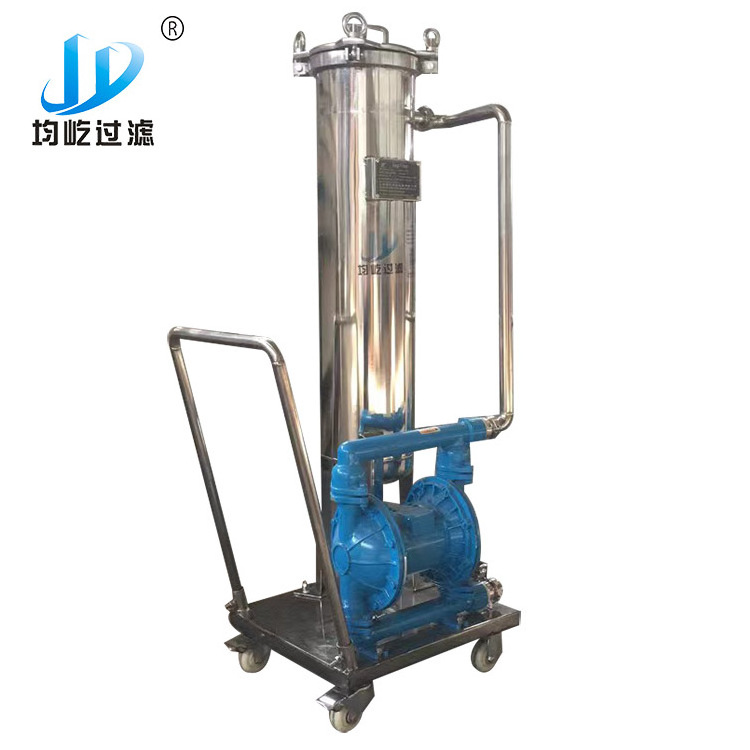

Mobile Bag Filter machine
It is a new type of filter system composed of single or multiple bag filters, pumps, pipe fittings, valves, trolleys, etc.
Features
The filter housing and filter basket inside are made of stainless steel.
The pump and filter machine are connected by pipes and valves, installed on a trolley, can be moved conveniently.
1. Good sealing
Special sealing ring and the ring mouth of the filter bag to strictly prevent internal and external leakage.
The replacement is convenient, safe and energy-saving
The side leakage probability of the filter bag is small, which can accurately ensure the filtration accuracy and quickly replace the filter bag.
2. High filtering precision and wide application range
High filtration precision, suitable for any fine particles or suspended solids, and the filtration range can be from 0.5 to 200 microns.
3. Can be easily moved.
Specification
|
Model
|
|
Filtration area(㎡)
|
Diameter of inlet/outlet
(mm)
|
Setting of working pressure
|
Max flow speed (viscosity 1mm2/s)
|
|
|
JYSF-3#
|
Single Bag Filter
|
0.09
|
DN25
|
Normal bag filter≤0.6MPA
(Designed pressure 1.0MPA) |
5m³/h
|
|
|
JYSF-4#
|
|
0.12
|
DN25
|
|
8m³/h
|
|
|
JYSF-1#
|
|
0.25
|
DN40
|
|
20m³/h
|
|
|
JYSF-2#
|
|
0.5
|
DN50
|
|
40m³/h
|
|
|
JYSF-5#
|
|
1
|
DN65
|
|
80m³/h
|
|
Application
