Quick Details
-
Brand Name:
-
CHONGHONG
-
Product name:
-
Underground Loader
-
Model:
-
ZL20C low
-
Bucket capacity (m³):
-
0.6
-
Rated Ioad (T):
-
1.6
-
Operating weight (T):
-
4.7
-
Speed (km/h):
-
0-18
-
Forward gear (km/h):
-
I 0-7 II 0-15
-
Reverse gear (km/h):
-
I 0-7 II 0-15
-
Max.climbing gradient:
-
15°
-
Overall dimension (LxWxH mm):
-
5110x1600x1900
Quick Details
-
Weight (KG):
-
4700
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
China
-
Brand Name:
-
CHONGHONG
-
Product name:
-
Underground Loader
-
Model:
-
ZL20C low
-
Bucket capacity (m³):
-
0.6
-
Rated Ioad (T):
-
1.6
-
Operating weight (T):
-
4.7
-
Speed (km/h):
-
0-18
-
Forward gear (km/h):
-
I 0-7 II 0-15
-
Reverse gear (km/h):
-
I 0-7 II 0-15
-
Max.climbing gradient:
-
15°
-
Overall dimension (LxWxH mm):
-
5110x1600x1900
Products Description

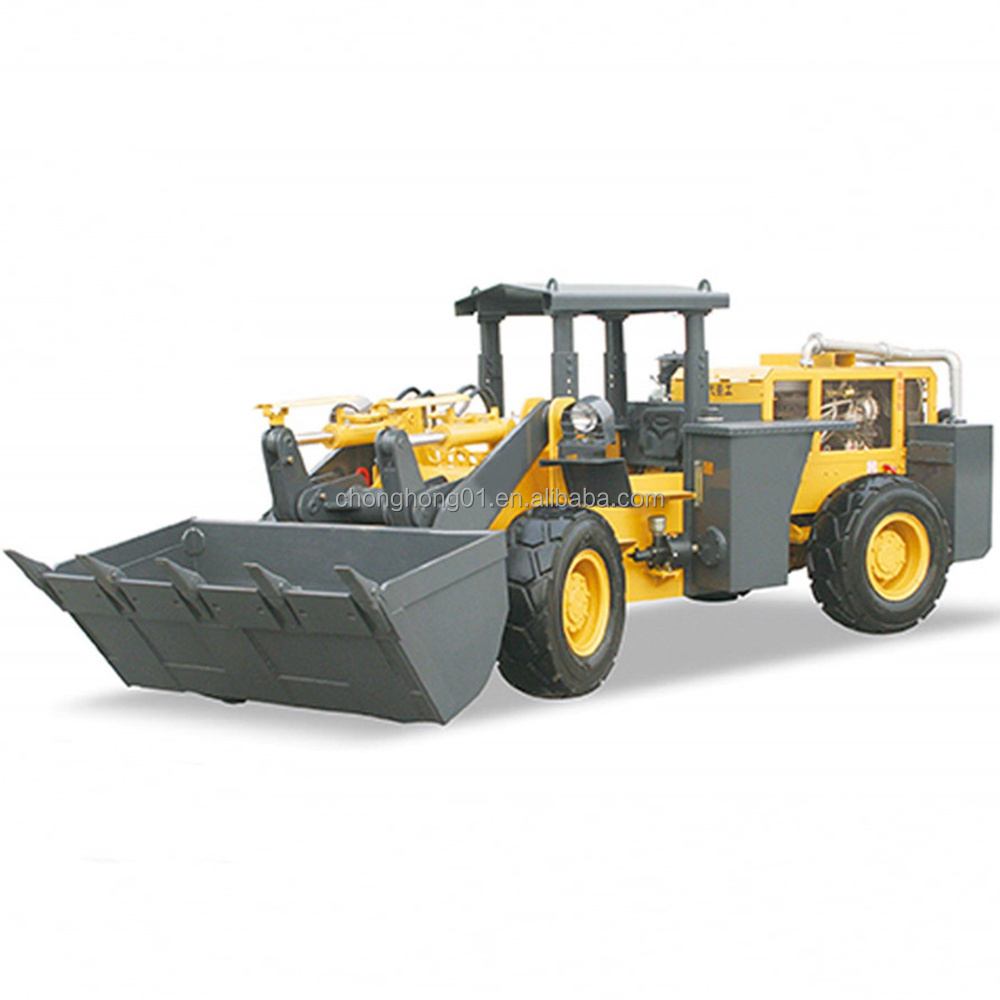

Underground Loader (20C)
Product Feature:
1.Power system adopts China’s top brand YUNNEI engine with low speed and high torque.
2.Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.
3.Service brake adopts air over hydraulic oil caliper brake technology.
4.Exhaust cleaning system is equipped with Diesel oxidation catalyst (DOC) and water filtration system, greatly reducing air pollution.
5.The loader has compact structure and small turning radius. It can be used for shoveling, loading, transporting and unloading. It is easy to be operated and has high working efficiency. Suitable for mining and roadway excavating, as well as road construction and material transportation.
Model:ZL20C low
Bucket capacity (m³):0.6
Rated Ioad (T):1.6
Operating weight (T):4.7
Speed (km/h):0-18
Forward gear (km/h):I 0-7 II 0-15
Reverse gear (km/h):I 0-7 II 0-15
Max.climbing gradient:15°
Overall dimension (L×W×H mm):5110×1600×1900
Wheel base (mm):2502
Wheel tread (mm):1250
Max. dumping height (mm):1720/2100
Dumping reach (mm):937
Engine model:4102 Pressurization
Rated power (kW):76
Tyre model:12-16.5
Model:ZL20C high
Bucket capacity (m³):0.6
Rated Ioad (T):1.6
Operating weight (T):4.5
Speed (km/h):0-18
Forward gear (km/h):I 0-7 II 0-15
Reverse gear (km/h):I 0-7 II 0-15
Max.climbing gradient:15°
Overall dimension (L×W×H mm):4720×1600×2300
Wheel base (mm):2300
Wheel tread (mm):1250
Max. dumping height (mm):1720/2100
Dumping reach (mm):937
Engine model:4102 Pressurization
Rated power (kW):76
Tyre model:12-16.5
Model:ZL20C side dumping
Bucket capacity (m³):0.6
Rated Ioad (T):1.6
Operating weight (T):4.7
Speed (km/h):0-18
Forward gear (km/h):I 0-7 II 0-15
Reverse gear (km/h):I 0-7 II 0-15
Max.climbing gradient:15°
Overall dimension (L×W×H mm):5200×1600×1900
Wheel base (mm):2502
Wheel tread (mm):1250
Max. dumping height (mm):2510
Dumping reach (mm):100
Engine model:4102 Pressurization
Rated power (kW):76
Tyre model:12-16.5
