Quick Details
-
Brand Name:
-
Lingfran
-
Model Number:
-
SBW-100KVA
-
Power:
-
100KVA
-
Input Voltage Range:
-
380V+/-20%
-
Output Voltage:
-
380V+/-3%
-
Response Time:
-
<1s
-
Efficiency:
-
>98%
-
Working Frequency:
-
50/60Hz
-
Bypass:
-
Manual
-
Protection:
-
Phase loss, under/over voltage, overload, short circuit
-
Overload Capacity:
-
2 times of rated output current, last for 1 minute
-
Waveform Distortion:
-
Nil
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lingfran
-
Model Number:
-
SBW-100KVA
-
Power:
-
100KVA
-
Input Voltage Range:
-
380V+/-20%
-
Output Voltage:
-
380V+/-3%
-
Response Time:
-
<1s
-
Efficiency:
-
>98%
-
Working Frequency:
-
50/60Hz
-
Bypass:
-
Manual
-
Protection:
-
Phase loss, under/over voltage, overload, short circuit
-
Overload Capacity:
-
2 times of rated output current, last for 1 minute
-
Waveform Distortion:
-
Nil

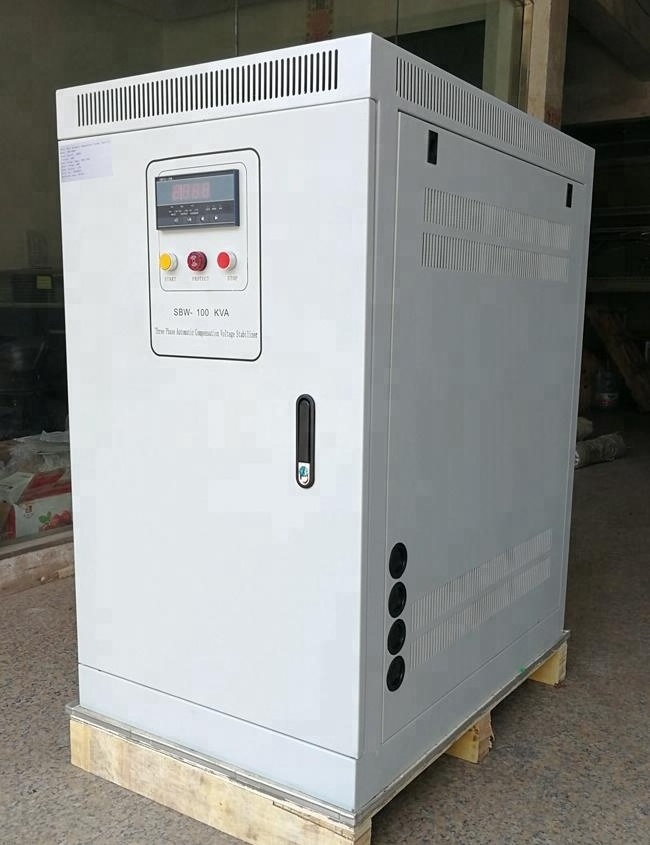

3 phase 100kva voltage stabilizer for water pump
Our voltage stabilizers have special advantages and very different from others.
(1) All new raw materials.
(2) Full (100%) capacity. 80% or less capacity is NOT recommended.
(3) State-of-the-art technology makes true energy saving.
(4) Simple installation, safe protection, reliable operation, low maintenance.
(5) Clear, comprehensive documentation and labeling.
(6) Suitable for 3 phase imbalanced/balanced supply & imbalanced/balanced load.
(7)
THREE YEARS warranty!
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.
| KVA Rating | 100KVA |
| Input Voltage Range | 380V±20% |
| Output Voltage | 380V±3% |
| Working Frequency | 50Hz/60Hz |
| Phase Regulation Mode |
Regulation on each phases synchronous |
| Bypass System | Manual bypass |
| Response Time | ≤1s |
| Efficiency | ≥98% |
| Overload Capacity | 2 times of rated output current, last for 1 minute |
| Duty Cycle | Continuous |
| Winding Material |
Adjusting transformer: copper Compensation transformer: aluminum |
| Insulation Class | F |
| Ambient Temperature | -15 to +45°C |
| Cooling Type | AA or FA |
| Altitude | ≤5000m |
| Relative Humidity | 0-95% (Non-condensing) |
| Insulation Resistance | ≥2MΩ |
| Withstand Voltage Strength | No damage at 2.5KV for 1 minute |
| Wave Distortion | Nil |
| Acoustic Noise | ≤50dBA |
| Display Panel | LED digital display for input voltage, output voltage and output current |
| Protections | Input Circuit Breaker, Over Voltage, Under Voltage, Short Circuit, Overload, etc |
| Enclosure Color | White, RAL7032, black, etc |
| IP Rating | IP20 for indoor/IP54 for outdoor, etc |
| Special Requirements | Please advise before quotation |
Our voltage regulators are setting new standards for quality – in design, manufacturing and testing.
We have the core technologies and all main parts are manufactured by ourselves, for compensation transformer processing equipment, please click the SG Dry Type Transformers product details.
Compact design, save your installation space.
Before leaving the LINGFRAN factory, every automatic voltage stabilizer/regulator must pass a series of rigorous tests, performed with advanced equipment, on a range of measurements.
(1) Appearance – visual check.
(2) Input voltage regulation range, output voltage and output accuracy.
(3) Insulation resistance and withstand voltage strength .
(4) Protection Function: Over/under voltage, manual bypass, limit switch.
Below are part of our testing instrument.
