Quick Details
-
Dimension(L*W*H):
-
2700*1550*2350mmmm
-
Weight:
-
9.2 KG
-
Drilling Depth:
-
380
-
Model:
-
KW380
-
Description:
-
water borehole drilling machine
-
Hole diameter:
-
140-325mm
-
Drill depth:
-
380m
-
Pulling Force:
-
24 T
-
Rotation torque:
-
6500-9000N.m
-
Rotation Speed:
-
66-135r/min
-
Working Pressure:
-
1.7-3.4Mpa
-
Equipped Capacitor:
-
96kw
-
Drill pipe diameter:
-
89 102mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAISHAN
-
Voltage:
-
Diesel engine
-
Dimension(L*W*H):
-
2700*1550*2350mmmm
-
Weight:
-
9.2 KG
-
Drilling Depth:
-
380
-
Model:
-
KW380
-
Description:
-
water borehole drilling machine
-
Hole diameter:
-
140-325mm
-
Drill depth:
-
380m
-
Pulling Force:
-
24 T
-
Rotation torque:
-
6500-9000N.m
-
Rotation Speed:
-
66-135r/min
-
Working Pressure:
-
1.7-3.4Mpa
-
Equipped Capacitor:
-
96kw
-
Drill pipe diameter:
-
89 102mm
Products Description

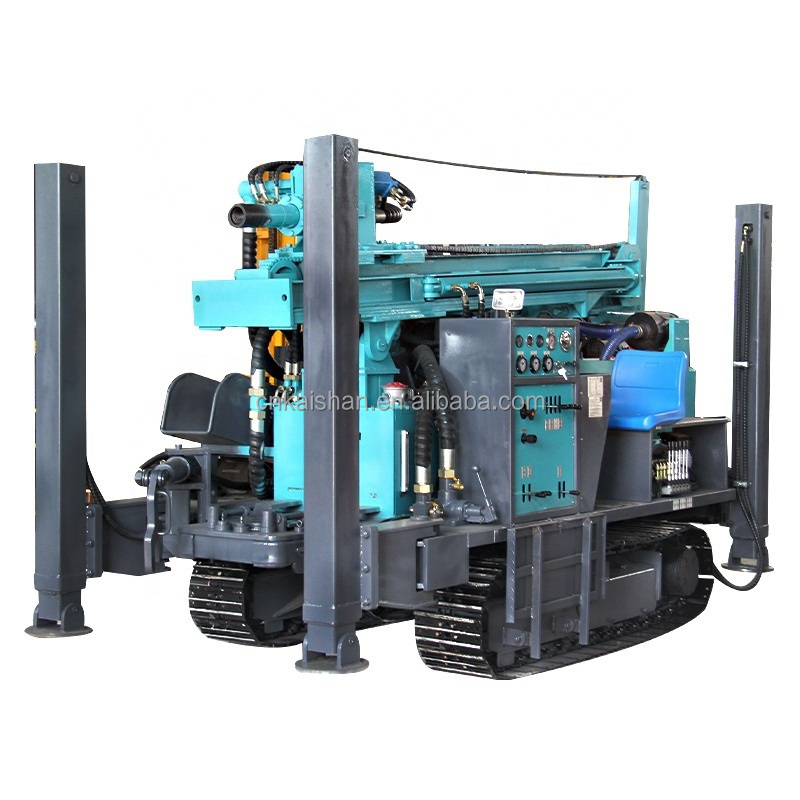

KW Series multi-function type geothermal well drilling machine is a lightweight, high efficiency, multifunctional drilling rig. KW drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
Product Paramenters
|
Model
|
KW380
|
|
Drilling depth
|
380m
|
|
Dia.hole
|
φ140-325mm
|
|
Advance Length one time
|
6.6m
|
|
Working pressure
|
1.7-3.4MPa
|
|
Air consumption
|
17-36m³/min
|
|
Length of rod
|
1.5m,2m,3m,6m
|
|
Dia. Of rod
|
φ89,φ102
|
|
Lifting power
|
24T
|
|
Rotation torque
|
6500-9000N.m
|
|
Rotation Speed
|
66-135r/min
|
|
Diesel Engine
|
Yuchai
|
|
Engine Power
|
96Kw/2200rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
9200kgs
|
|
Dimension
|
5950*2100*2550mm
|
|
Application
|
Complicated geological conditions:Rock,Mud,Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
|
|
Dth Hammer
|
4",5",6",8" Drill hammer or CIR110,
|
|
Bit
|
Φ140-325mm
|
|
ecommended Air Compressor
|
KSZJ 29/23
|
Application
Works with mud pump
Works with air compressor
