Quick Details
-
Voltage:
-
220V
-
Current:
-
500A(Max)
-
Rated Capacity:
-
1kva
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
1000x1000x1650mm
-
Use:
-
circular welding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Other
-
color:
-
blue
-
warranty:
-
12 months
-
Weight:
-
500kg
-
After-sales Service 1 Provided:
-
Free spare parts
-
After-sales Service 2 Provided:
-
Field installation, commissioning and training
-
After-sales Service 3 Provided:
-
Field maintenance and repair service
-
After-sales Service 4 Provided:
-
Online support
-
Certification:
-
CE/ISO9001
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Hanyan Technology
-
Weight (KG):
-
30
-
Voltage:
-
220V
-
Current:
-
500A(Max)
-
Rated Capacity:
-
1kva
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
1000x1000x1650mm
-
Use:
-
circular welding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Other
-
color:
-
blue
-
warranty:
-
12 months
-
Weight:
-
500kg
-
After-sales Service 1 Provided:
-
Free spare parts
-
After-sales Service 2 Provided:
-
Field installation, commissioning and training
-
After-sales Service 3 Provided:
-
Field maintenance and repair service
-
After-sales Service 4 Provided:
-
Online support
-
Certification:
-
CE/ISO9001

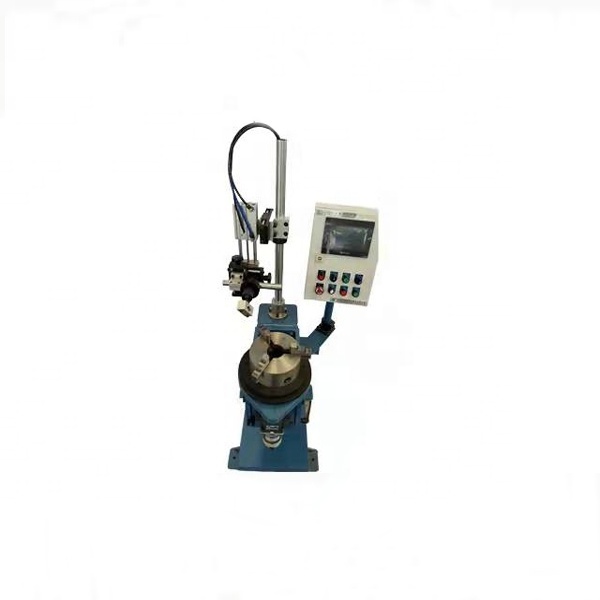

HF-300L Vertical Circumferential Seam Welding Machine
Application:
HF-300L is a kind of general welding equipment for fixing and rotating workpiece, and can be used with different welding sources, easy to constitute an automatic girth welding system with argon arc welding machine (supporting the use of wire feeder), CO 2 /MAG/MIG welding machine, plasma welding machine or other welding machines, to improve welding quality and speed, and reduce costs.
Type of Workpiece: pipes, plates, flanges, etc.
Base Material: carbon steel, stainless steel, aluminum, copper, titanium.
Components:
HF-300L consists of rotary headstock, rectangular support, pneumatic lifter, 3-D manual adjusting mechanism and centre master controller. Angle of jaw chuck is adjustable (0°/30°/45°/60°/90°), manual 3-jaw chuck on headstock is used to meet more workpiece, advanced PLC control system, humanized operation interface, high degree automation, stable and reliable performance. It’s a combined structure with good mobility, and easy installation.
Welding Process:
Welding Mode: torch fixed, workpiece rotating, weld automatically.
Welding Method: TIG (supporting the use of wire feeder)/MIG/MAG/PAW.
Technical Parameters
|
Model |
HF-300L |
|
Control power supply |
Single phase 50Hz AC 200V |
|
Welding power supply |
Three phase 50Hz AC 380V |
|
Workpiece thickness |
According to the shape of opening |
|
workpiece diameter |
200mm ≥φ≥ 10mm |
|
Headstock rotating speed |
1 ~ 10 r/ min |
|
Workpiece rotation diameter |
≤ 600mm |
|
Spindle bore |
≤ 50mm |
|
Spindle output torque |
≤ 72N·m |
|
Workpiece weight |
≤ 50Kg |
|
Torch lifting height |
100mm |
|
Faceplate height |
900 mm (horizontal position) |
|
Jaw chuck adjustable angle |
0 ° /30 ° /45 ° /60 ° /90 ° |
WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!!!
In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
In our factory:
