Quick Details
-
bore depth (m):
-
≥20m
-
pressure (mpa):
-
0.5-0.7bar
-
air consumption (m3/min):
-
≥6m3/min
-
rotating speed (r/min):
-
0-62rpm
-
Hammer:
-
QCZ90
-
color:
-
customised
-
Name:
-
Small mobile electric bore hole rock drilling rig for blasting
-
Keyword:
-
mobile electric bore hole rock drilling rig for blasting
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
bore diameter (mm):
-
80-100mm
-
bore depth (m):
-
≥20m
-
pressure (mpa):
-
0.5-0.7bar
-
air consumption (m3/min):
-
≥6m3/min
-
rotating speed (r/min):
-
0-62rpm
-
Hammer:
-
QCZ90
-
color:
-
customised
-
Name:
-
Small mobile electric bore hole rock drilling rig for blasting
-
Keyword:
-
mobile electric bore hole rock drilling rig for blasting
-
Certification:
-
ISO CE

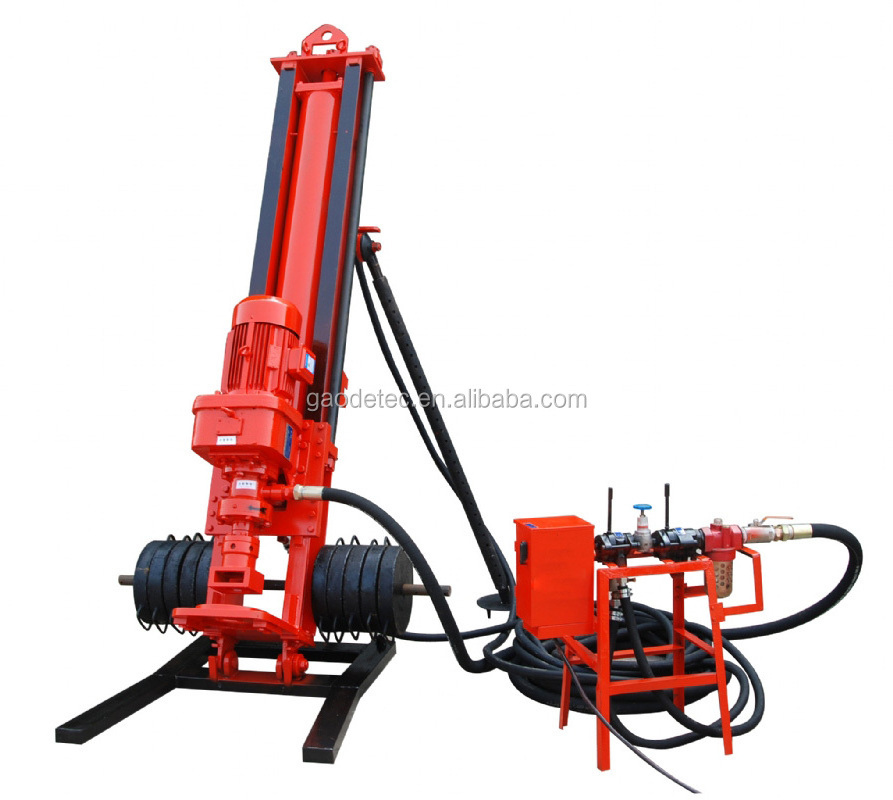

Small mobile electric bore hole rock drilling rig for blasting
Description:
The GD120 small mobile electric bore hole rock drilling rig is ultimate combination of performance and economy. The DTH system delivers the highest-possible drilling performance at low running cost.
Rock drilling rig used in variety heavy industry. It's used to drill blasting holes like small to medium mining projects, national defense projects, irrigation projects, road construction and etc. Our down-the-hole (DTH) drill is ideal equipment for down-hole blasting.
The rock borehole rock drilling rig can drill both horizontal and vertical, easy to install and disassemble in working site, conventent to move.
Technical Parameters:
| Model | GD120 |
| Bore diameter (mm) | 80-100 |
| Bore depth (m) | ≥20m |
| Rock Hardness | f=6-20 |
| Pressure (mpa) | 0.5-0.7 |
| Air Consumption (m³/min) | ≥6 |
| Rotating Speed (r/min) | 0-62 |
| Hammer | QCZ90 |
| Max. lifting force (N) | 9600 |
| Motor power(kw) | 5.5 |
| Bit | Φ90(76-100) |
| Rod(mm) | Φ60*1000 |
| Drilling components | Standard(option) |
We also have pneumatic DTH drilling rig. For more deteils, please contact us.
Advantages:
-
D rill bits are made of alloy steel.
-
The impact energy loss does n ’ t increase with the lengthening of the drill rod, and can drill large deep hole.
- Used ordinary motor as the turning power, which is economical, efficient and energy-saving.
- The cycloidal pinwheel reducer has a large turning torque and high rock drilling efficiency.
- Novel overload protection makes the rig run stably and reliably.
- Three kinds of support structures: single top, double top and support type, which can be adapted to any geological landform.
Drill parts:
For soil:
For hard rock:
Application:
GD series rock bore hole rock blasting drilling rigs are
Packaging:
In order to protect rock bore hole drilling rig and avoid damage during transport, our rock drill rig adopts plwood box package. And we also provide customized package of our bore hole drilling machine .
Factory:
Our company has specialized in rock borehole drilling rig for more than 10 years. We can provide nice quality drilling machine with competitive price to you. If yoy are interested in our rock drilling machine, please feel free to contact us.
FAQ:
The information you may like to know before order:
1.Payment terms:
T/T 50% in advance ,the balance should be paid within 5days against the B/L date
2.Delivery time:
Within 20 days after receiving your advanced payment
3.Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4.Packaging:
1)Outside package:Standard export wooden cases
2)Inner package:Stretch film
5. HS CODE:
Air compressor:8414809090
Drill rig: 8430390000
