Quick Details
-
Brand Name:
-
Synid
-
Model Number:
-
Type 204
-
color:
-
Dark brown or Dark red
-
Temperature of heating up:
-
150C - 180C
-
Time of heating up:
-
25 - 40mins
-
OEM service:
-
YES
Quick Details
-
CAS No.:
-
70131-67-8
-
Other Names:
-
brake shoe glue
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Synid
-
Model Number:
-
Type 204
-
color:
-
Dark brown or Dark red
-
Temperature of heating up:
-
150C - 180C
-
Time of heating up:
-
25 - 40mins
-
OEM service:
-
YES

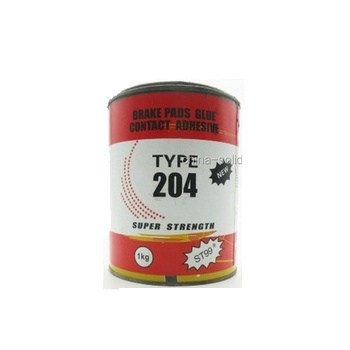

Brake shoes/lining adhesive is a synthetic resin based, special for bonding friction lining material in Brake shoes and clutches. The product has exceptionally high strength to withstand very high shear loads prevalent between liner and brake shoes / clutch plates. The strength is returned at very high temperature so that the brake lining is bonded firmly even under severe working conditions.
Stays permanently fastness after curing
Pretty strong adhesion on friction materials and brake shoe
Resistance to aging, heat and friction
Color: Dark Red/Dark Brown
1 The glue is heat curing, after applied, must be given heat to 150°C - 180°C ,and keep the heating 25-45 mins. Not Need to mix with any diluents or solvent.
2 Can brush, also can spray after attenuated.
3 The application adhesive could be achieved after drying for 2-3 hours at the room temperature of 25°C.
The adhesive performance is available after drying 24 hours.
|
Basis |
: Solvent |
Phenolic Resin |
|
|
Curing System |
: Heat-curing |
|
|
|
Density |
: 0.97 ± 0.04 |
g/ml |
|
|
Solid Content |
: ≥ 60 |
% |
|
|
Viscosity |
: 5500±500 |
Mpa.s |
|
|
Initial adhesion peeling strength |
: ≥ 0.85 |
Mpa |
|
|
Temperature Resistance |
: -40 ℃ ~+480 ℃ |
After curing |
|
|
Heating Temperature |
: 150 ℃ ~180 ℃ |
|
|
|
Heating Time |
: 25-40 |
Minutes |
|
|
Shelf-Life |
: 12 |
Months |
|
|
Color after Curing |
: Red |
|
|
| Description | Packing | Volume (m³) |
| 1L | 12cans/ctn | 0.022 |
| 3L | 6cans/ctn | 0.03 |
| 5KG | 4cans/ctn | 0.027 |
| 15KG | 1cans/ctn |
0.0225
|
